Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb (3) to the socket.

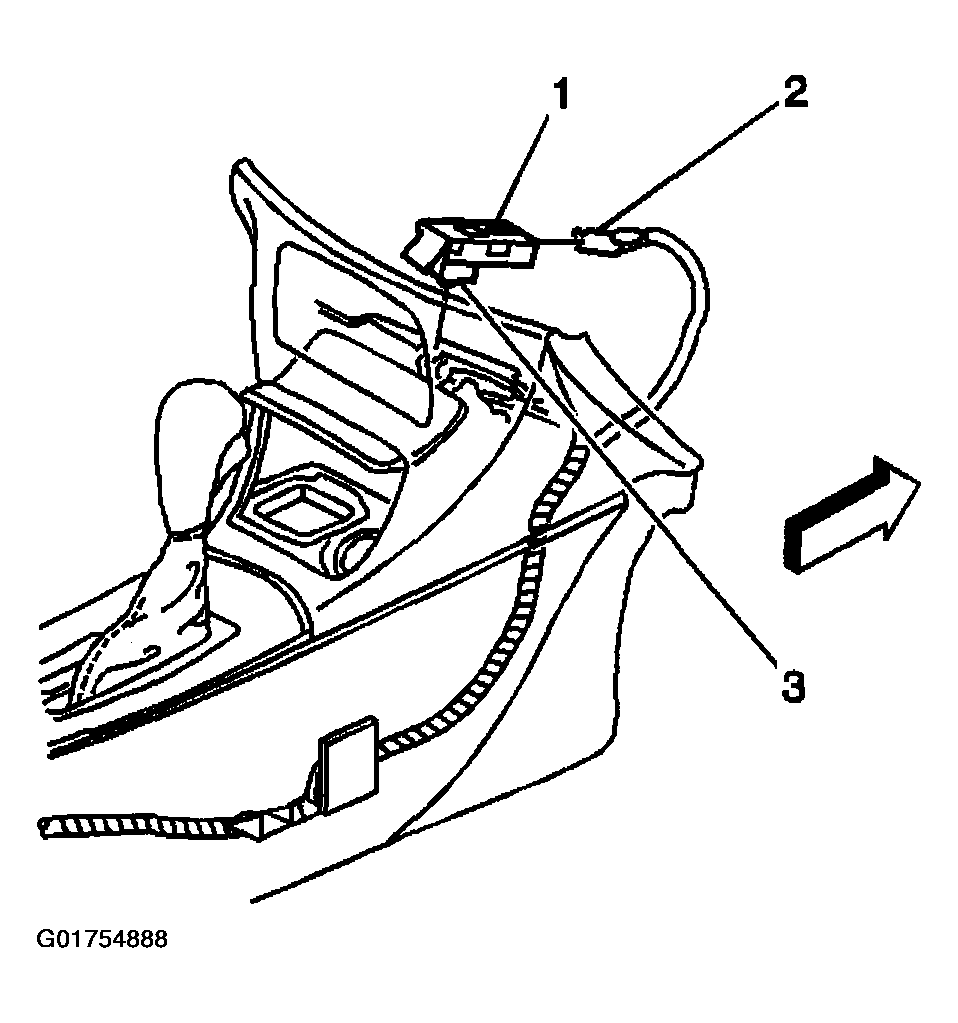

    2. Fig 1: Identifying Console Lamp Switch & Connector
    G01754888Courtesy of GENERAL MOTORS CORP.
  2. Install the lamp socket to the lamp housing, then rotate clockwise to secure.
  3. Insert one side tab of the lamp housing into position on the top of the console compartment.
  4. Press the lamp housing toward the installed side and lower the opposite side into position, the release.
  5. Check to be sure that the lamp is secure.
  6. Align the console compartment lamp switch to the top of the console compartment.
  7. Install the switch into place to secure.
  8. Connect the electrical connector (2) to the console compartment lamp switch.
  9. Position and install the front floor console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (D06) or CONSOLE REPLACEMENT - FRONT FLOOR (D55) in Instrument Panel, Gages and Console.
