Removal & Installation: Starter: Installation

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the starter. Install the starter to the engine bolts. Tighten the starter bolts to specifications. See TORQUE SPECIFICATIONS .

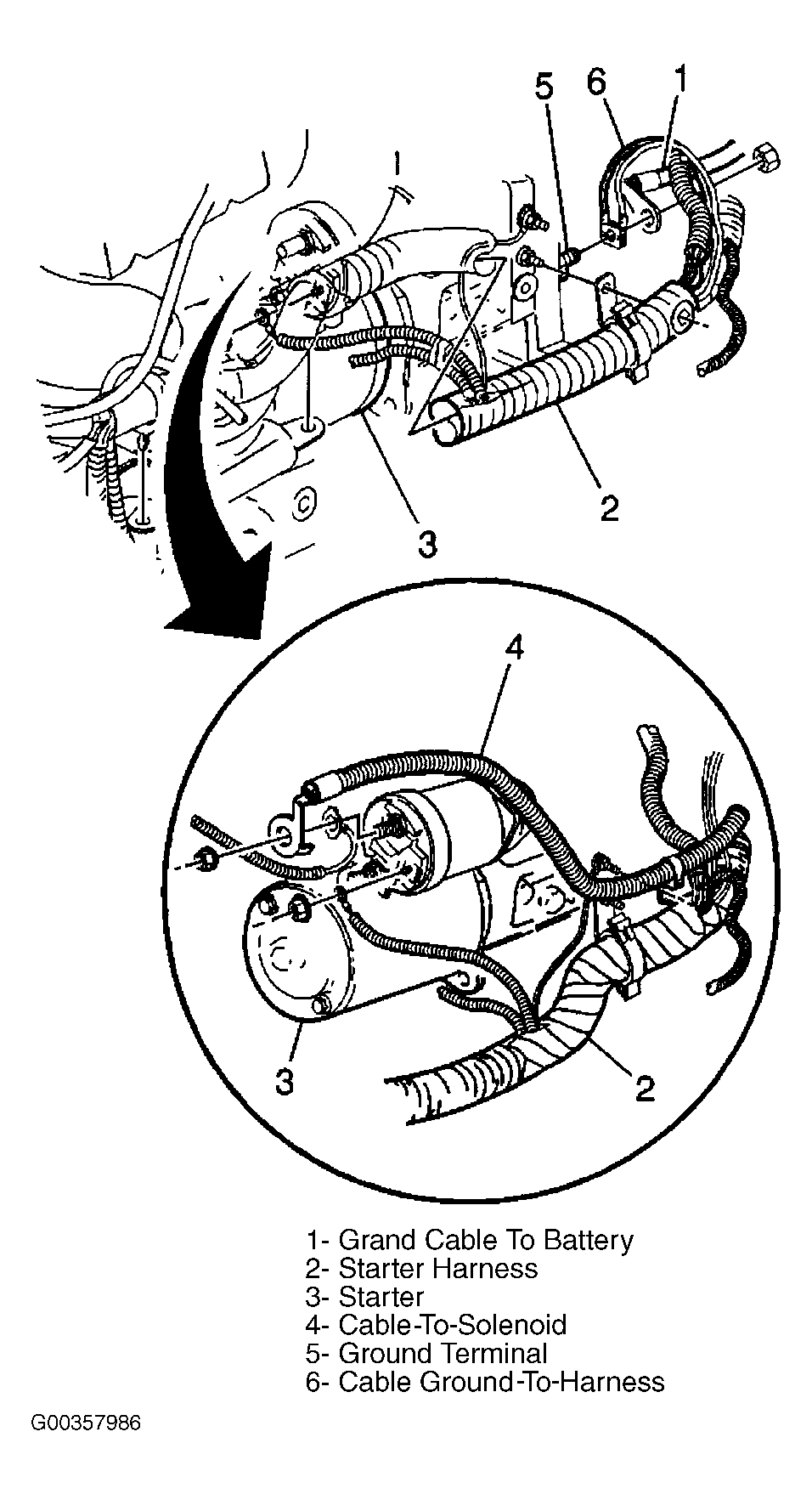

  2. Install flywheel inspection shield. Connect the leads to the starter. See Figure. Tighten the cable to solenoid nut to specifications. See TORQUE SPECIFICATIONS .
  3. Install the lower closeout panel. Lower the vehicle. Connect the negative battery cable. Tighten battery cable to specifications. See TORQUE SPECIFICATIONS .
