Outside Rearview Mirror Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

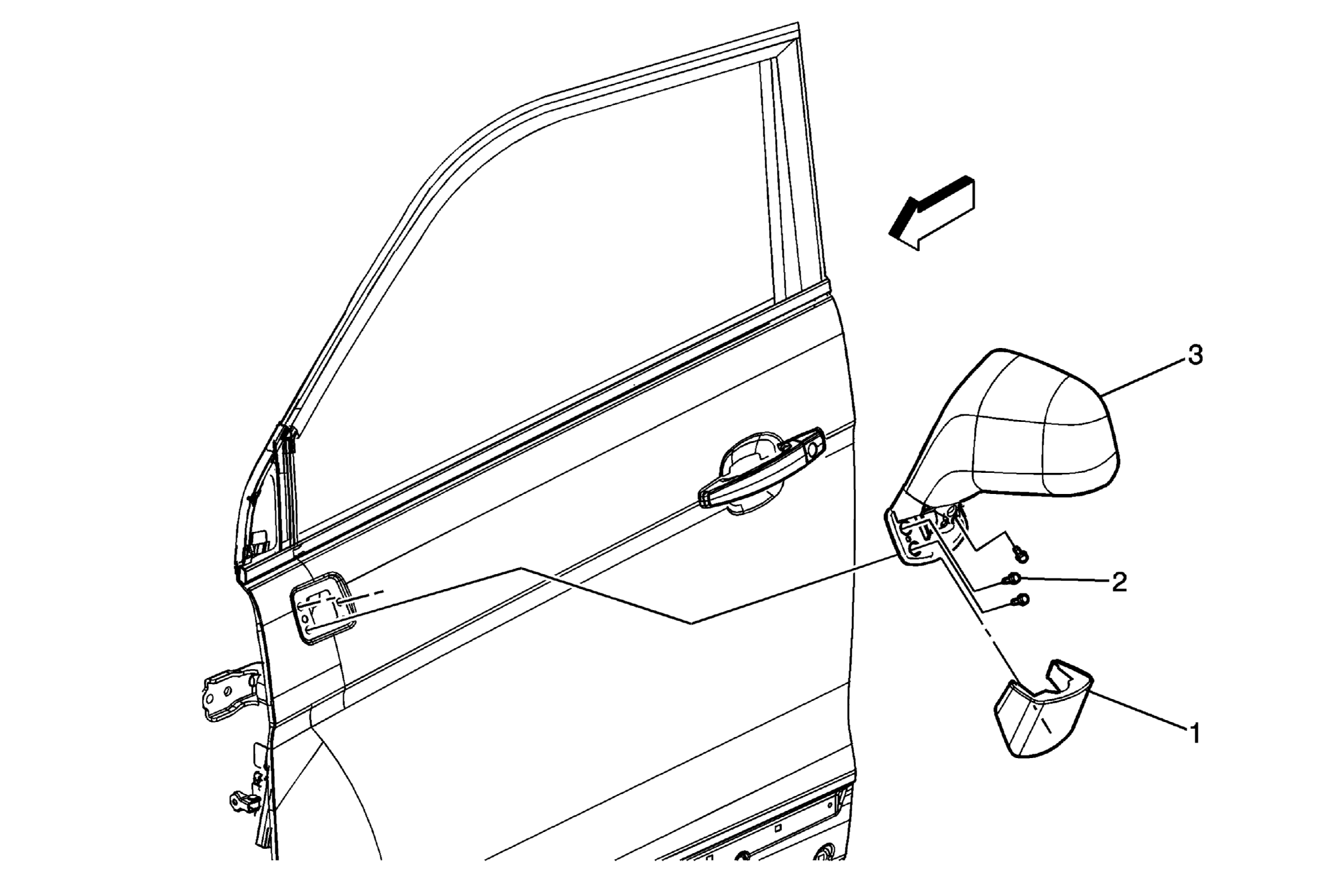

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement . |
|
| 1 | Outside Rearview Mirror Cover Procedure: Use a suitable tool to remove the mirror base cover. |
| 2 | Outside Rearview Mirror Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Procedure: Disconnect the electrical connector. Tighten: 10 N.m (89 lb in). |
| 3 | Outside Rearview Mirror Procedure: Inspect the door for proper operation before installing the door trim panel. |
