Stabilizer Shaft Insulator Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

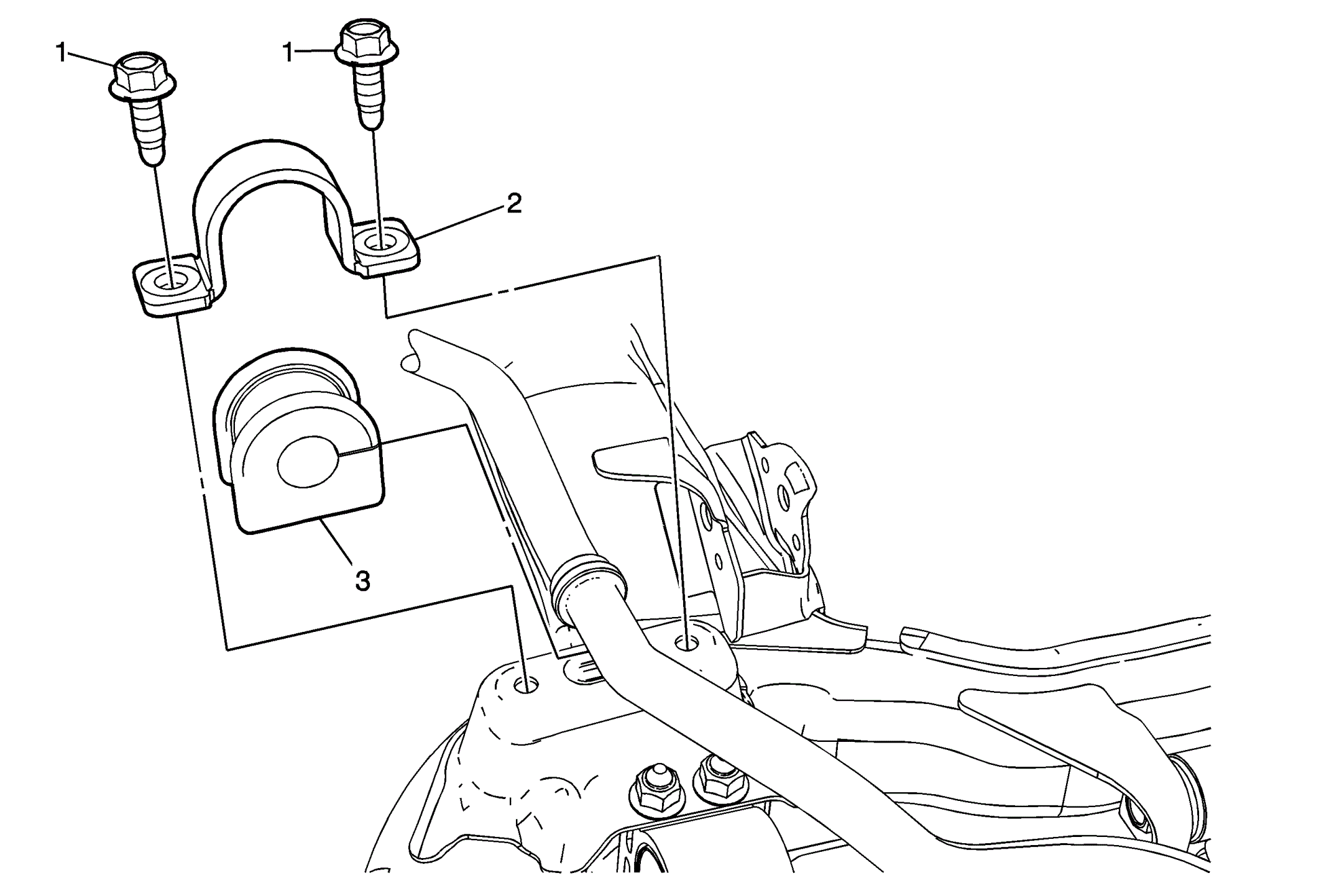

Fig 1: View Of Stabilizer Shaft Insulator, Clamp & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front wheel and tire assemblies. Refer to Tire and Wheel Removal and Installation .
1	Stabilizer Shaft Insulator Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 50 N.m (37 lb ft).
2	Stabilizer Shaft Insulator Clamp (Qty: 2)
3	Stabilizer Shaft Insulator (Qty: 2)
