Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator outlet hose.
  2. Connect the radiator outlet hose to the radiator.
  3. Reposition the hose clamp at the radiator to secure the hose using the J 38185.
  4. Connect the radiator outlet hose to the water pump housing.
  5. Reposition the hose clamp at the water pump housing to secure the hose using the J 38185.
  6. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .

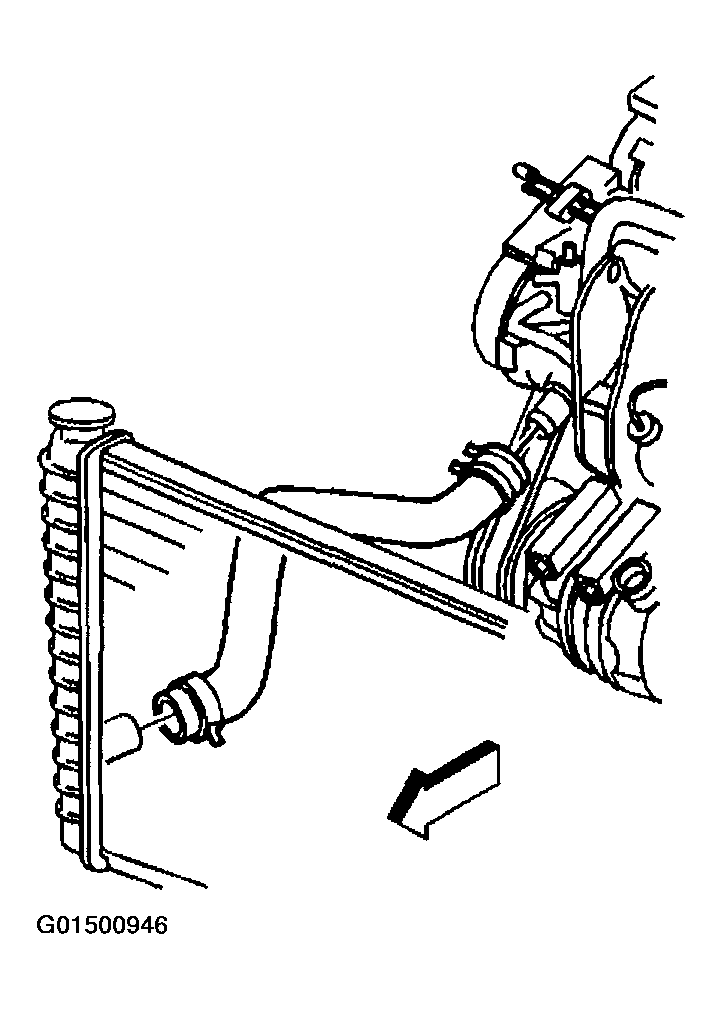

Fig 1: Installing Radiator Outlet Hose
G01500946Courtesy of GENERAL MOTORS CORP.
