Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator inlet hose.
  2. Connect the radiator inlet hose to the radiator.
  3. Reposition the hose clamp at the radiator to secure the hose using the J 38185.
  4. Connect the radiator inlet hose to the thermostat housing.
  5. Reposition the hose clamp at the thermostat housing to secure the hose using the J 38185.
  6. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .

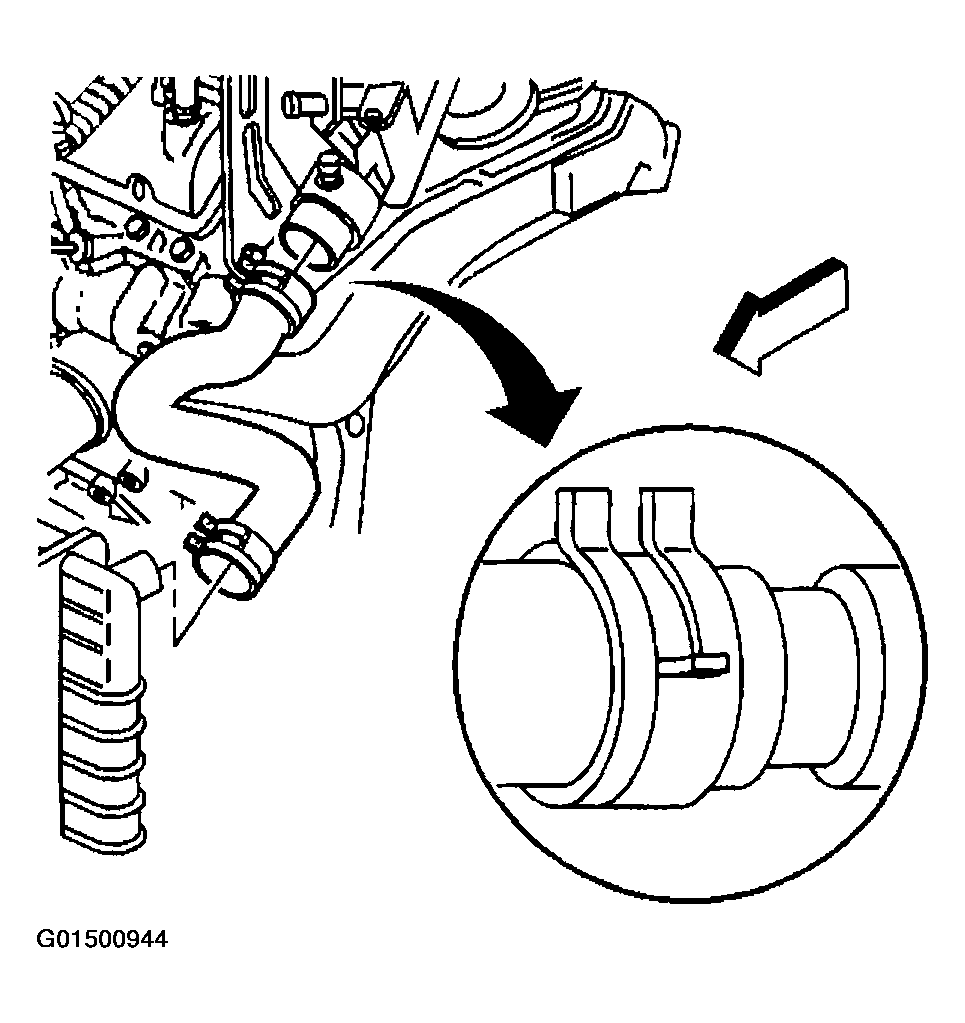

Fig 1: Connecting Radiator Inlet Hose From Thermostat Housing
G01500944Courtesy of GENERAL MOTORS CORP.
