Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: An electric fan under the hood can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan.

CAUTION: To help avoid personal injury or damage to the vehicle, a bent, cracked, or damaged fan blade or housing should always be replaced.

Important: If abnormal noise or vibration is felt from the engine compartment, inspect and clean any foreign material from the cooling fan blades.

Remove the cooling fan assembly including the shroud. Refer to COOLING FAN REPLACEMENT - ELECTRIC .
Important: Turn the cooling fan nuts clockwise to loosen.
Remove the cooling fan nuts.
Remove the cooling fans from the shroud.

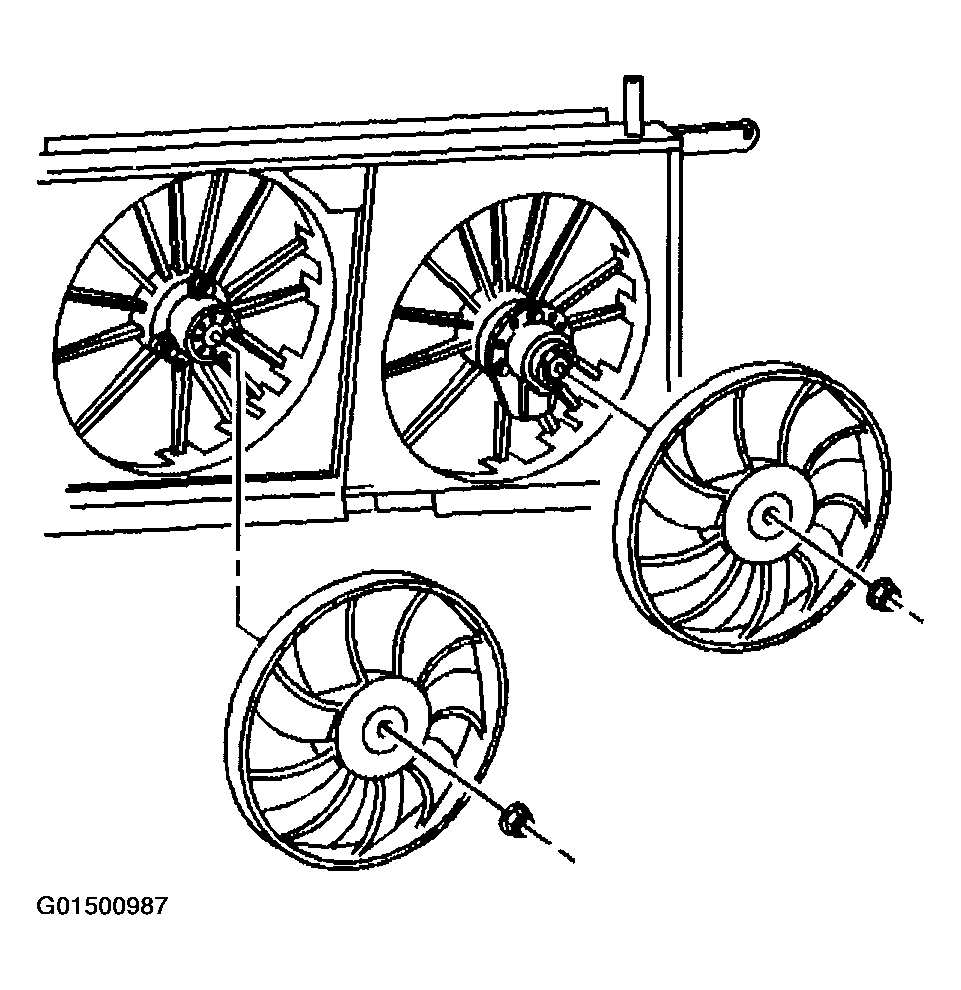

Fig 1: Removing Cooling Fan Nuts And Shroud
Courtesy of GENERAL MOTORS CORP.
Disconnect the fan motor electrical connectors.
Remove the fan motor screws.
Remove the fan motors from the cooling fan shroud.

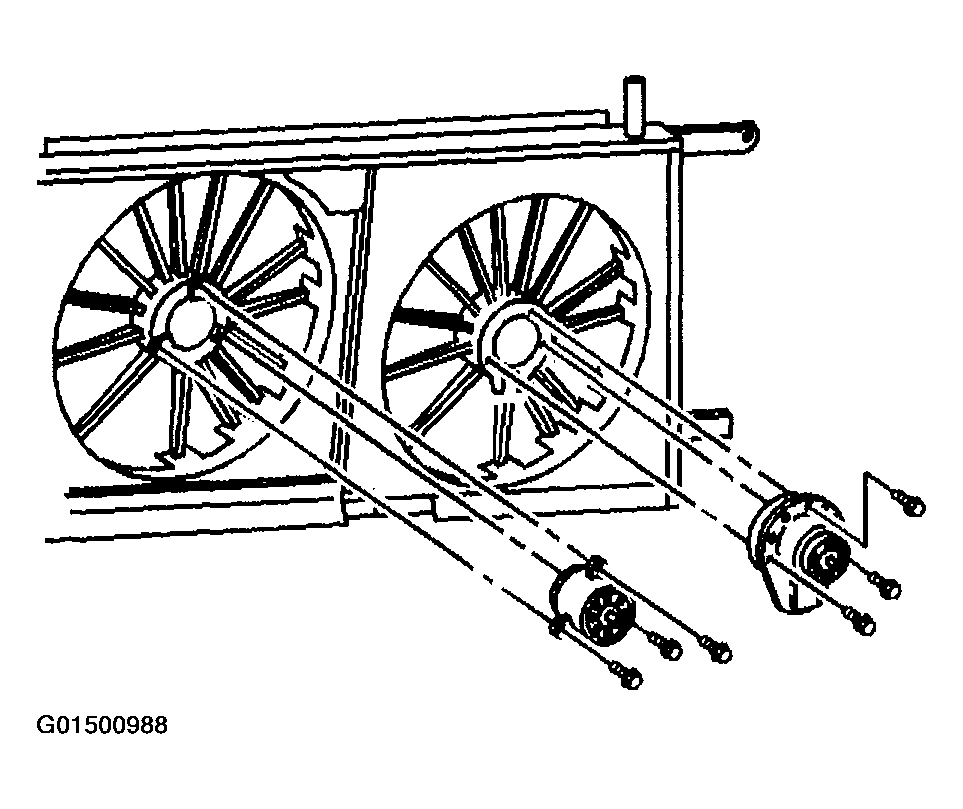

Fig 2: Removing Fan Motor And Screws
Courtesy of GENERAL MOTORS CORP.
Remove the heat shields from the cooling fan shroud.

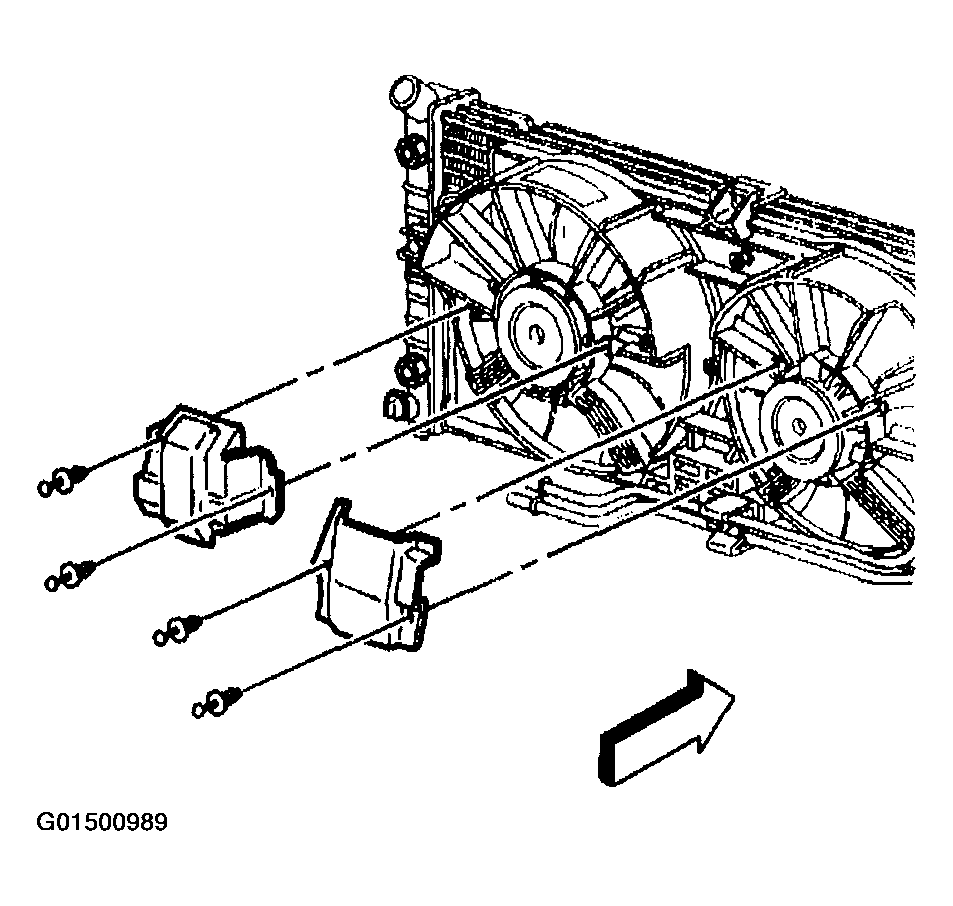

Fig 3: Removing Heat Shields From Cooling Fan Shroud

Courtesy of GENERAL MOTORS CORP.
