Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the socket.

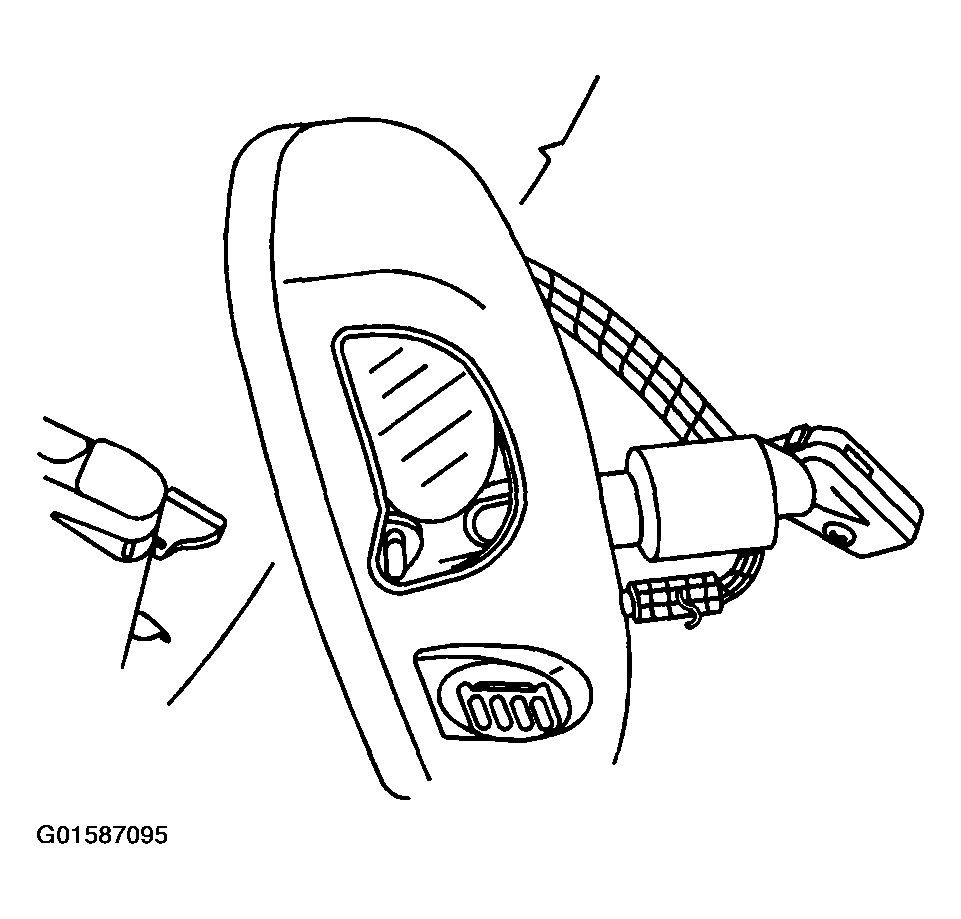

    Fig 1: View Of Rearview Mirror Lamp Bulb
    G01587095Courtesy of GENERAL MOTORS CORP.
  2. Align the lamp lens to the rearview mirror. Press the lens into place.

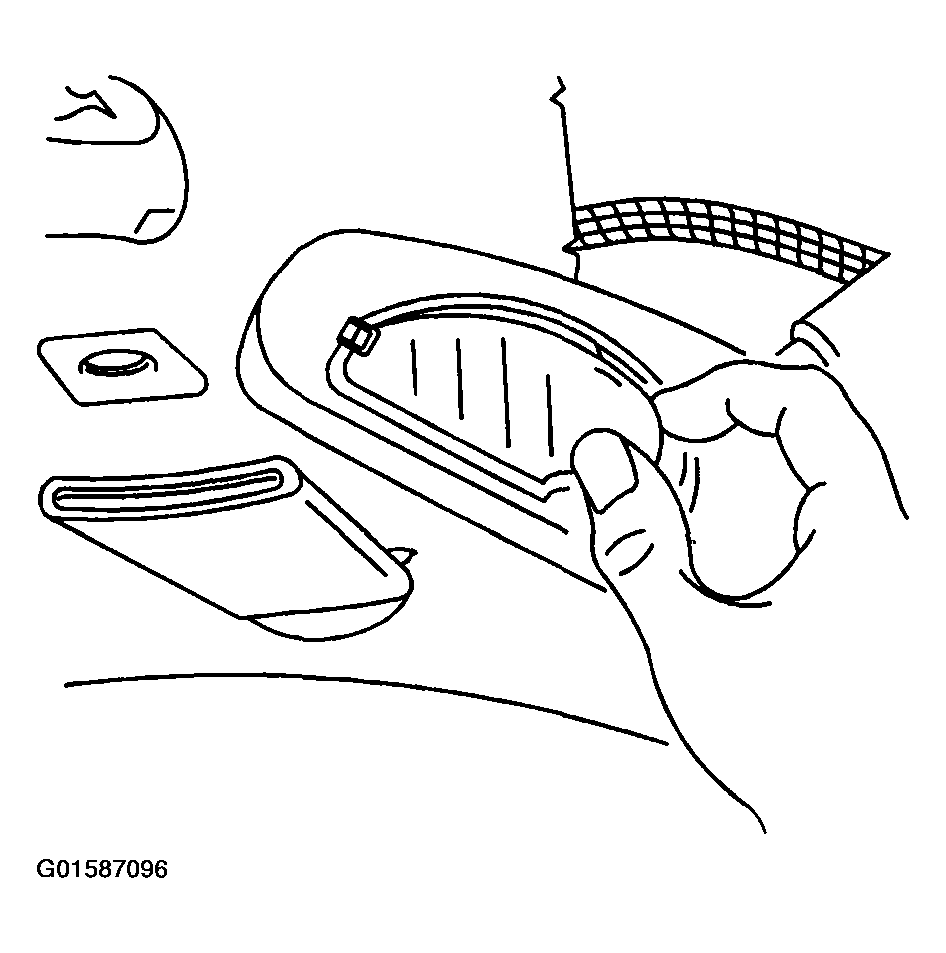

    Fig 2: Align Lamp Lens To Rear View Mirror
    G01587096Courtesy of GENERAL MOTORS CORP.
