Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To prevent internal damage to the flexible coupling of the catalytic converter assembly, the converter must be supported. The vertical movement at the rear of the catalytic converter assembly must not exceed 6 degrees up or down.

Install and support the exhaust muffler with exhaust pipe and tail pipe.
Install the exhaust hanger insulators to the exhaust muffler with exhaust pipe and tail pipe.

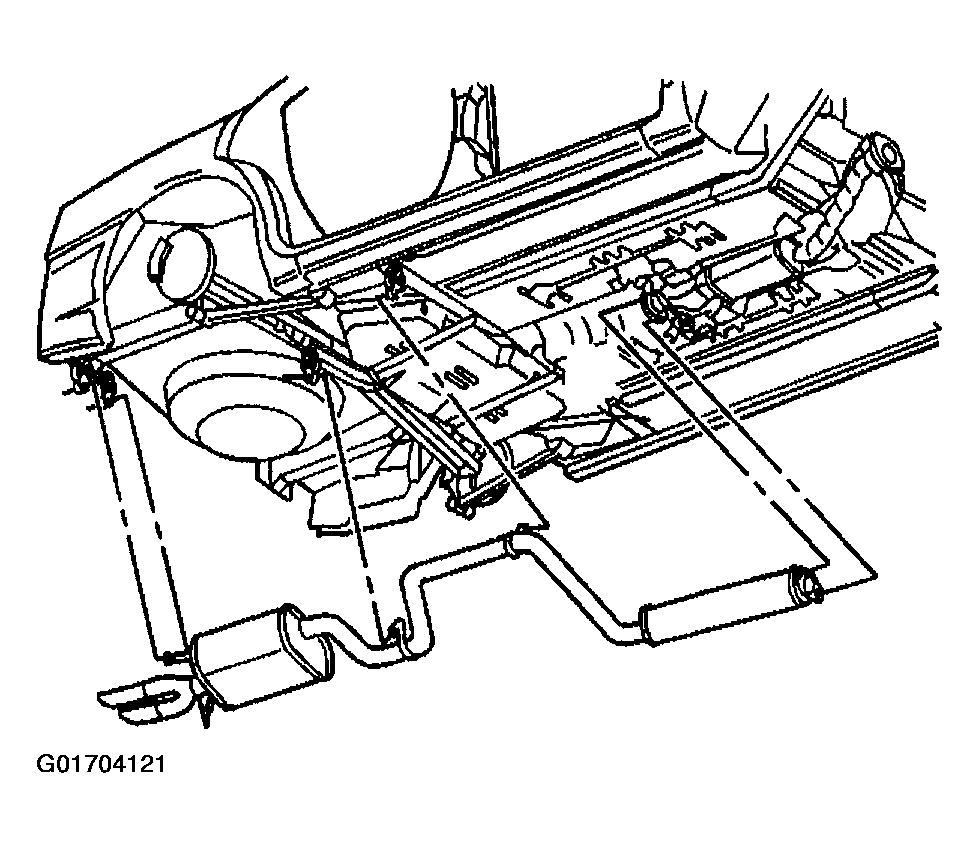

Fig 1: Exhaust Hanger Insulators, Muffler, Pipe & Tail Pipe
Courtesy of GENERAL MOTORS CORP.
Install the catalytic converter gasket.
NOTE: Refer to FASTENER NOTICE .
Install the catalytic converter bolts.
Tighten

Tighten the catalytic converter bolts to 45 N.m (33 lb ft).
Remove the support from the exhaust system.
Inspect the exhaust system for leaks and underbody contact.
Lower the vehicle.

Fig 2: Catalytic Converter Gasket & Bolts
Courtesy of GENERAL MOTORS CORP.
