Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the exhaust pipe rear hanger insulators to the muffler and the rear hanger brackets.

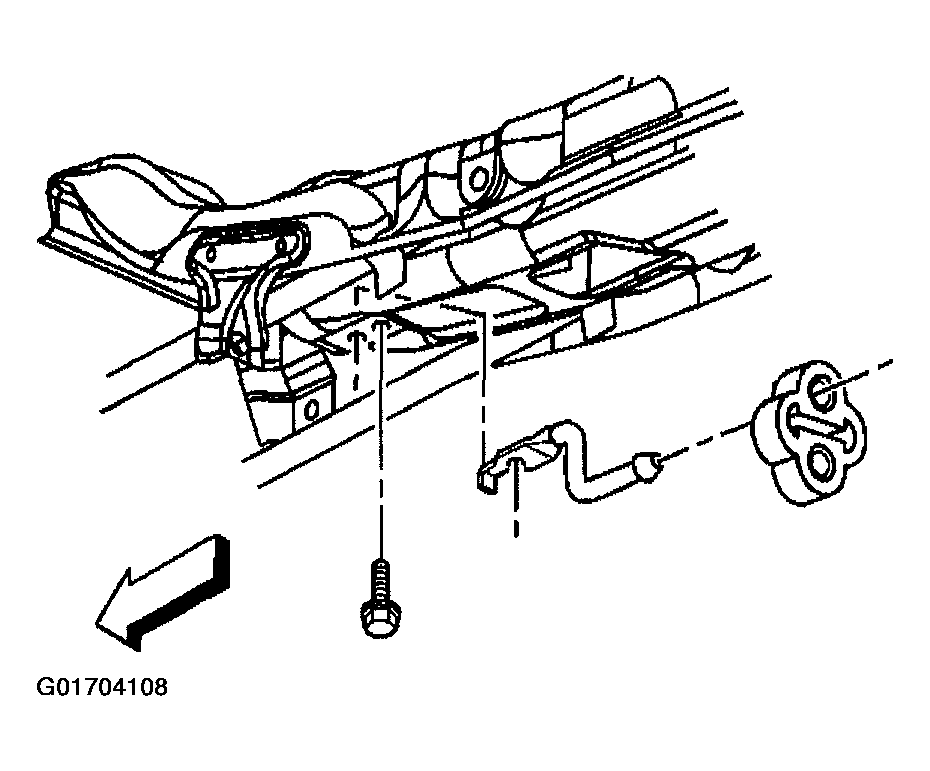

Fig 1: Exhaust Pipe Rear Hanger Insulators & Brackets
Courtesy of GENERAL MOTORS CORP.
Install the exhaust pipe hanger insulator to the exhaust pipe and the hanger bracket.

Fig 2: Exhaust Pipe Hanger Insulator
Courtesy of GENERAL MOTORS CORP.
Remove the support from the exhaust system.
Inspect the exhaust system for underbody contact.
Lower the vehicle.
