Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ball stud to the lower control arm.
    Fig 1: Installing Ball Stud
    G01673320Courtesy of GENERAL MOTORS CORP.
  2. Install the NEW ball stud bolts facing down, away from the ball stud.
    NOTE: Refer to FASTENER NOTICE .
    IMPORTANT: This is a prevailing torque type fastener.

    This fastener may be reused ONLY if:

    • The fastener and its counterpart are clean and free from rust.
    • The fastener develops 2 N.m (18 lb in) of torque (drag) against its counterpart prior to the fastener seating.

    If the fastener does not meet these criteria, REPLACE the fastener.

  3. Install the NEW ball stud nuts.

    Tighten

    Tighten the NEW ball stud nuts to 68 N.m (50 lb ft).

  4. Install the lower control arm. Refer to Lower Control Arm Replacement .

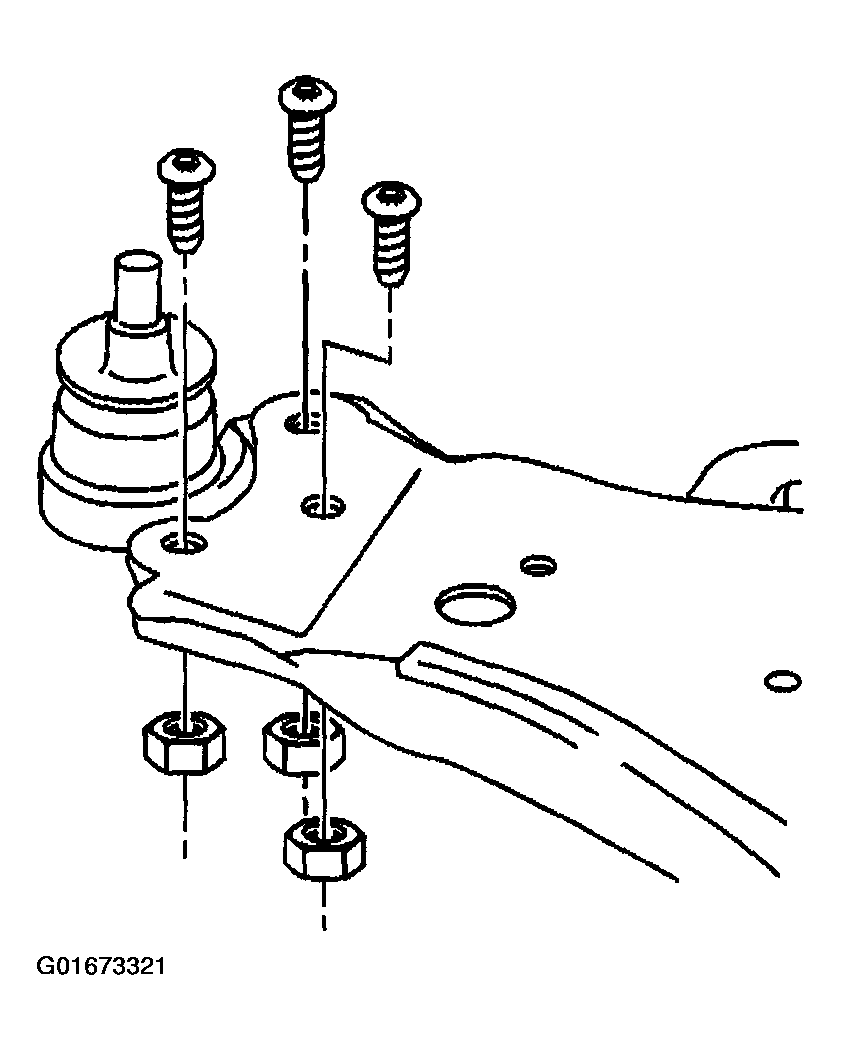

    Fig 2: Installing Ball Stud Bolts
    G01673321Courtesy of GENERAL MOTORS CORP.
