Steering Column Disassembled View

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

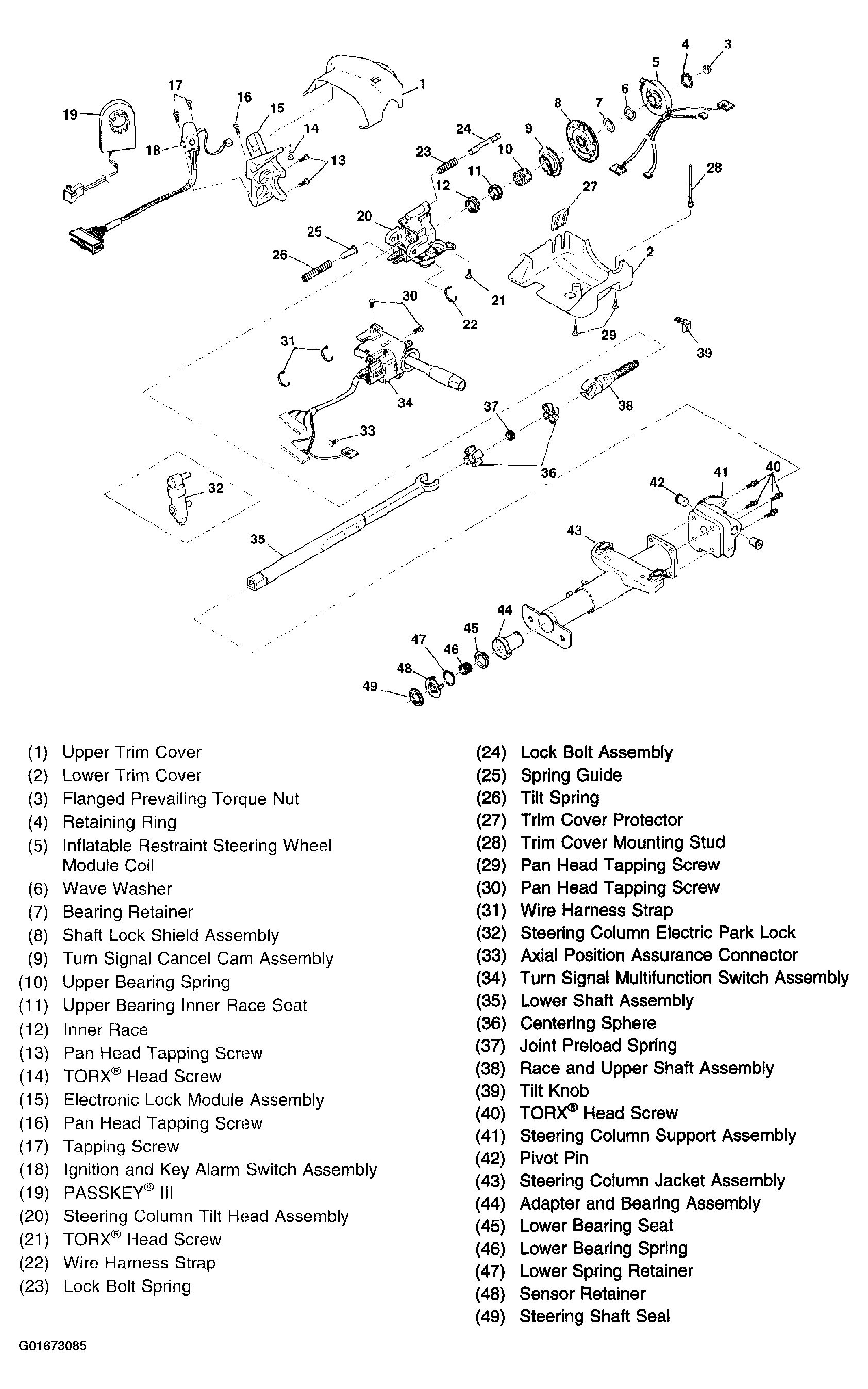

Fig 1: Tilt Steering Column, Floor Shift
G01673085Courtesy of GENERAL MOTORS CORP.
