Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the assist rods to the endgate.
    Fig 1: Assist Rod View
    GM625163Courtesy of GENERAL MOTORS CORP.
  2. Install the upper end of the assist rods to the ball joint. Press in to place until fully seated.

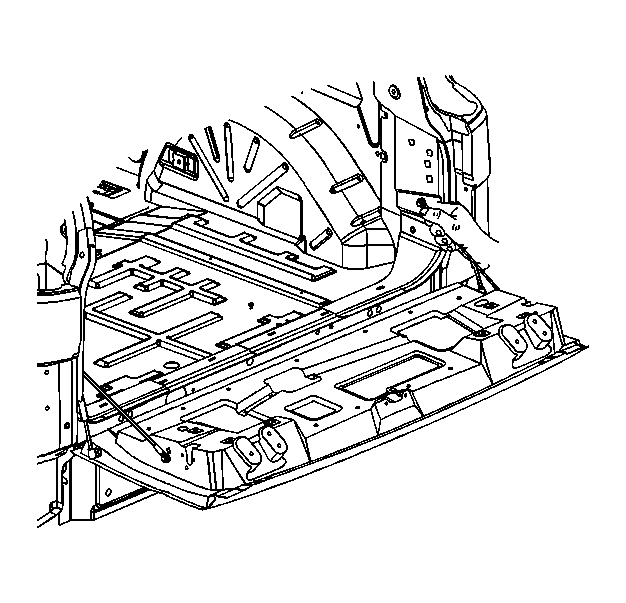

    Fig 2: Locating Upper End Of Assist Rods
    GM625166Courtesy of GENERAL MOTORS CORP.
  3. Install the lower end of the assist rods to the ball joint. Press in to until fully seated.
    4. Fig 3: Locating Lower End Of Assist Rods
    GM625164Courtesy of GENERAL MOTORS CORP.
  4. Close the endgate.
