Installation Procedure

  1. Install the electrical connections to the switch assembly.

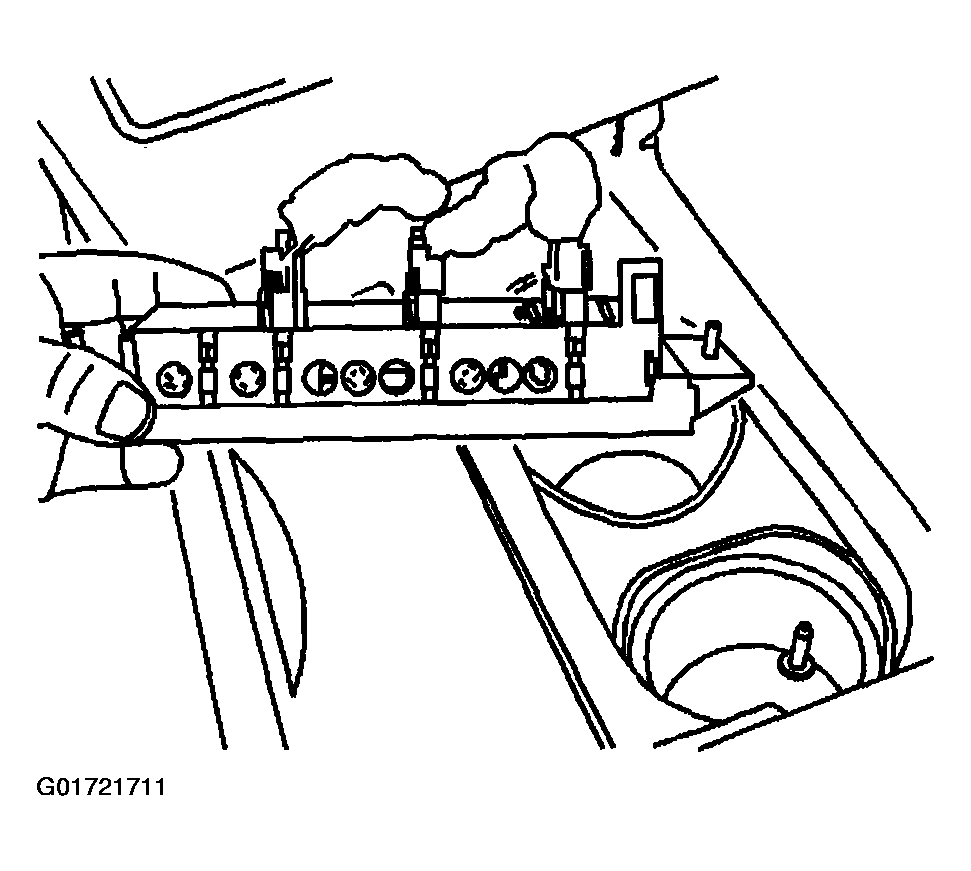

    Fig 1: Installing Switch Assembly
    G01721711Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FLEX DECOUPLER NOTICE .
  2. Install the bolts to the switch assembly of the rear object alarm module.

    Tighten

    Tighten the bolts to 2 N.m (18 in lb)

    Fig 2: View Of Switch Assembly
    G01721712Courtesy of GENERAL MOTORS CORP.
  3. Install the I/P accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory (Aztek) .

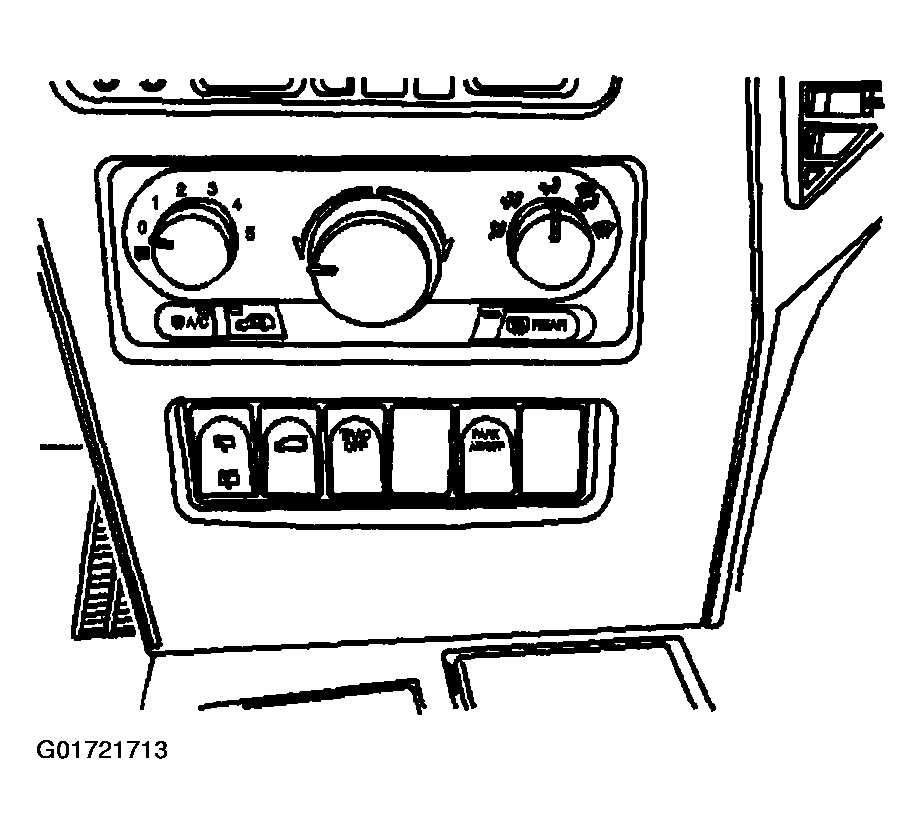

    Fig 3: View Of Instrument Panel (I/P)
    G01721713Courtesy of GENERAL MOTORS CORP.
