Outside Mirror Schematics

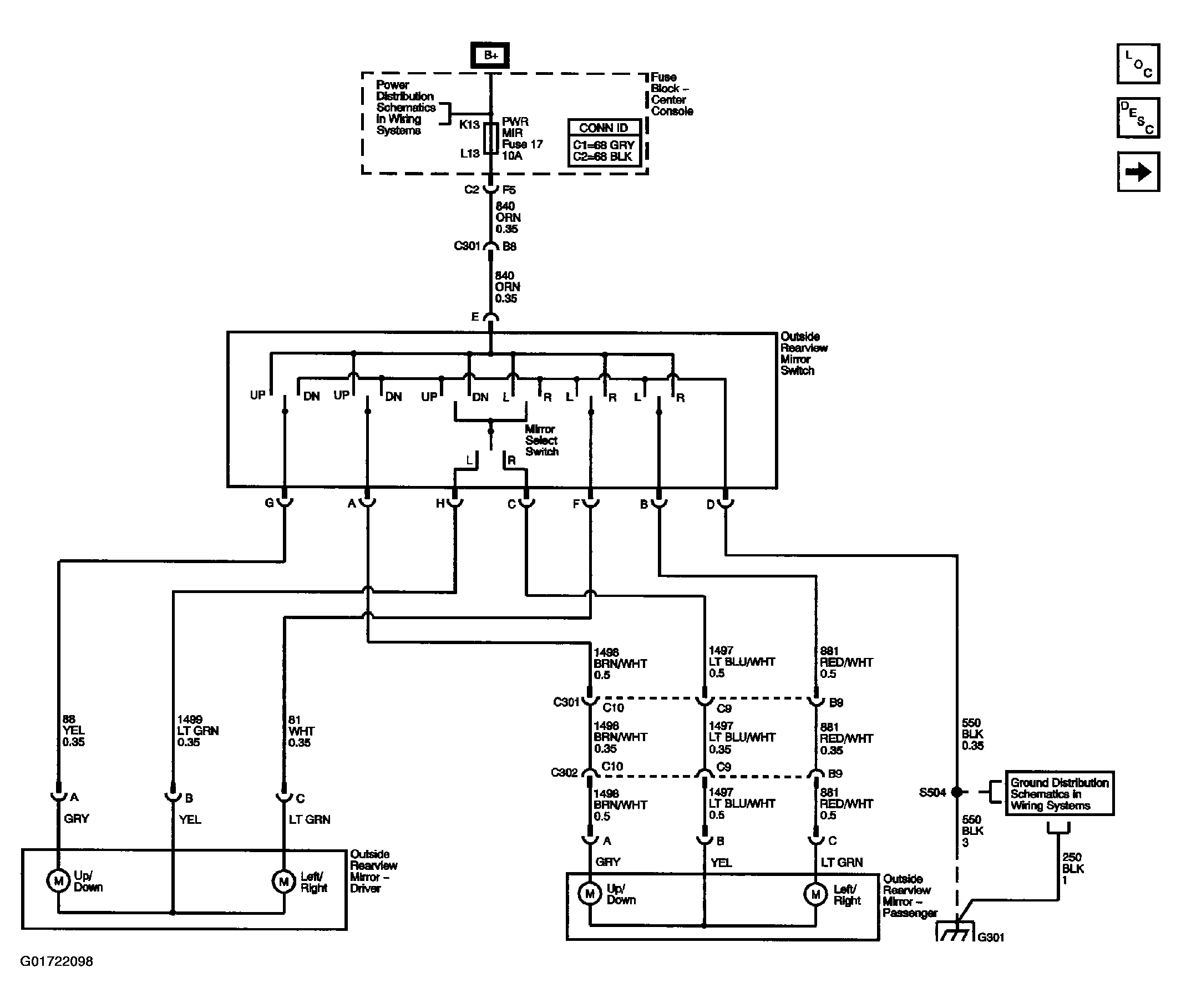

Fig 1: Outside Mirror Schematics (Base Mirrors)
G01722098Courtesy of GENERAL MOTORS CORP.

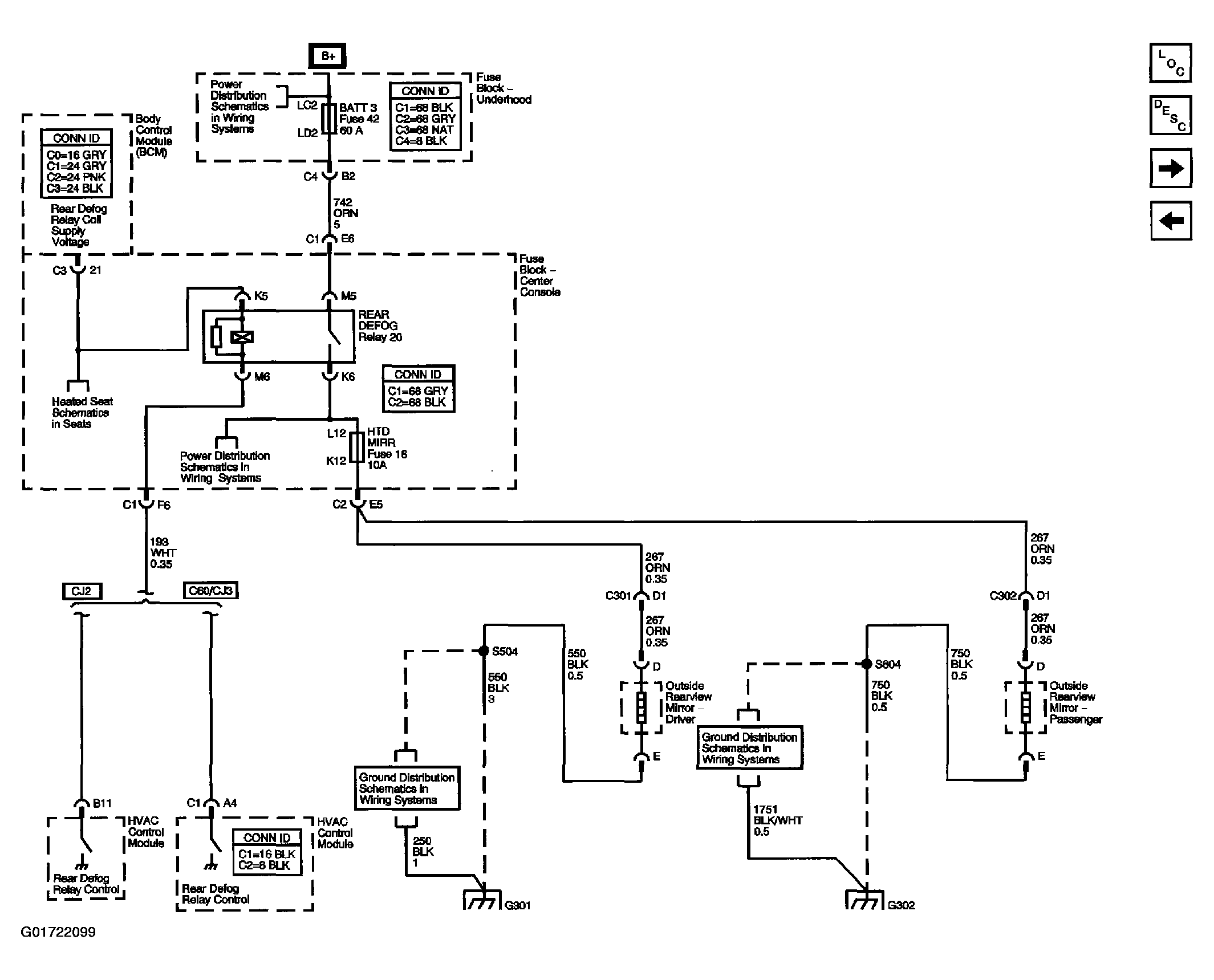

Fig 2: Outside Mirror Schematics (Heated Mirrors)
G01722099Courtesy of GENERAL MOTORS CORP.

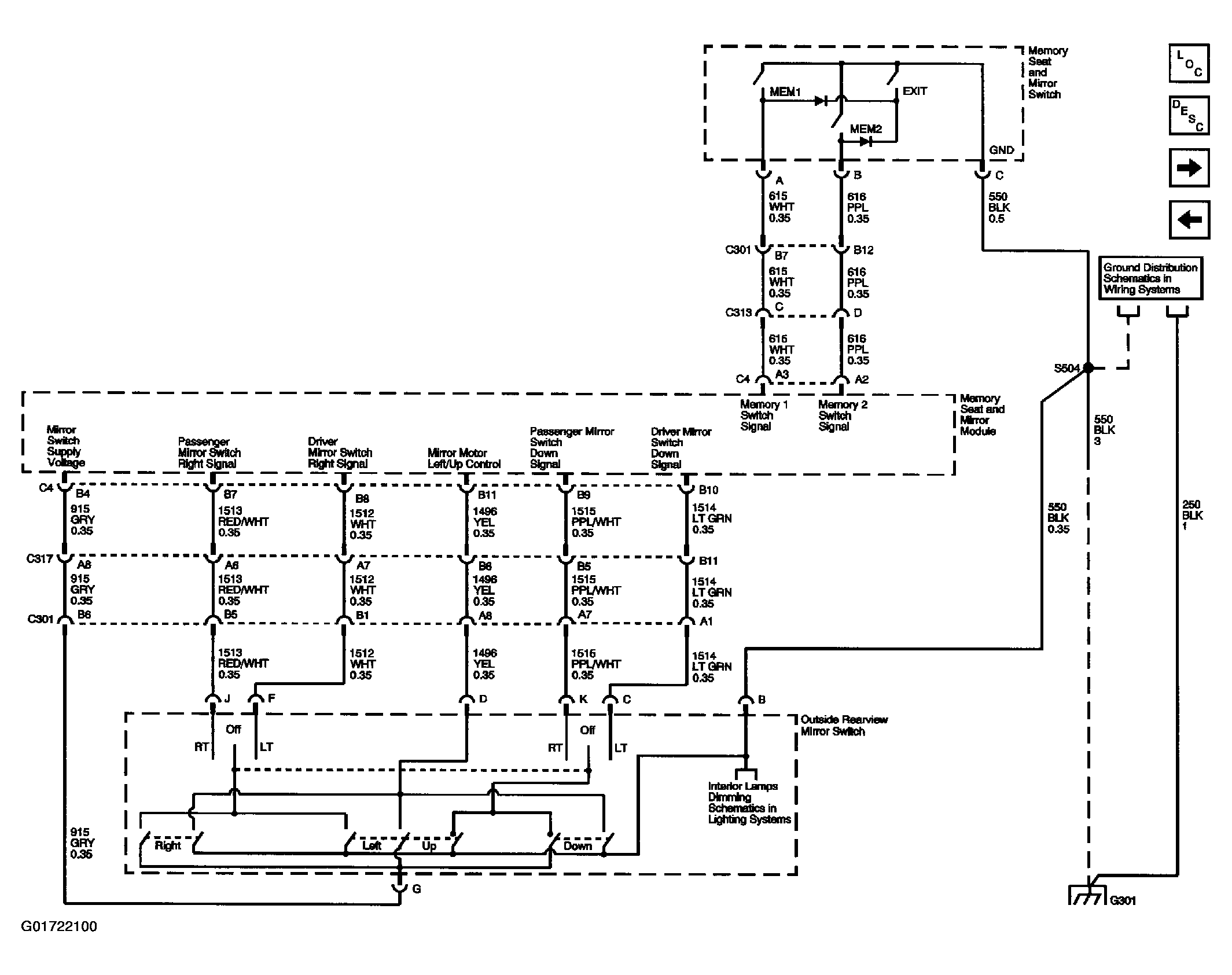

Fig 3: Outside Mirror Schematics (Memory Mirrors Switch Signals)
G01722100Courtesy of GENERAL MOTORS CORP.

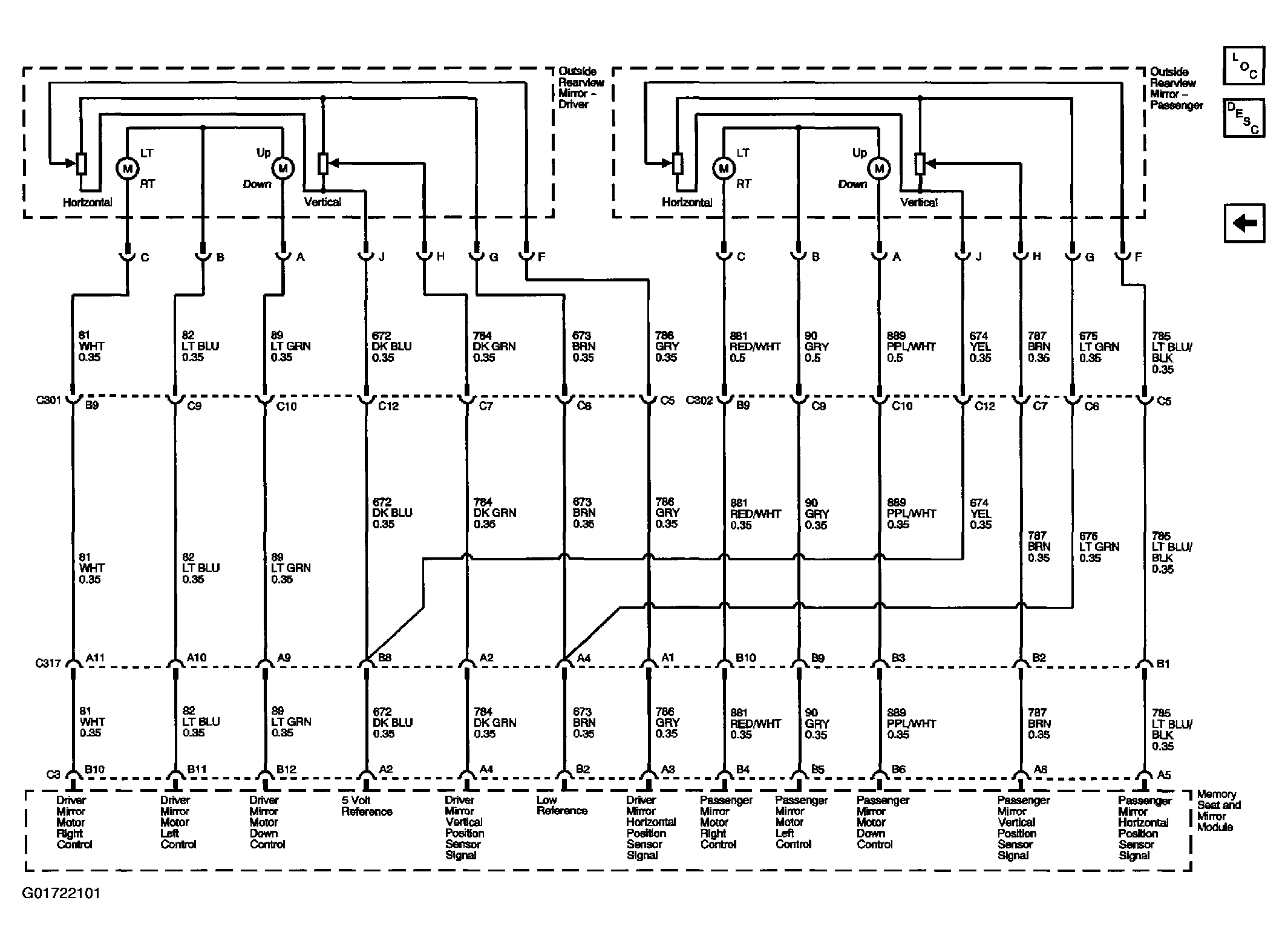

Fig 4: Outside Mirror Schematics (Memory Mirrors Controls)
G01722101Courtesy of GENERAL MOTORS CORP.
