Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Door System, Mirror System & Window System
>>
Schematic and Routing Diagrams
>>
Door Lock/Indicator Schematics
Door Lock/Indicator Schematics

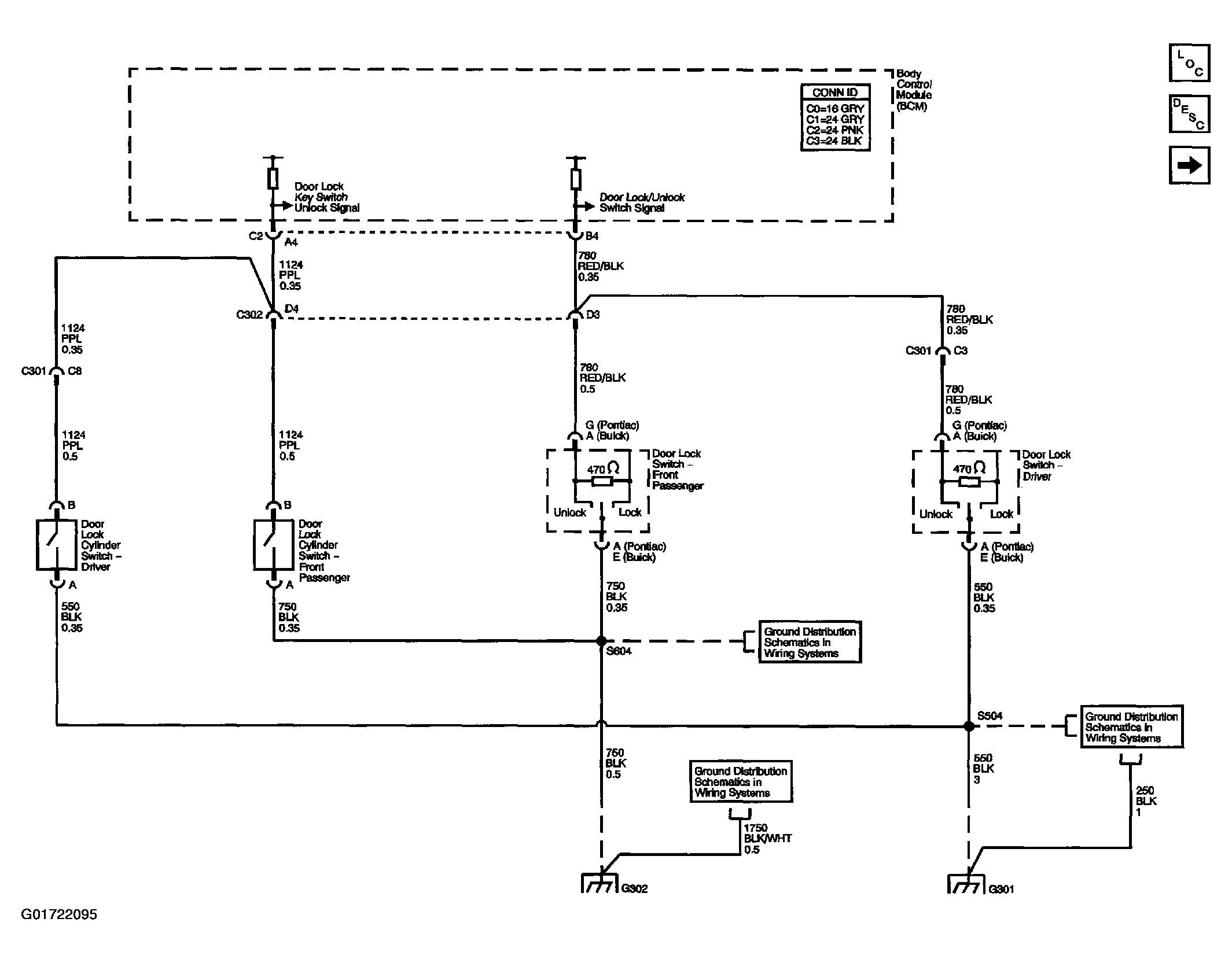

Fig 1: Door Lock/Indicator Schematics (Door Lock Switches)
Courtesy of GENERAL MOTORS CORP.

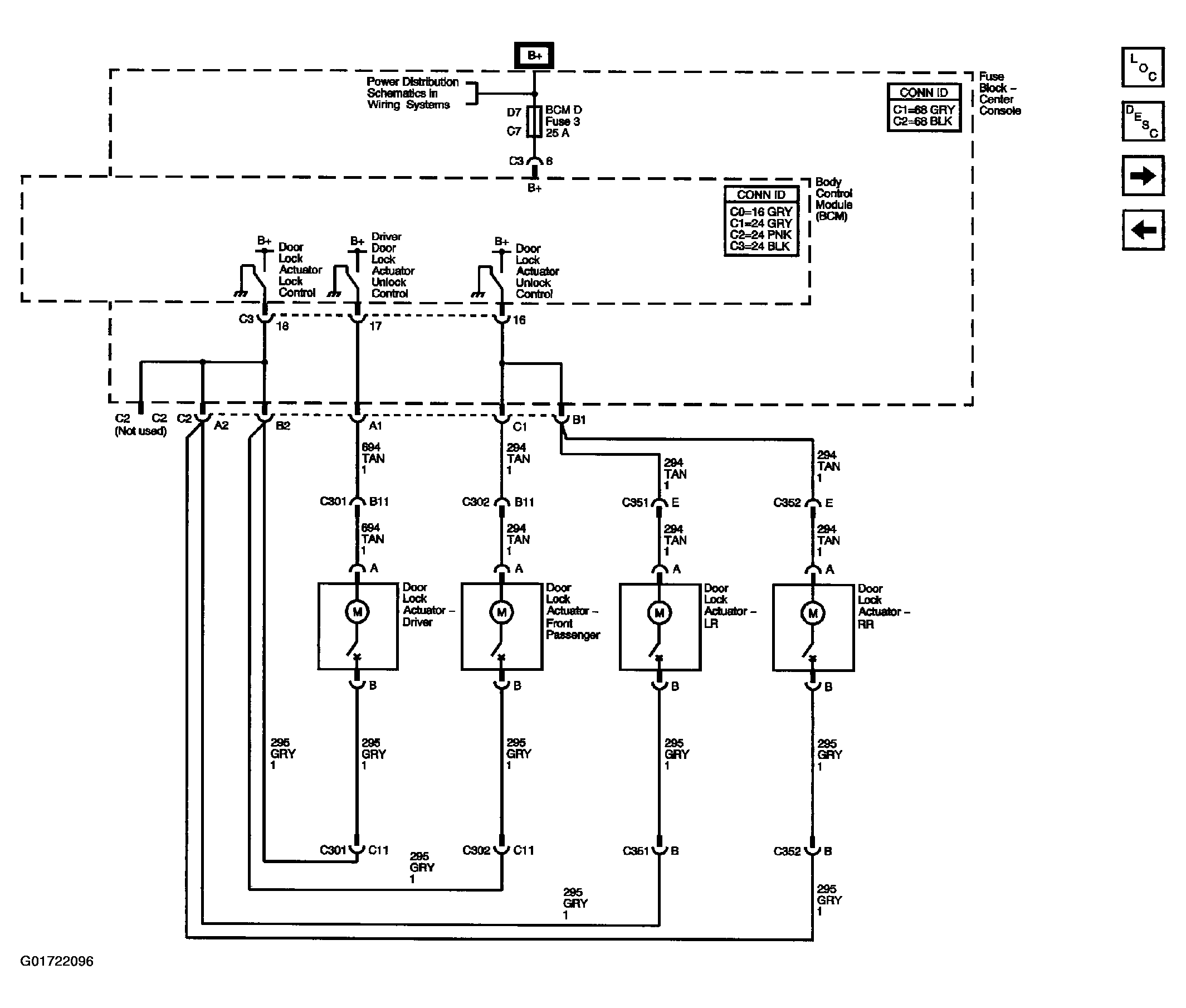

Fig 2: Door Lock/Indicator Schematics (Door Lock Actuators)
Courtesy of GENERAL MOTORS CORP.

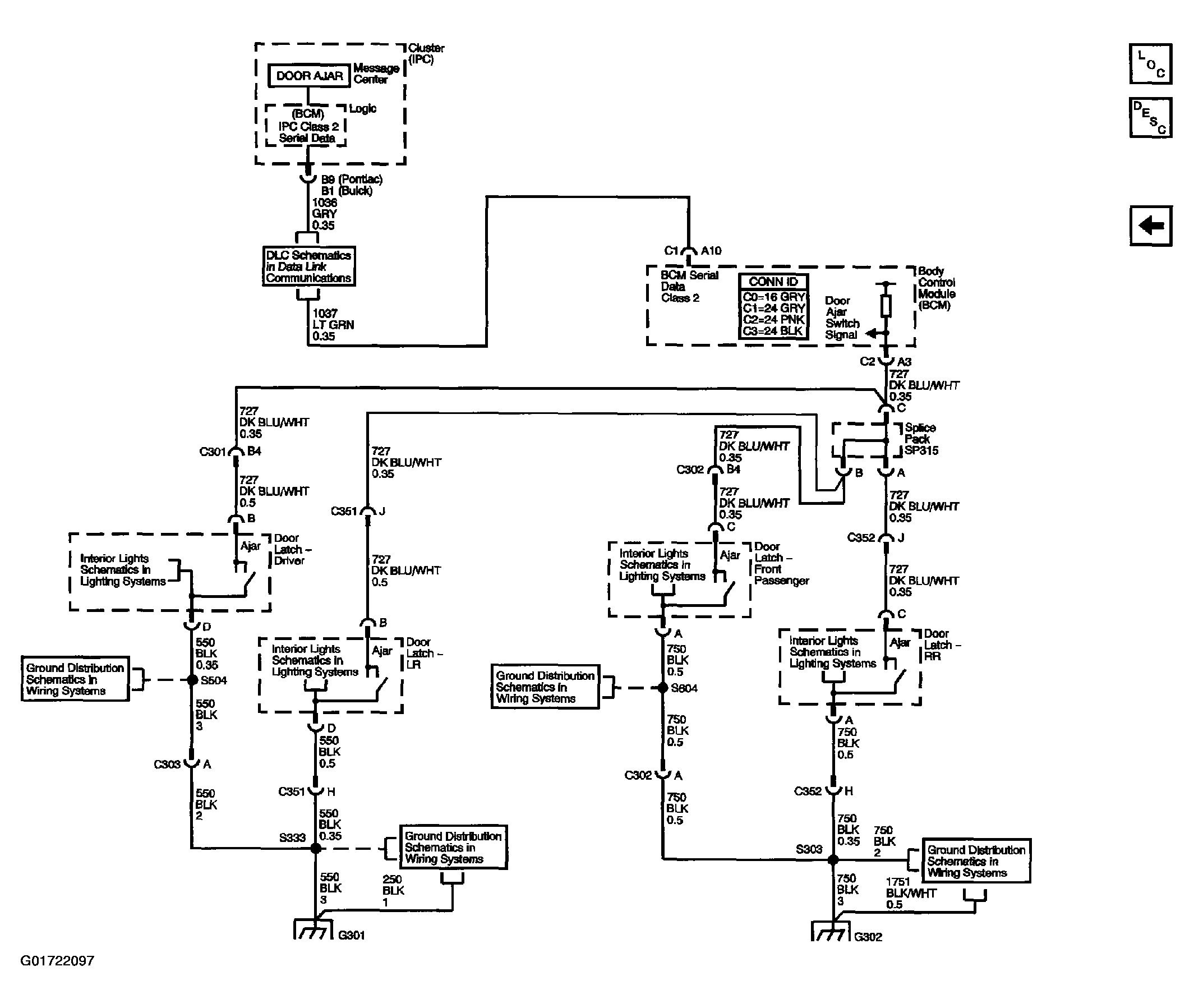

Fig 3: Door Lock/Indicator Schematics (Door Ajar Indicator)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
