Removal Procedure

  1. Position the rear door window in the full down position.
  2. Remove the trim panel. Refer to Trim Panel Replacement - Side Rear Door (Aztek)  or Trim Panel Replacement - Side Rear Door (Rendezvous) .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
  4. Remove the outer belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .
  5. Remove the window weatherstrip. Refer to Weatherstrip Replacement - Rear Door Window .
  6. Loosen the bolts (1) to the clevice clamps.

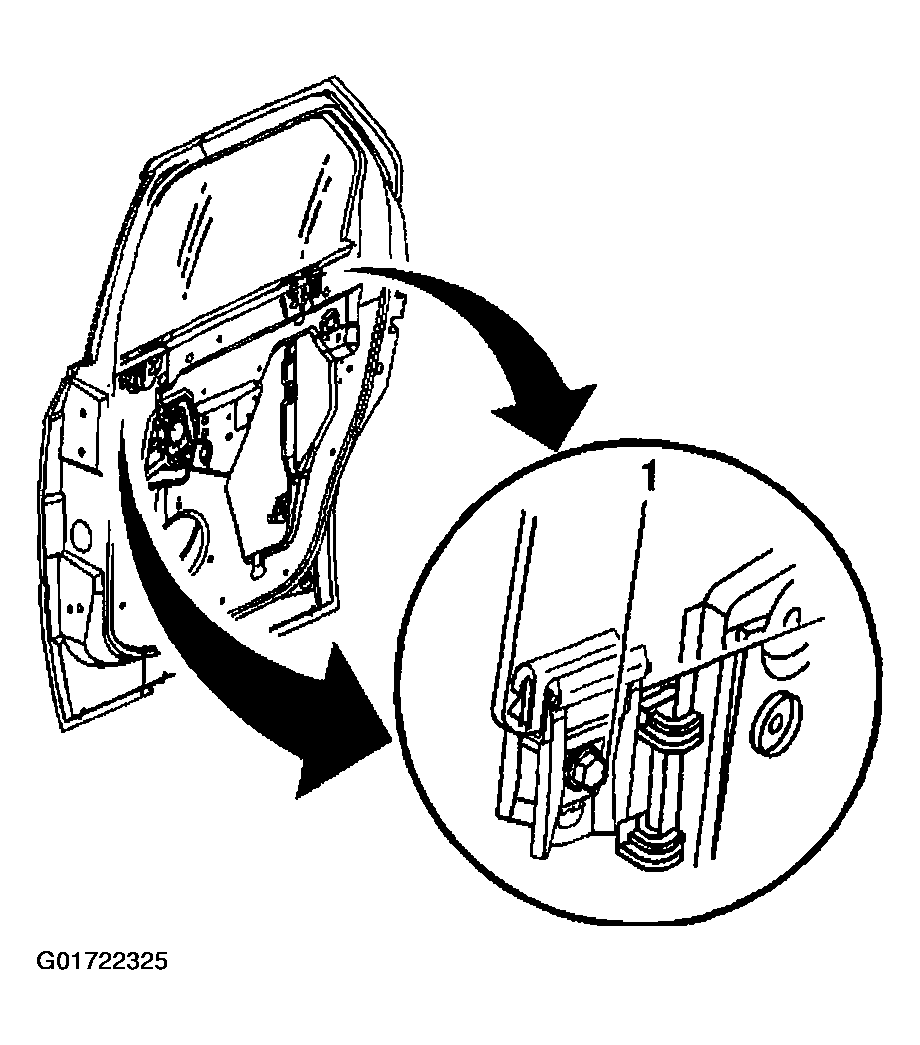

    Fig 1: Loosening Clevice Clamps Bolts
    G01722325Courtesy of GENERAL MOTORS CORP.
  7. Remove the window from the outside of the rear door.

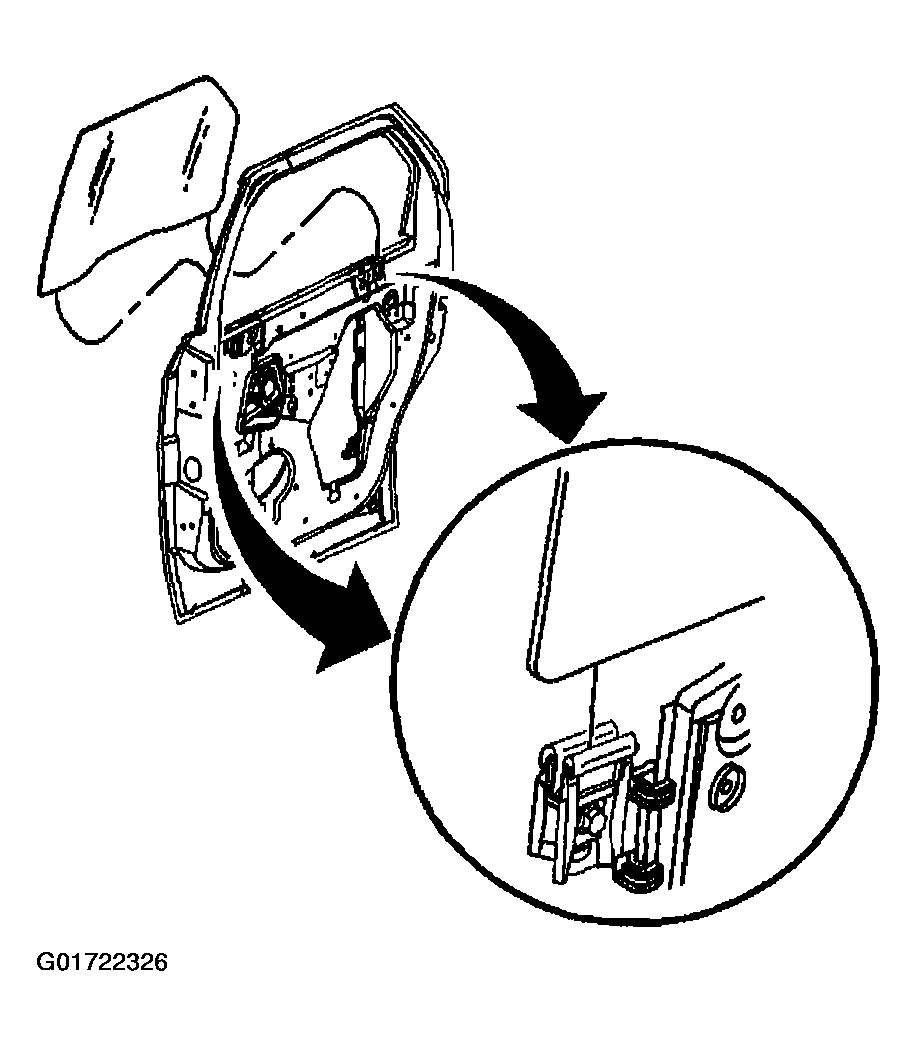

    Fig 2: Removing Rear Door Window
    G01722326Courtesy of GENERAL MOTORS CORP.
