Removal Procedure

  1. Lower the window to the down position.
  2. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door (Aztek)  or Trim Panel Replacement - Side Front Door (Rendezvous) .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer .
  5. Remove the screw from the window channel.
  6. Remove the window channel from the front door frame.

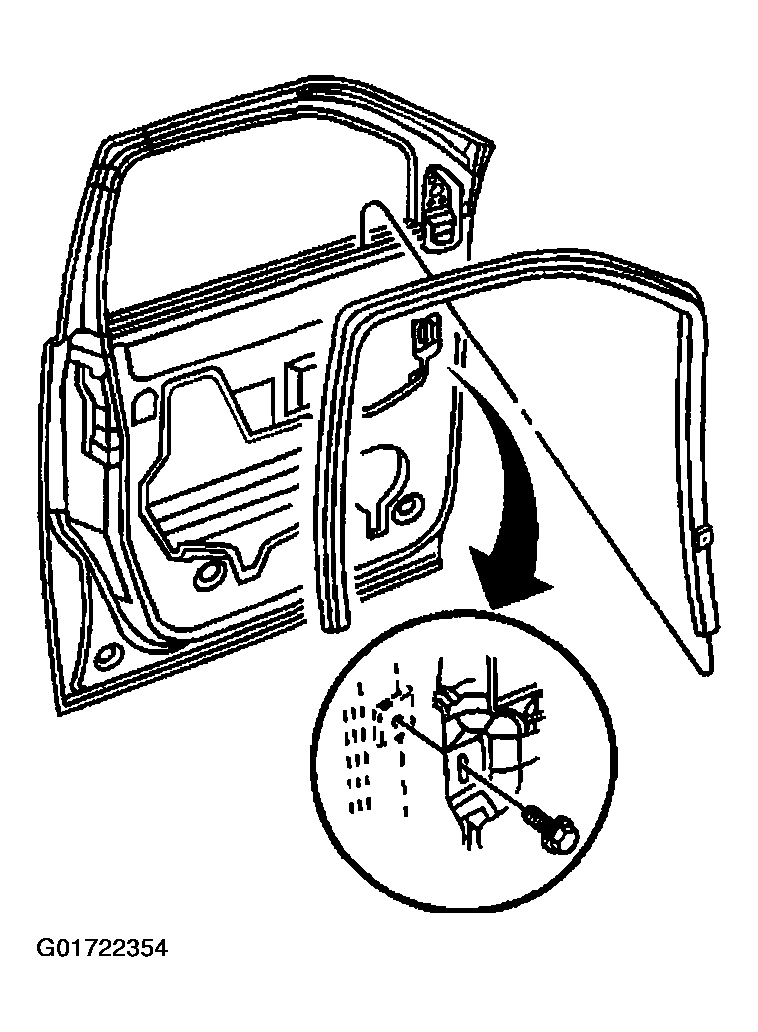

    Fig 1: Removing Front Door Window Weatherstrip
    G01722354Courtesy of GENERAL MOTORS CORP.
