Removal Procedure

  1. Open the rear door.
  2. Apply protective coating/tape at the point of insertion of the flat bladed tool.
  3. Remove the warning reflector from the rear door trim panel using a small flat bladed tool, pressing on the tabs from the top of the warning reflector.

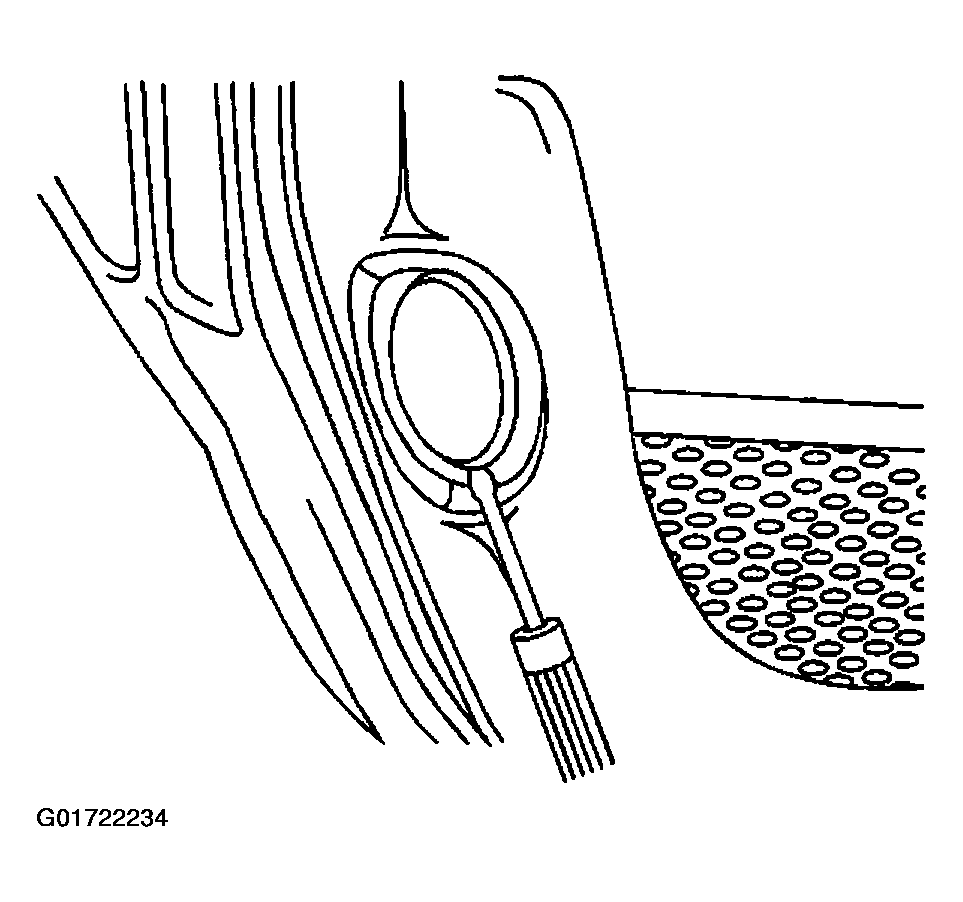

    Fig 1: Removing Rear Door Trim Panel Warning Reflector Using Small Flat Bladed Tool (Aztek)
    G01722234Courtesy of GENERAL MOTORS CORP.
  4. Remove the warning reflector from the rear door trim panel.

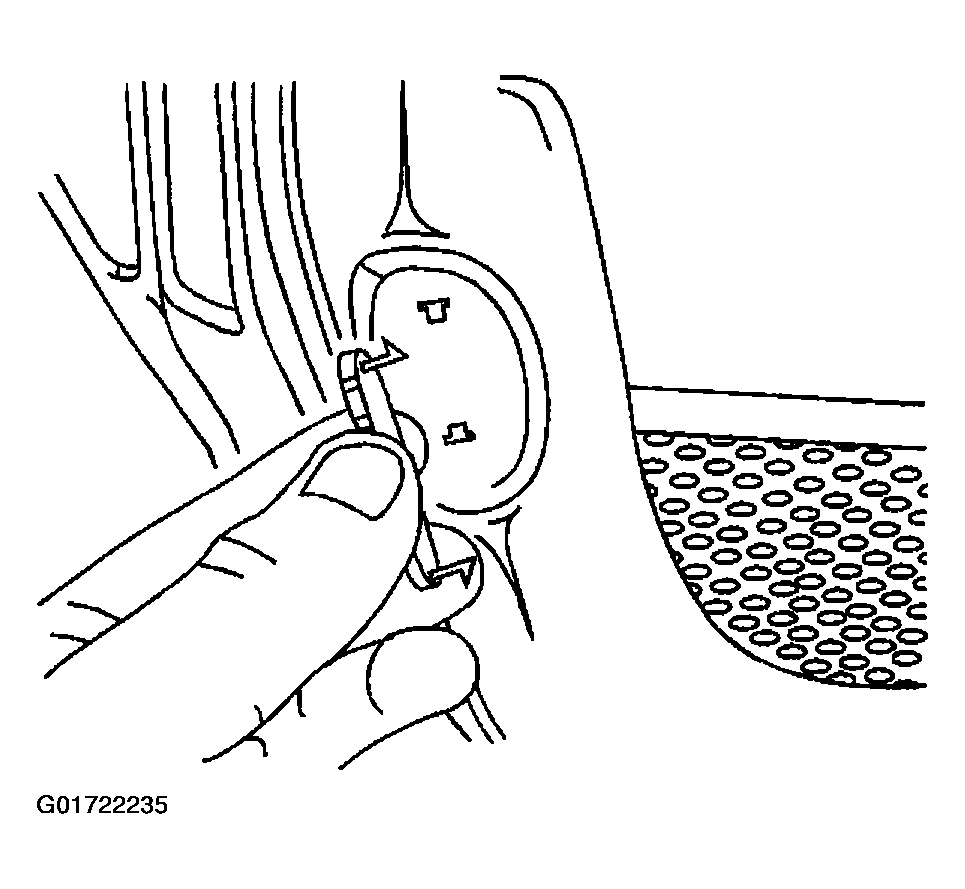

    Fig 2: Removing Rear Door Warning Reflector (Aztek)
    G01722235Courtesy of GENERAL MOTORS CORP.
