Installation Procedure

  1. Install the power window switch into the power window switch plate.

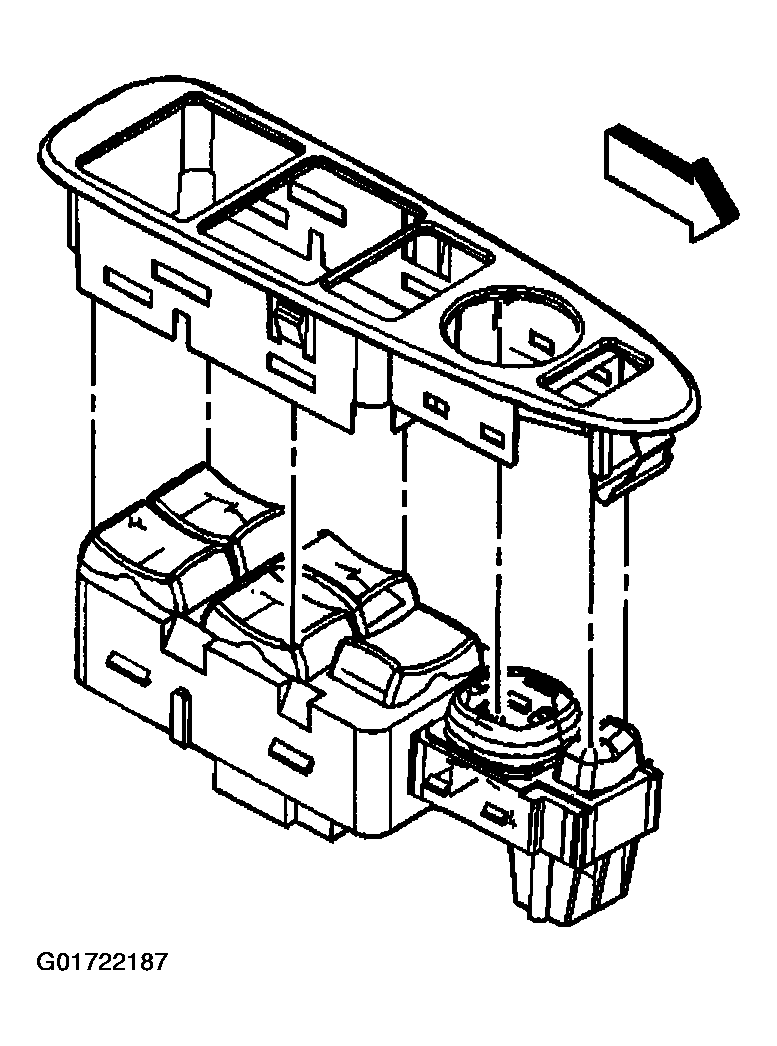

    Fig 1: Installing Power Window Switch Into Power Window Switch Plate
    G01722187Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors to the power window switch.

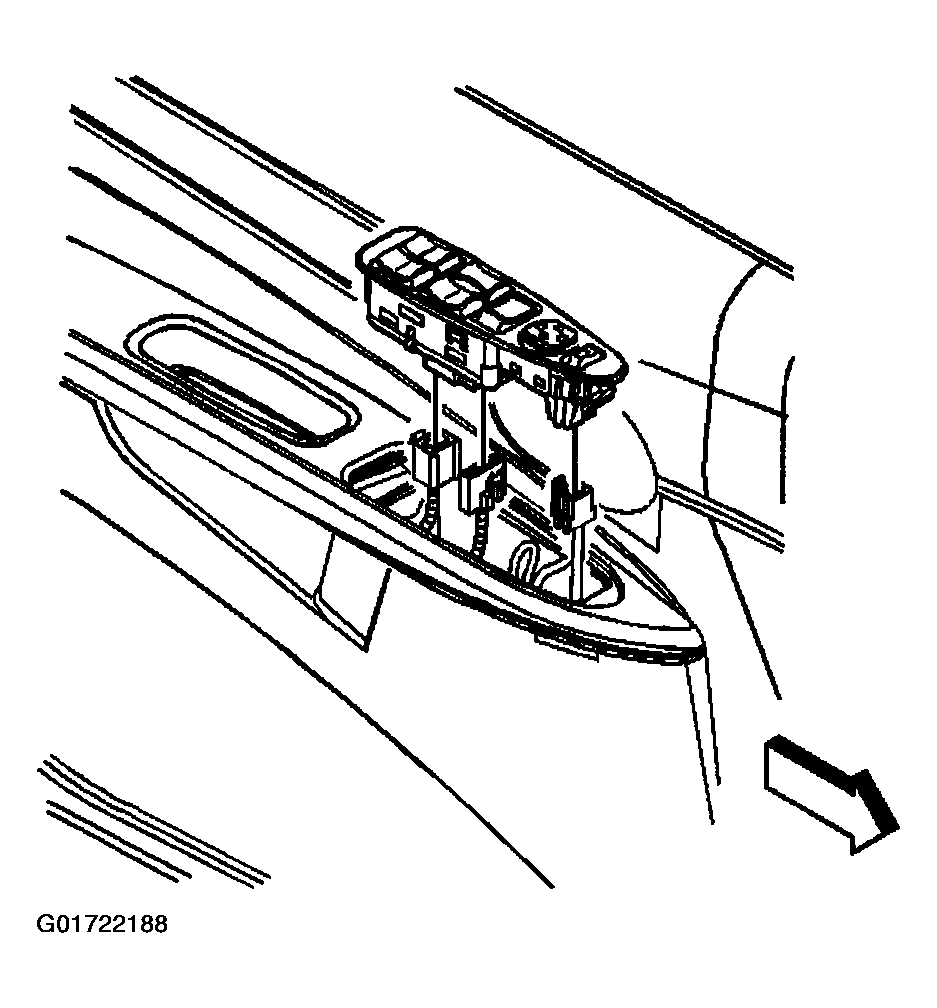

    Fig 2: Installing Power Window Switch To Front Door Trim Panel
    G01722188Courtesy of GENERAL MOTORS CORP.
  3. Install the power window switch plate to the front door trim panel. Press the plate into place until fully seated.

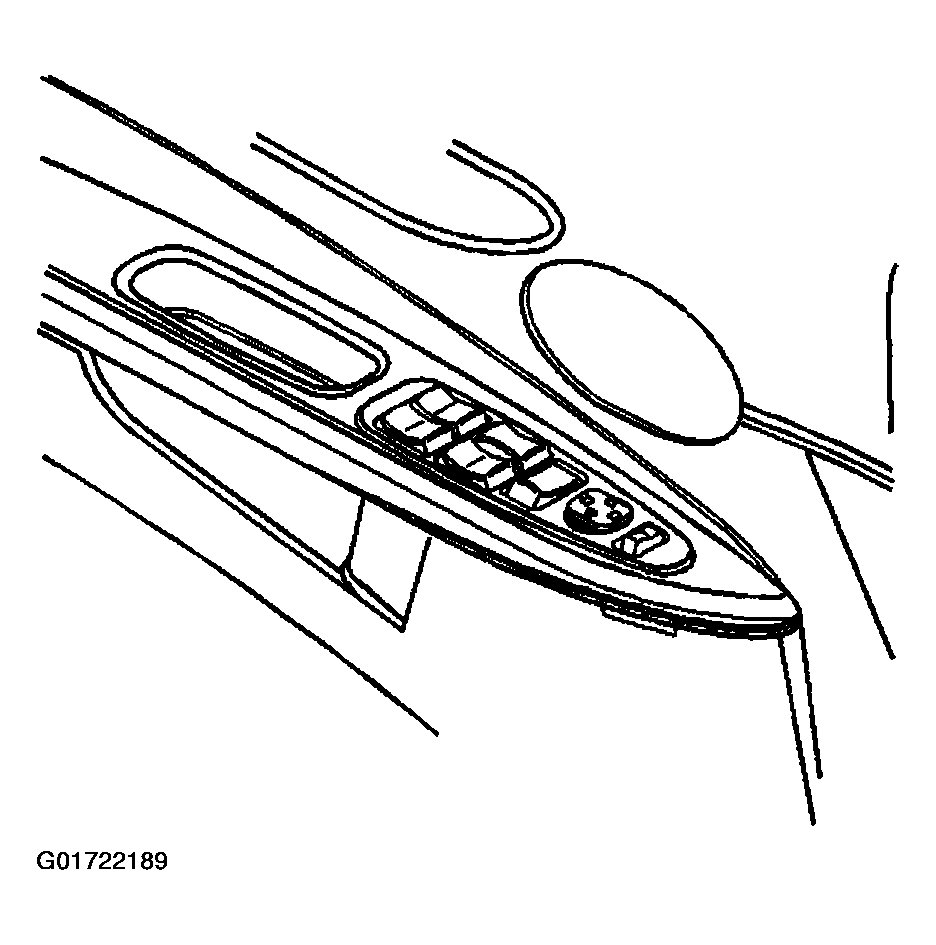

    Fig 3: View Of Power Window Switch
    G01722189Courtesy of GENERAL MOTORS CORP.
