Removal Procedure

Important:  Protect the applique with heavy material tape in order to avoid damaging the underlying paint finish or applique. Do not use a pointed or a sharp instrument for the removal of the applique.

1. Remove the window outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer .
2. Remove the center of the rivets using a center punch.

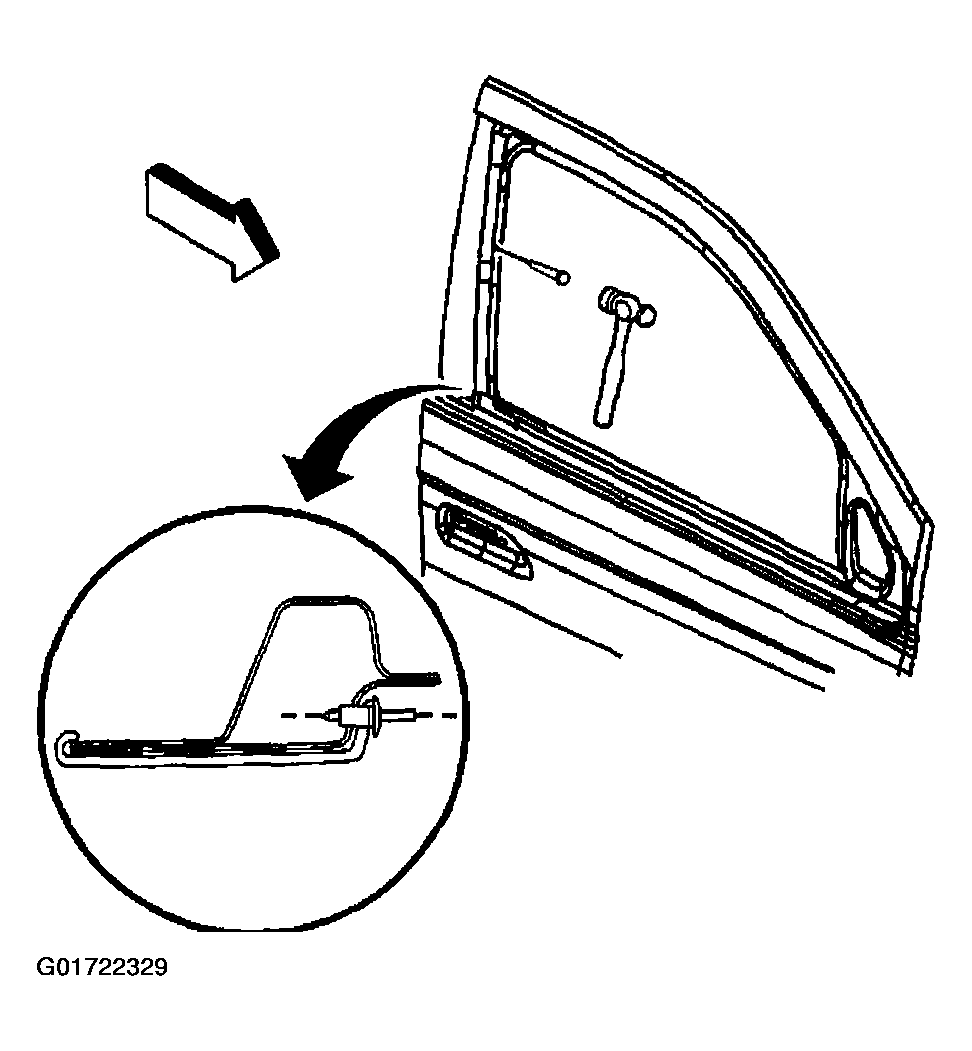

   Fig 1: Removing Rivets Center Using Center Punch

   Courtesy of GENERAL MOTORS CORP.
3. Drill out the rivets from the front door frame applique.

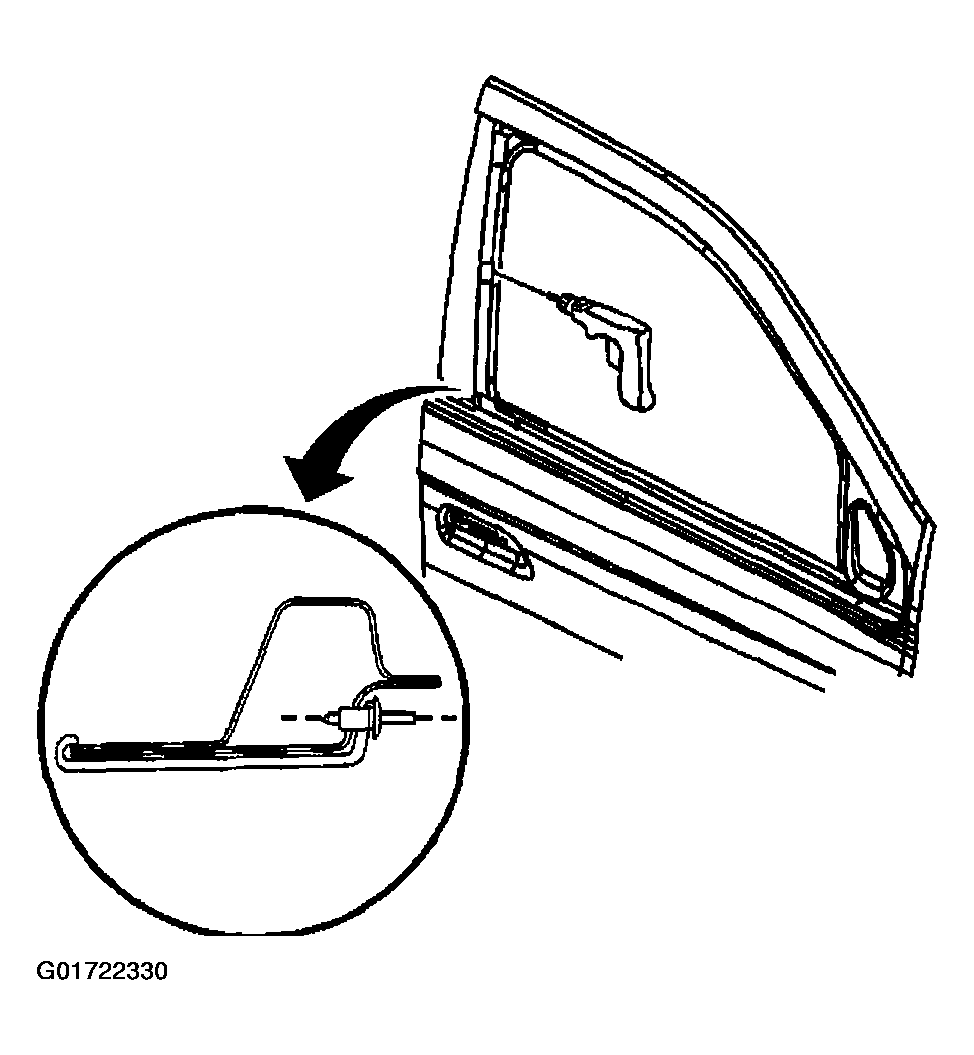

   Fig 2: Drilling Out Front Door Frame Applique Rivets

   Courtesy of GENERAL MOTORS CORP.
4. Remove the frame applique from the front door.

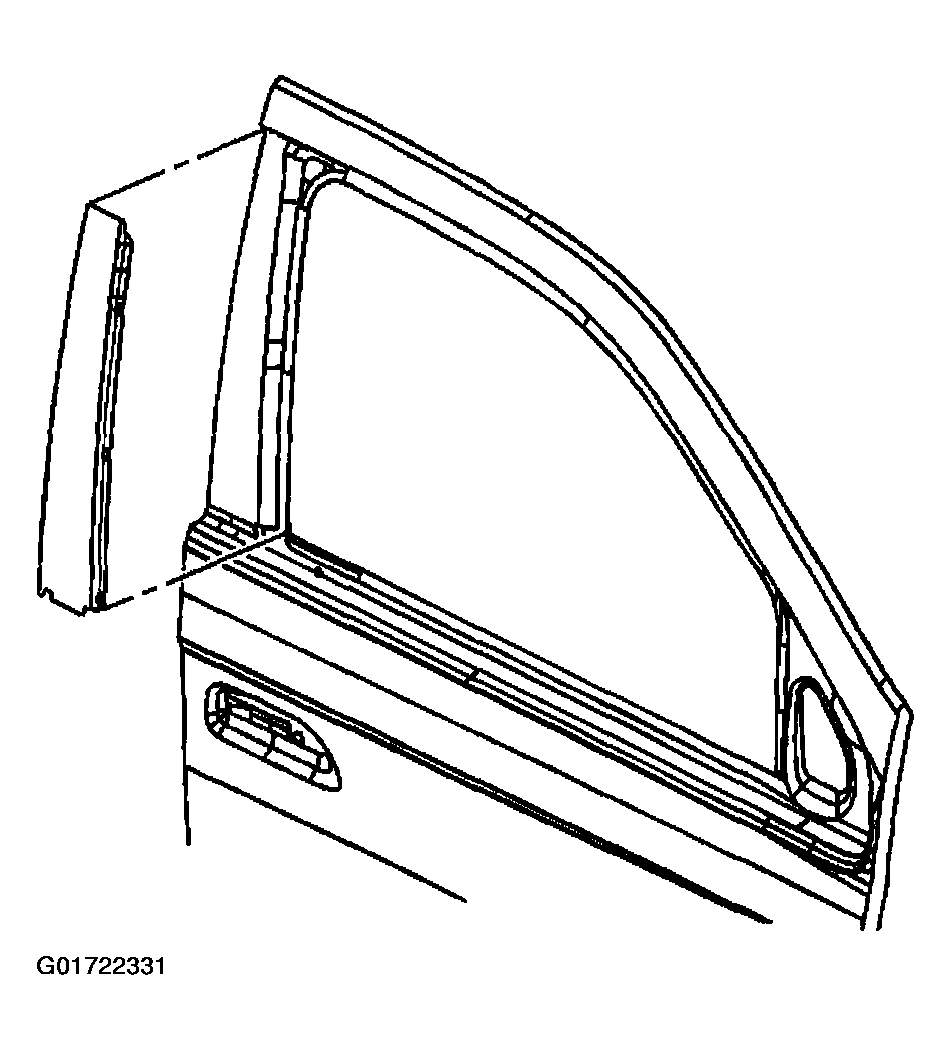

   Fig 3: Removing Front Door Frame Applique

   Courtesy of GENERAL MOTORS CORP.
