Removal Procedure

  1. Remove the outer trim panel from the front seat cushion. Refer to Seat Cushion Outer Trim Panel Replacement - Front Seat .
  2. Use a small flat-bladed tool to release the retainers which hold the power seat switch to the outer trim panel.

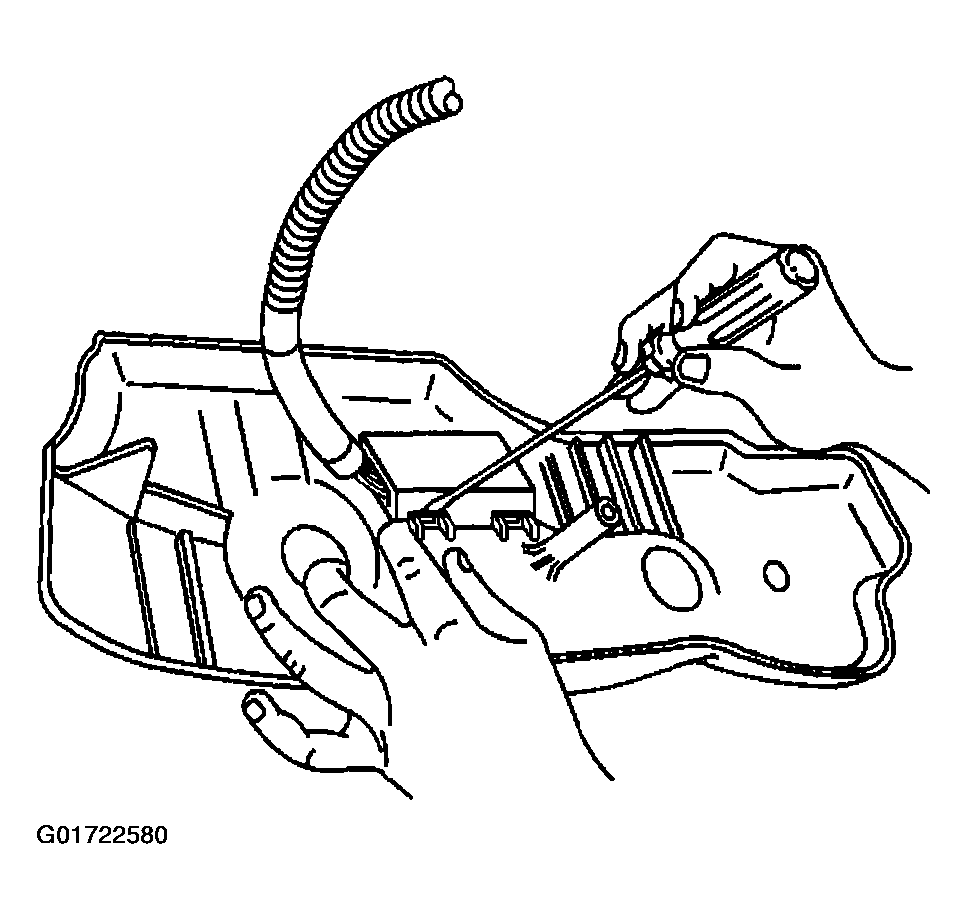

    Fig 1: Releasing Power Seat Switch To Outer Trim Panel Retainers
    G01722580Courtesy of GENERAL MOTORS CORP.
  3. Remove the power seat switch from the outer trim panel.

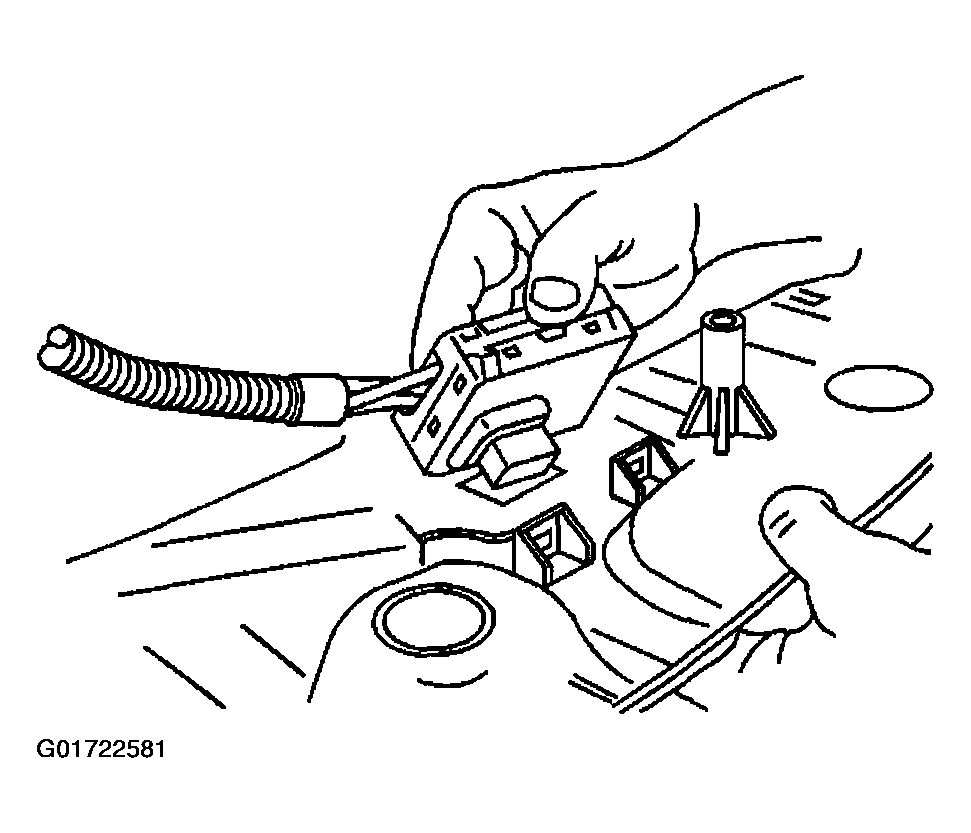

    Fig 2: Removing Power Seat Switch
    G01722581Courtesy of GENERAL MOTORS CORP.
  4. Remove the power seat switch harness from the front seat support.

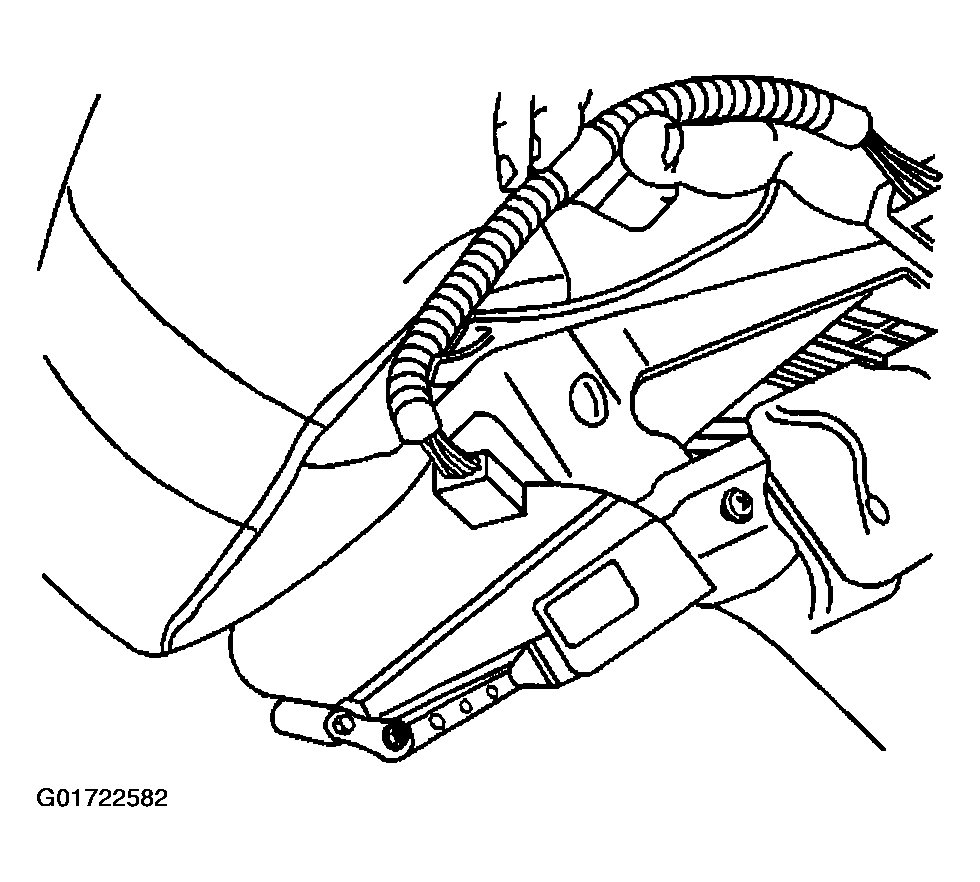

    Fig 3: Removing Power Seat Switch Harness
    G01722582Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector from the power seat switch.
  6. Remove the power seat switch.

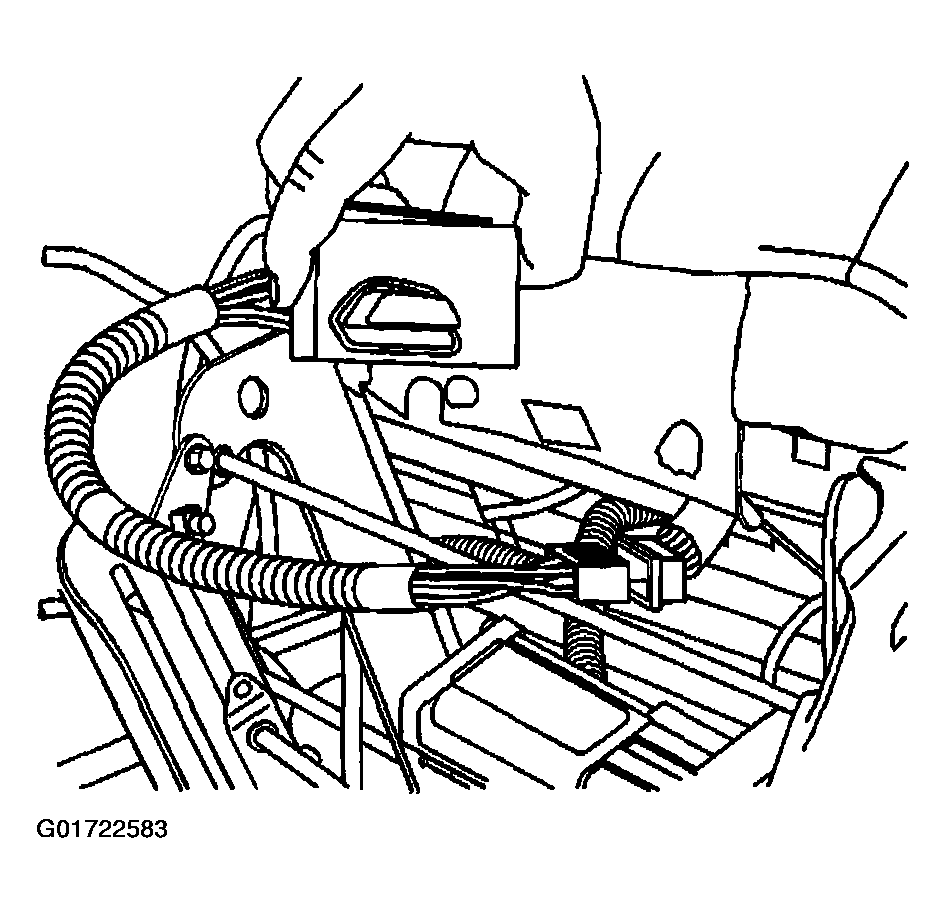

    Fig 4: Disconnecting Power Seat Switch Electrical Connectors
    G01722583Courtesy of GENERAL MOTORS CORP.
