Installation Procedure

  1. Connect the electrical connector to the power seat switch.

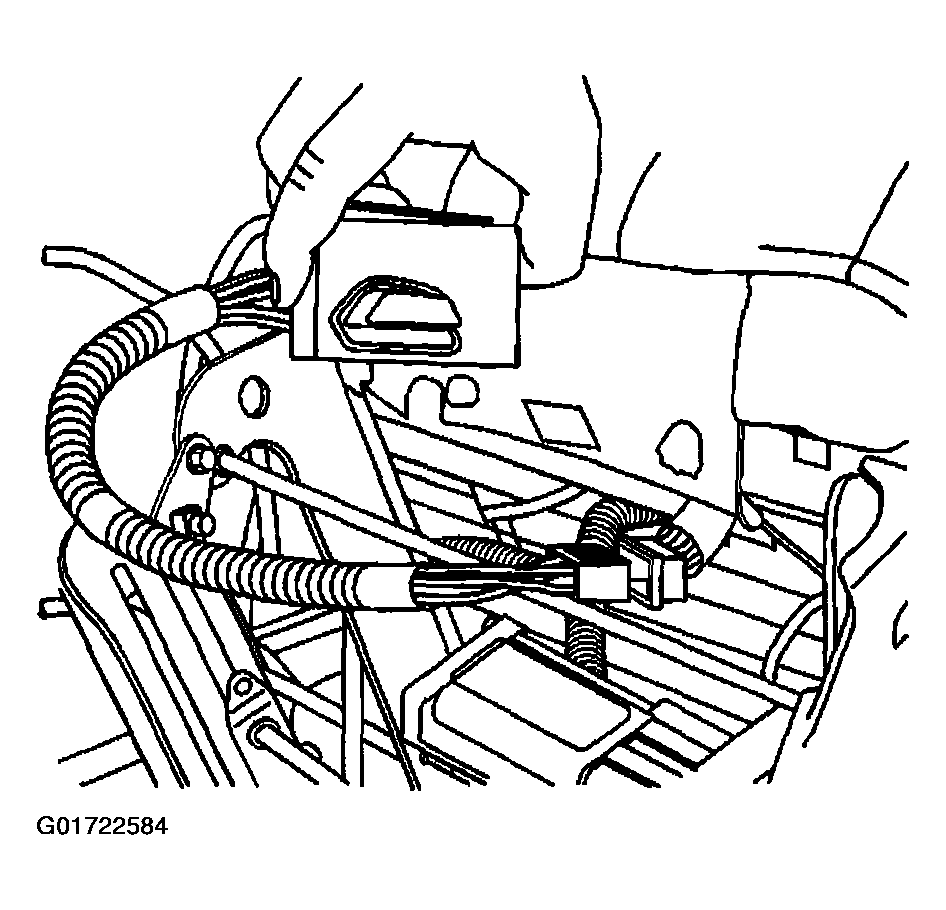

    Fig 1: Connecting Power Seat Switch Electrical Connectors
    G01722584Courtesy of GENERAL MOTORS CORP.
  2. Install the power seat switch to the outer trim panel, pressing the switch into place until fully seated.

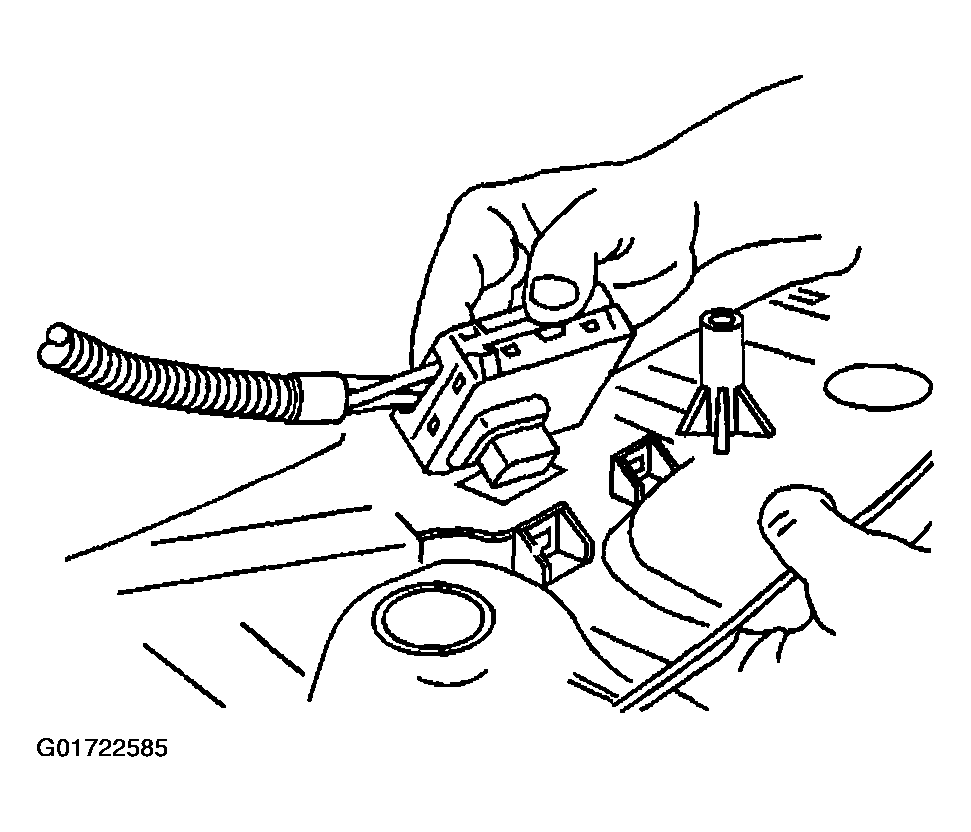

    Fig 2: Installing Power Seat Switch
    G01722585Courtesy of GENERAL MOTORS CORP.

    Important:  The power front seat switch harness must be in the proper position for the proper installation of the outer seat cushion trim panel.

  3. Connect the power seat switch harness to the front seat support.
  4. Install the outer trim panel to the front seat cushion. Refer to Seat Cushion Outer Trim Panel Replacement - Front Seat .

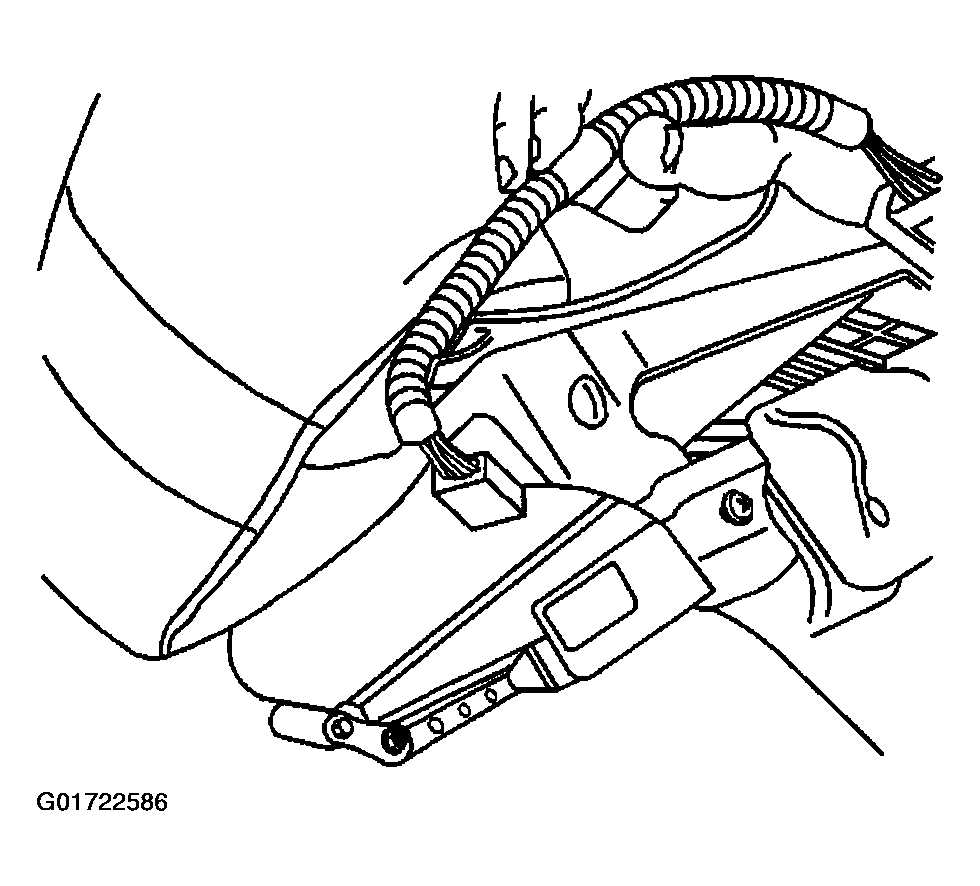

    Fig 3: Connecting Power Seat Switch Harness
    G01722586Courtesy of GENERAL MOTORS CORP.
