Installation Procedure

  1. Install the front seat back onto the front seat cushion.
  2. Install the wiring harnesses to the heated seat and to the side air bag through the front seat cushion and frame area.

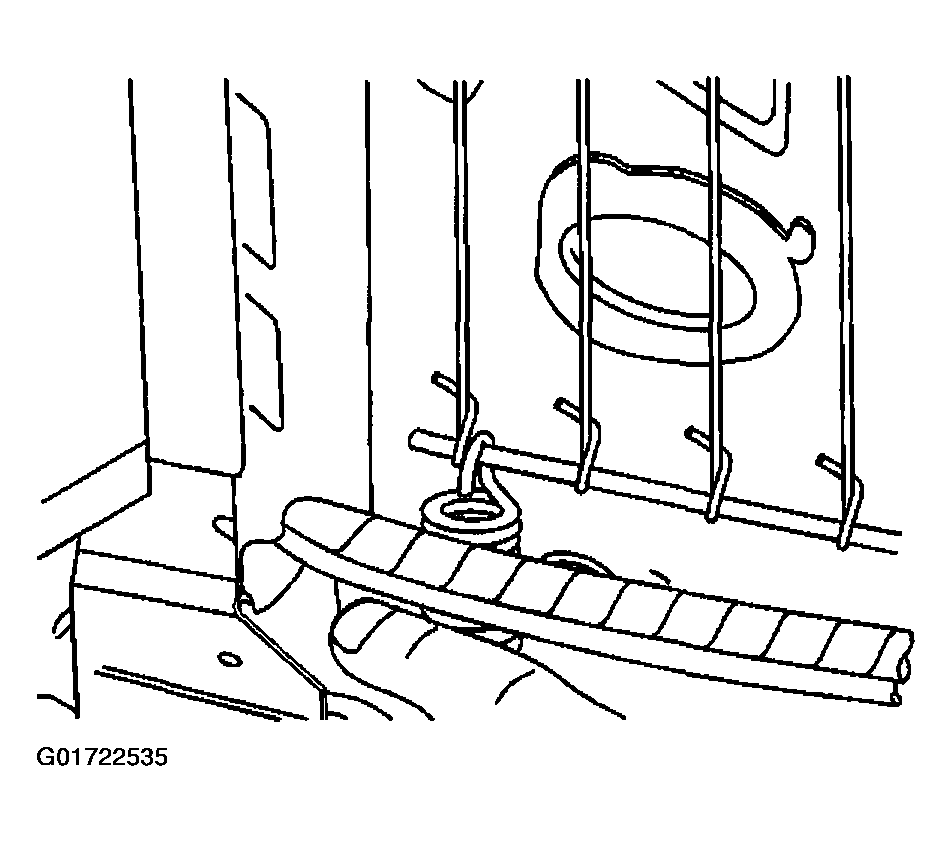

    Fig 1: Installing Heated Seat And Side Air Bag Wiring Harnesses
    G01722535Courtesy of GENERAL MOTORS CORP.
  3. Install the back to the seat cushion frame.
    NOTE: Refer to FLEX DECOUPLER NOTICE .
  4. Install the left front bolts to the seat back recliner hinge.

    Tighten

    Tighten the bolts to 40 N.m (30 lb ft).

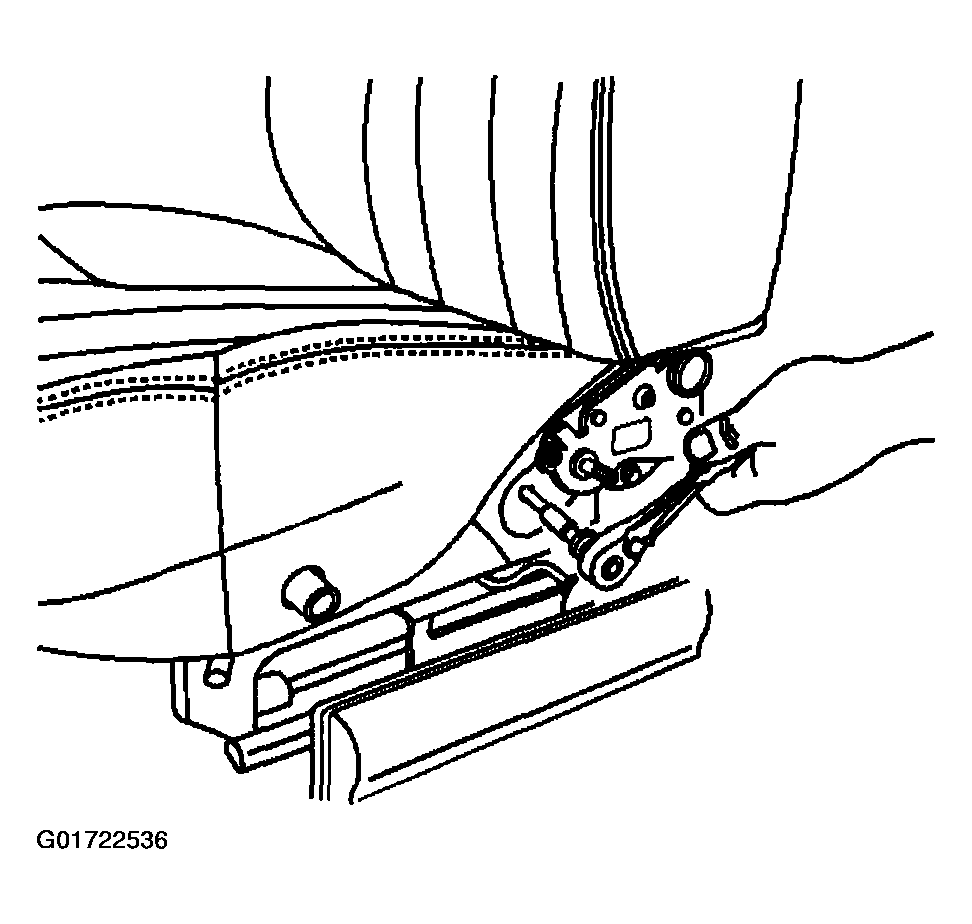

    Fig 2: Installing Seat Back Recliner Hinge Left Front Bolts
    G01722536Courtesy of GENERAL MOTORS CORP.
  5. Install the right front bolts to the seat back recliner hinge.

    Tighten

    Tighten the bolts to 40 N.m (30 lb ft).

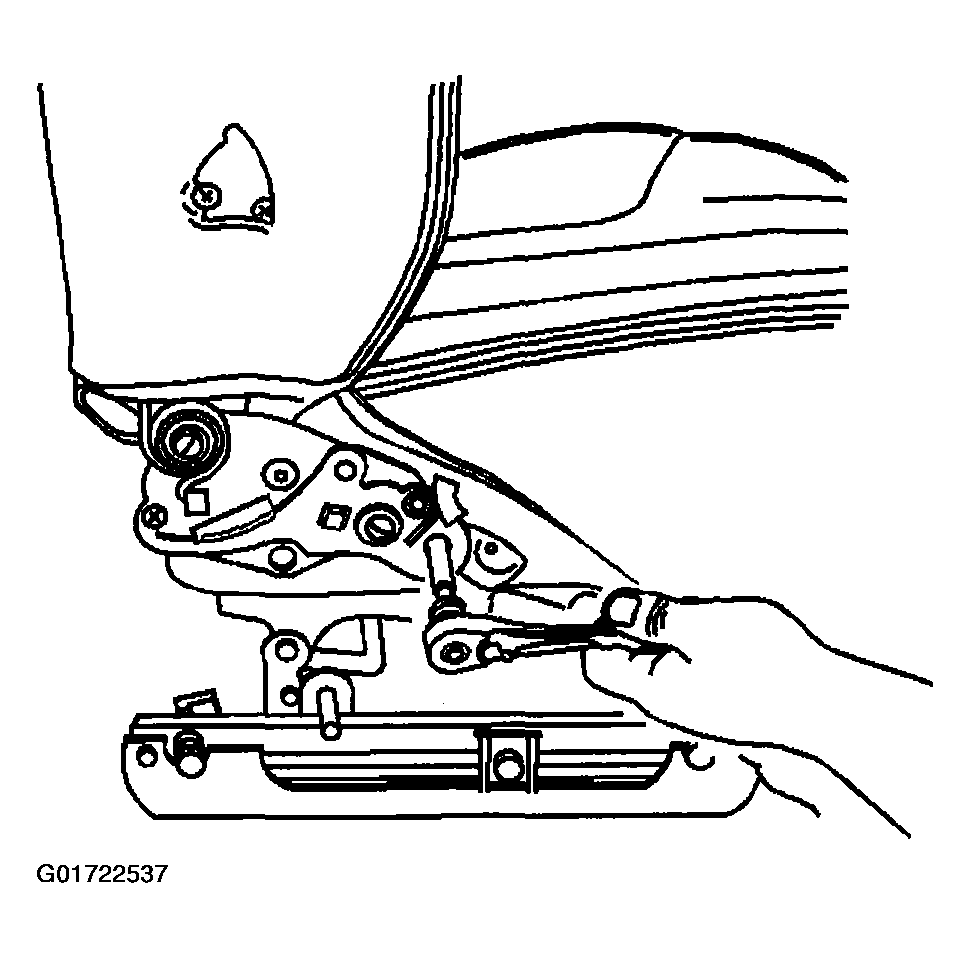

    Fig 3: Installing Seat Back Recliner Hinge Right Front Bolts
    G01722537Courtesy of GENERAL MOTORS CORP.
  6. Install the recliner cable ends to the seat back recliner hinge.
  7. Install the outer trim panel to the front seat cushion. Refer to Seat Cushion Outer Trim Panel Replacement - Front Seat .
  8. Install the inner trim panel to the front seat cushion. Refer to Seat Cushion Inner Trim Panel Replacement - Front .
  9. Inspect the seat back for proper operation.
  10. Install the front bucket seat. Refer to Seat Replacement - Bucket .

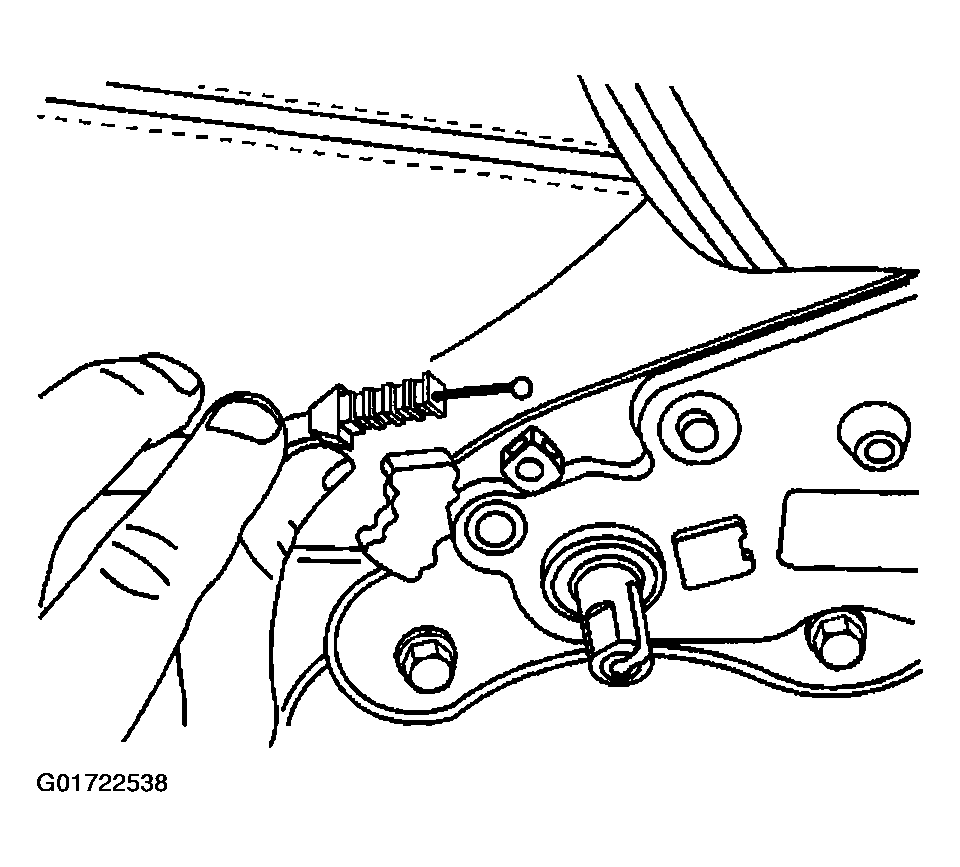

    Fig 4: Installing Recliner Cable Ends
    G01722538Courtesy of GENERAL MOTORS CORP.
