Removal Procedure

  1. Release the door with the handle and remove the door.
  2. Remove the screws holding the access plate.
  3. Disconnect the electrical connectors from the panel.
  4. Remove the panel.

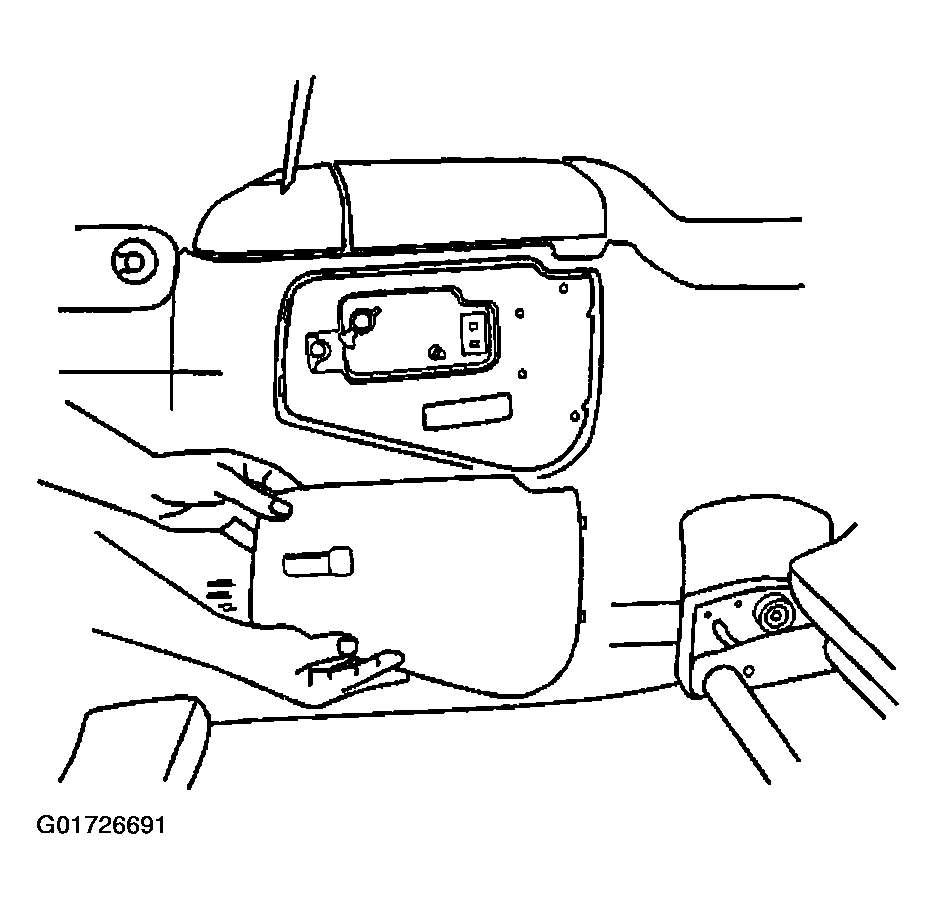

    Fig 1: Removing Door Access Panel
    G01726691Courtesy of GENERAL MOTORS CORP.
