Removal Procedure

  1. Release the sunshade from the anchor attachment.
  2. Remove the sunshade screw from the headliner.
  3. Disconnect the electrical connector from the sunshade.
  4. Remove the sunshade.

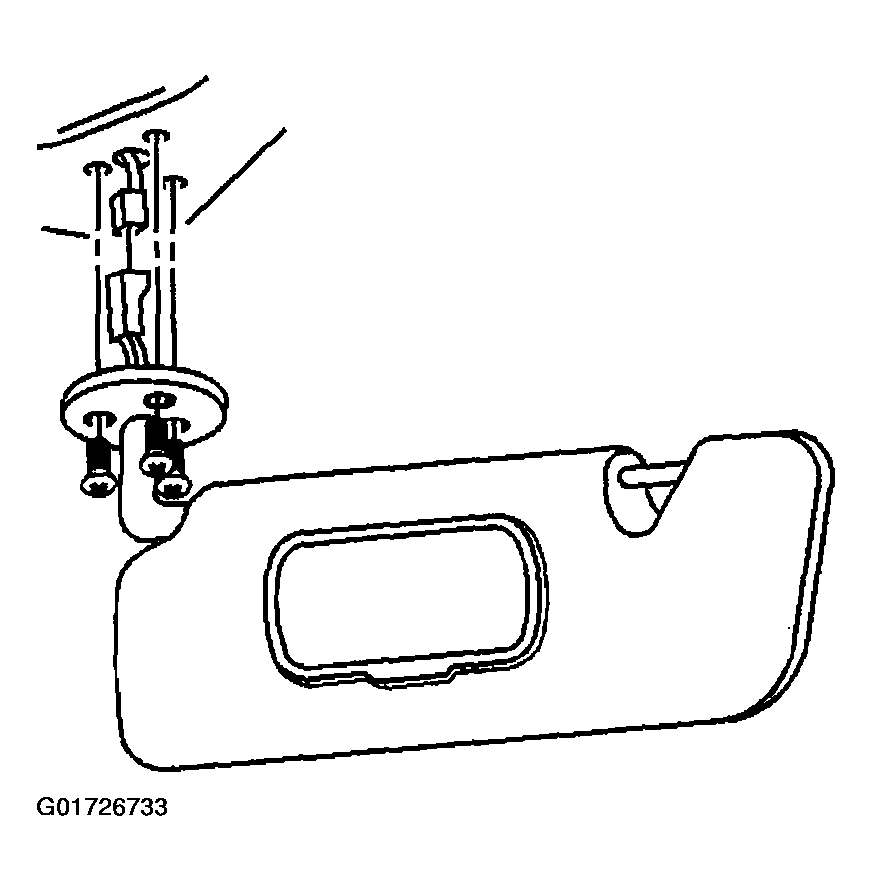

    Fig 1: Removing Sunshade Screws & Disconnecting Electrical Connector
    G01726733Courtesy of GENERAL MOTORS CORP.
