Removal Procedure

  1. Remove the sunshade from the anchor.
  2. Remove the screw from the sunshade anchor.
  3. Remove the sunshade anchor from the headliner.

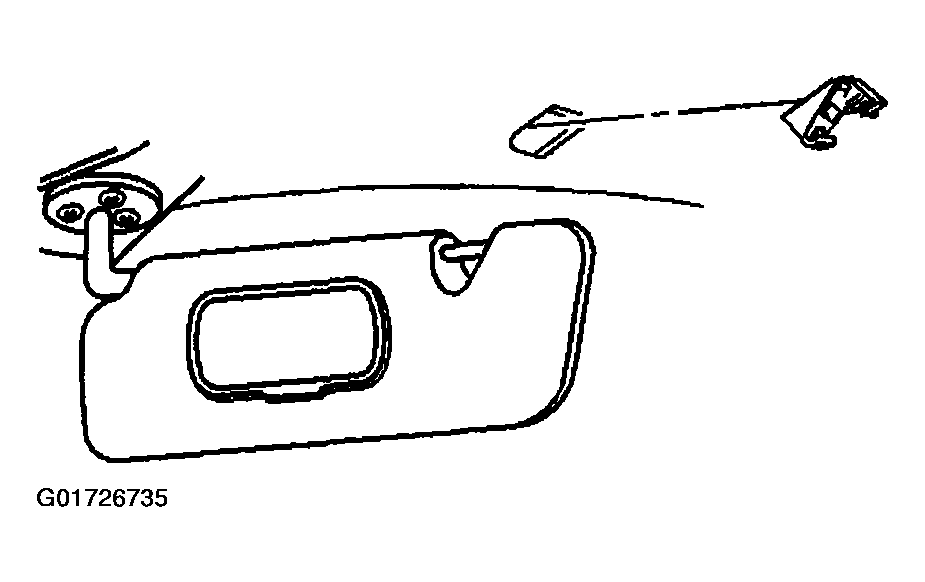

    Fig 1: Removing Sunshade Anchor
    G01726735Courtesy of GENERAL MOTORS CORP.
