Installation Procedure

  1. Connect the electrical connector to the rear radio speaker.
  2. Install the rear radio speaker.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the speaker screws.

    Tighten

    Tighten the screws to 3 N.m (28 lb in).

  4. Install the rear quarter trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .

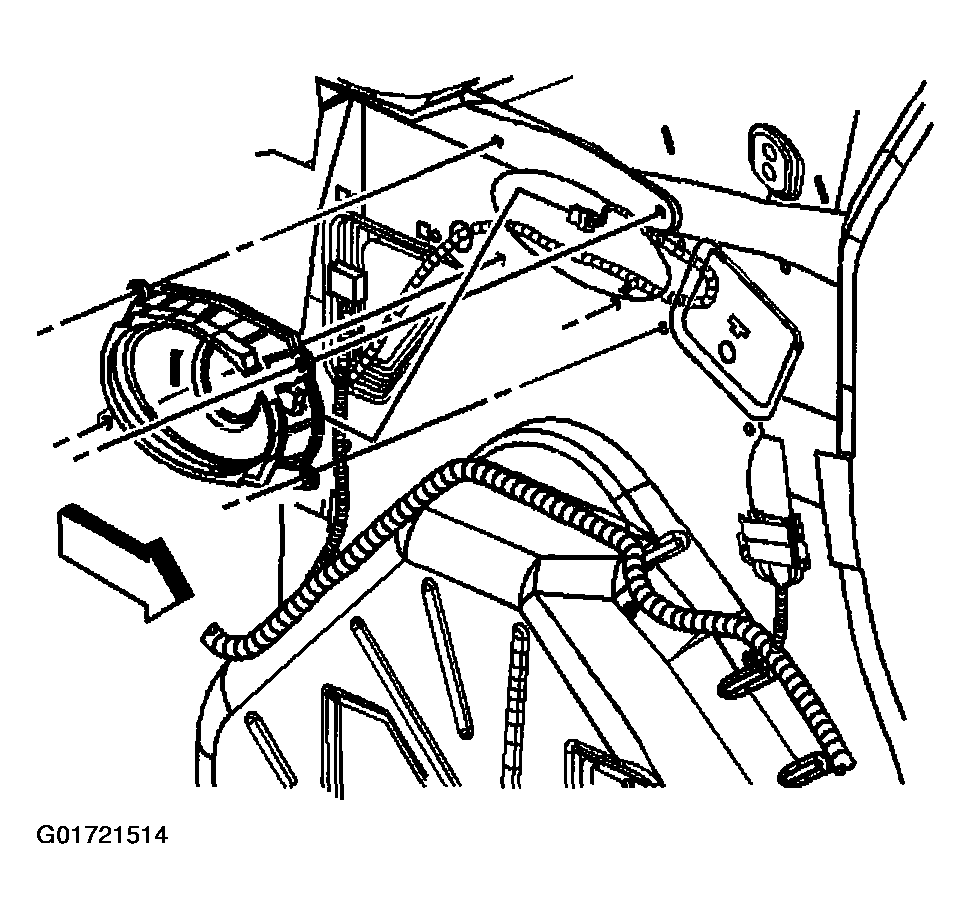

    Fig 1: Installing Rear Speaker (Aztek)
    G01721514Courtesy of GENERAL MOTORS CORP.
