Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Install the speaker to the door trim panel assembly.

    Tighten

    Tighten the speaker screws to 3.2 N.m 28 lb in).

  2. Connect the wire harness to the speaker.
  3. Install the trim panel assembly to the front door. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK) or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS) .

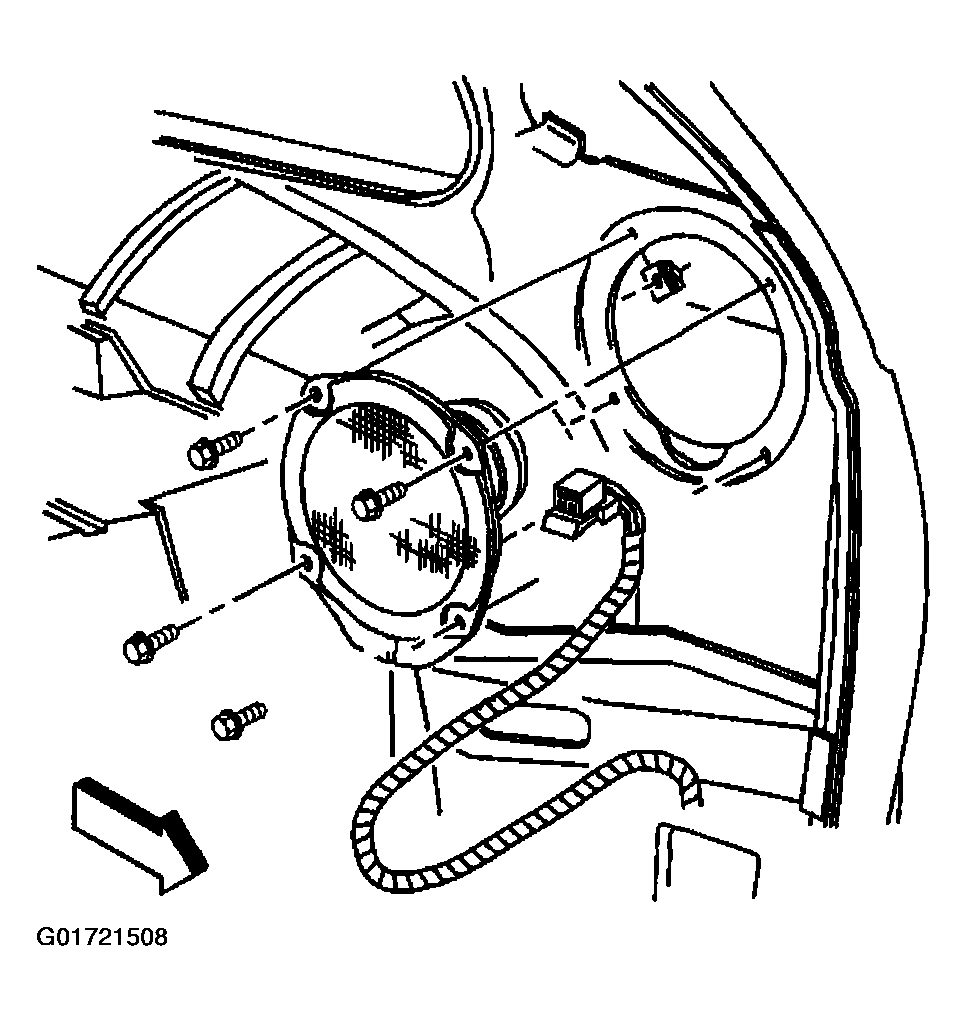

    Fig 1: Installing Front Upper Speaker & Screws
    G01721508Courtesy of GENERAL MOTORS CORP.
