Removal Procedure

  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK) or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS) .
  2. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
  3. Remove the speaker screws.
  4. Disconnect the wire harness from the speaker.
  5. Remove the speaker.

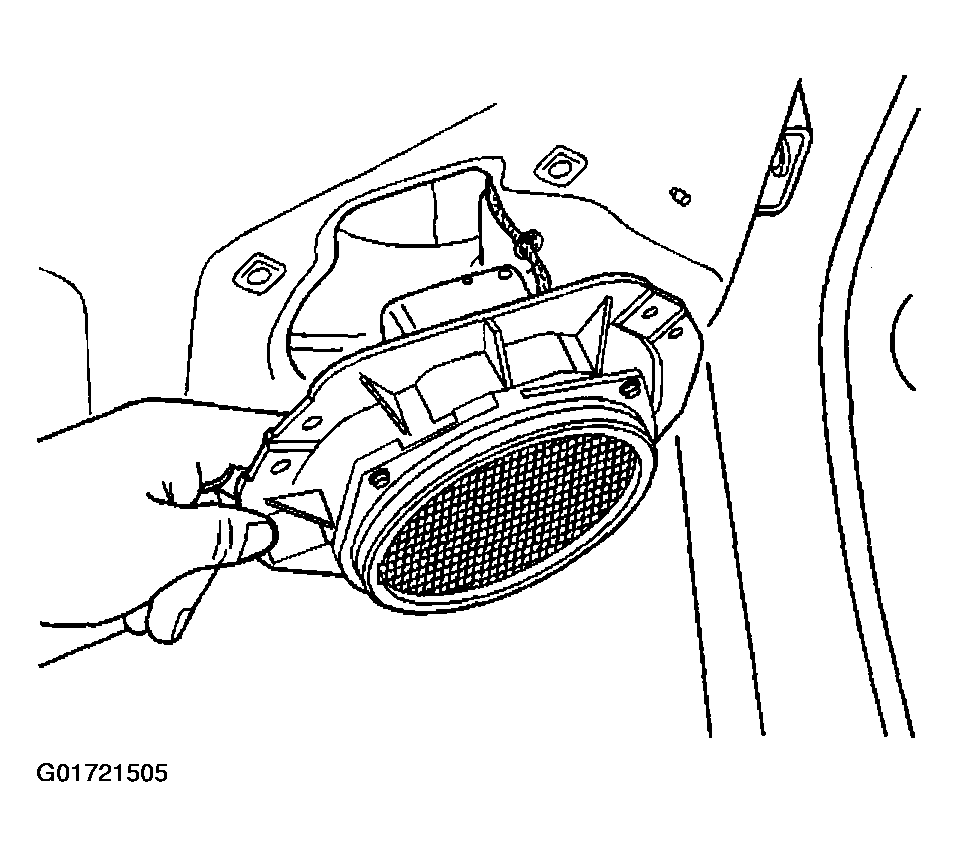

    Fig 1: Removing Front Lower Speaker
    G01721505Courtesy of GENERAL MOTORS CORP.
