Removal Procedure

  1. Remove the rear quarter trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
  2. Remove the speaker bolts.
  3. Disconnect the electrical connectors from the speaker.
  4. Remove the speaker.

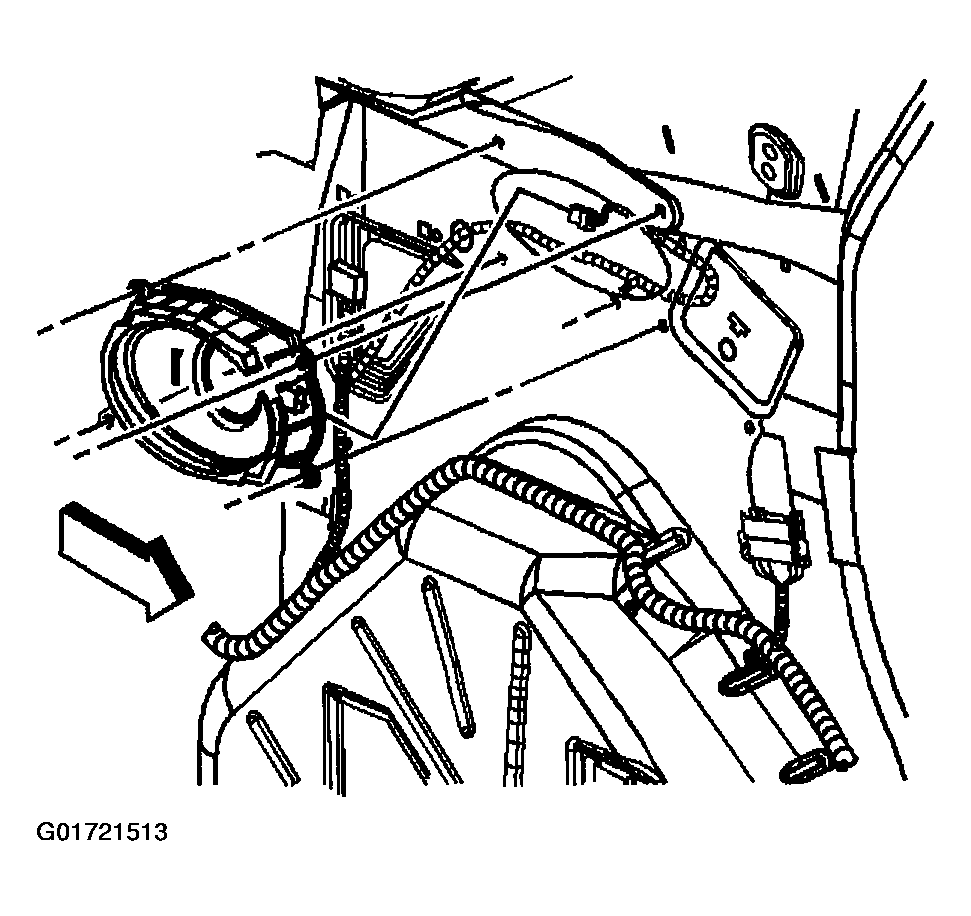

    Fig 1: Removing Rear Speaker (Aztek)
    G01721513Courtesy of GENERAL MOTORS CORP.
