Removal Procedure

  1. Remove the front door trim panel assembly in order to expose the speaker. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK) or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS) .
  2. Remove the speaker screws.
  3. Disconnect the wire harness from the speaker.
  4. Remove the speaker.

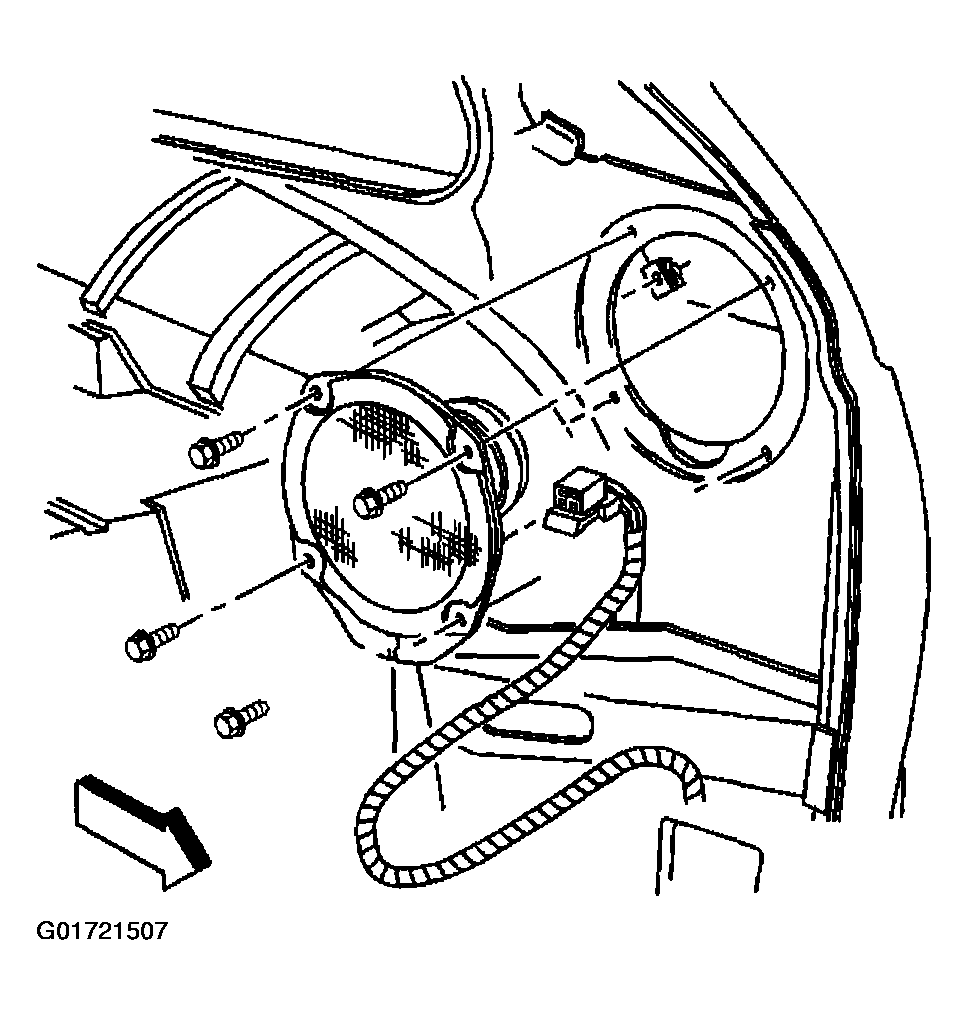

    Fig 1: Removing Front Upper Speaker & Screws
    G01721507Courtesy of GENERAL MOTORS CORP.
