Test Description

The following numbers refer to the steps on the diagnostic table.

  1. 3.   Determines if the OnStar® status LED has the necessary GRN LED signal circuit.
  2. 5.  If the GRN LED signal is shorted to voltage then the OnStar® three button assembly has been damaged. The OnStar® three button assembly has to be replaced.

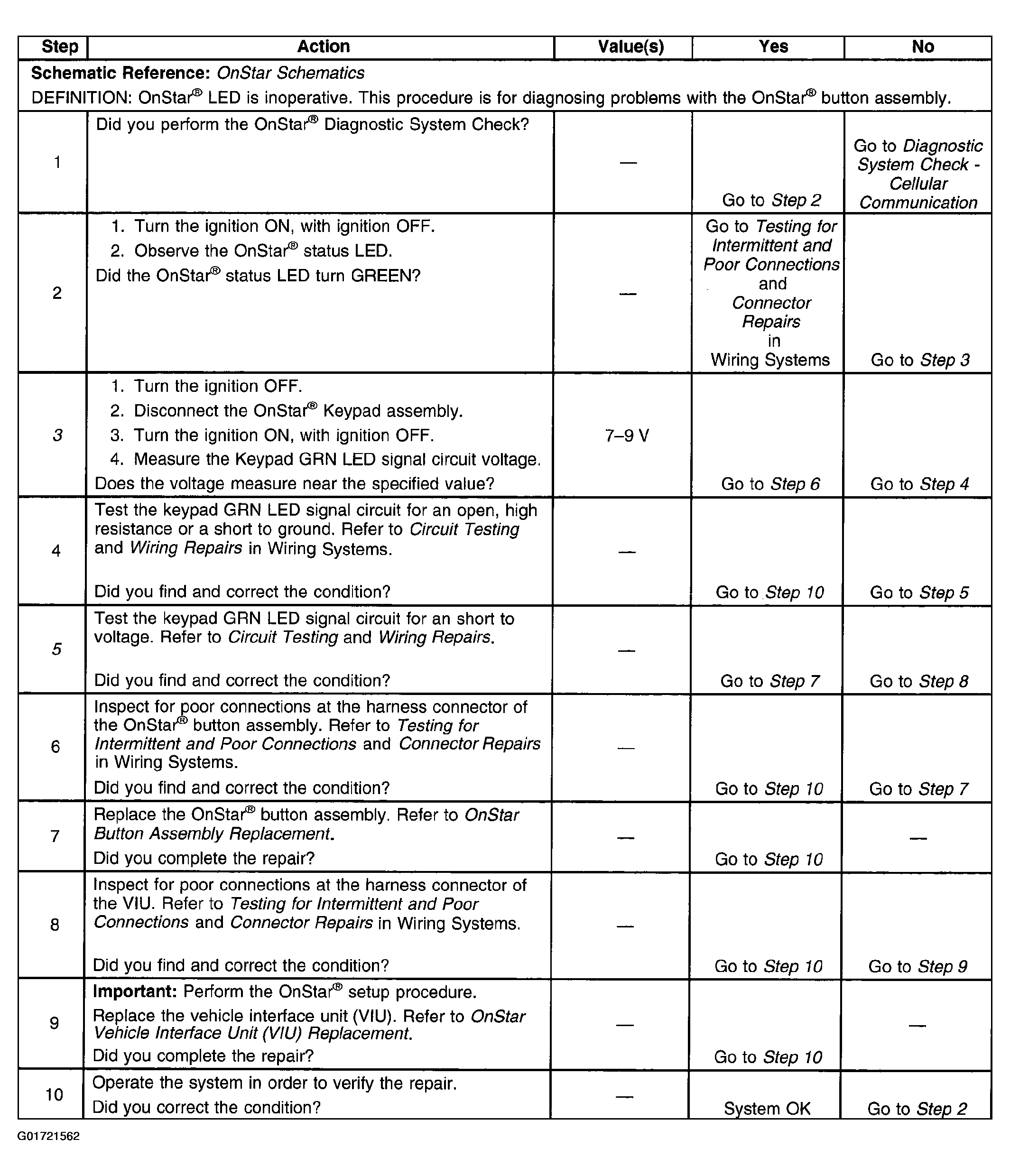

    Fig 1: OnStar Button LED Inoperative
    G01721562Courtesy of GENERAL MOTORS CORP.
