Transfer Case Disassembled View

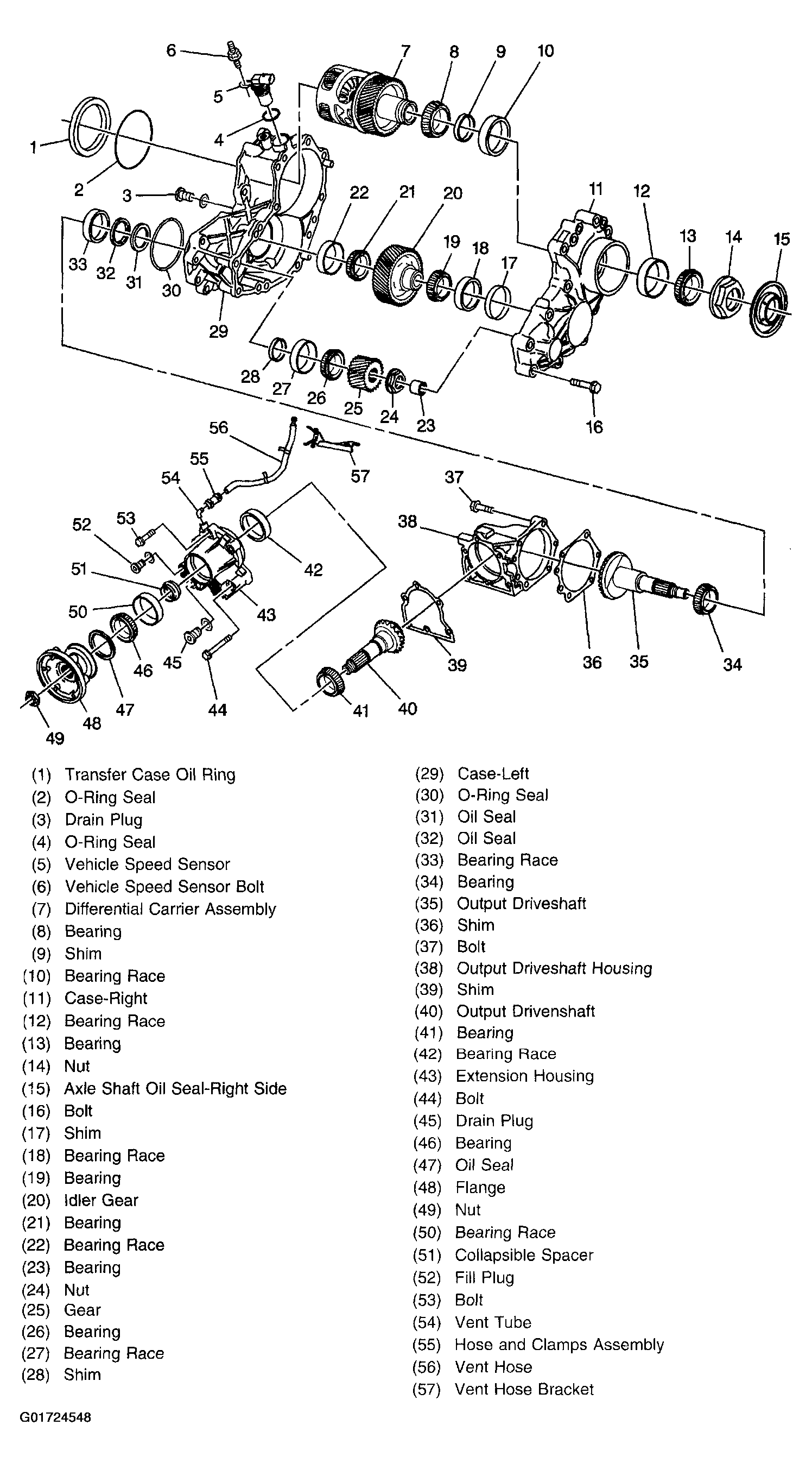

Fig 1: Transfer Case Assembly Disassembled View

G01724548

Courtesy of GENERAL MOTORS CORP.

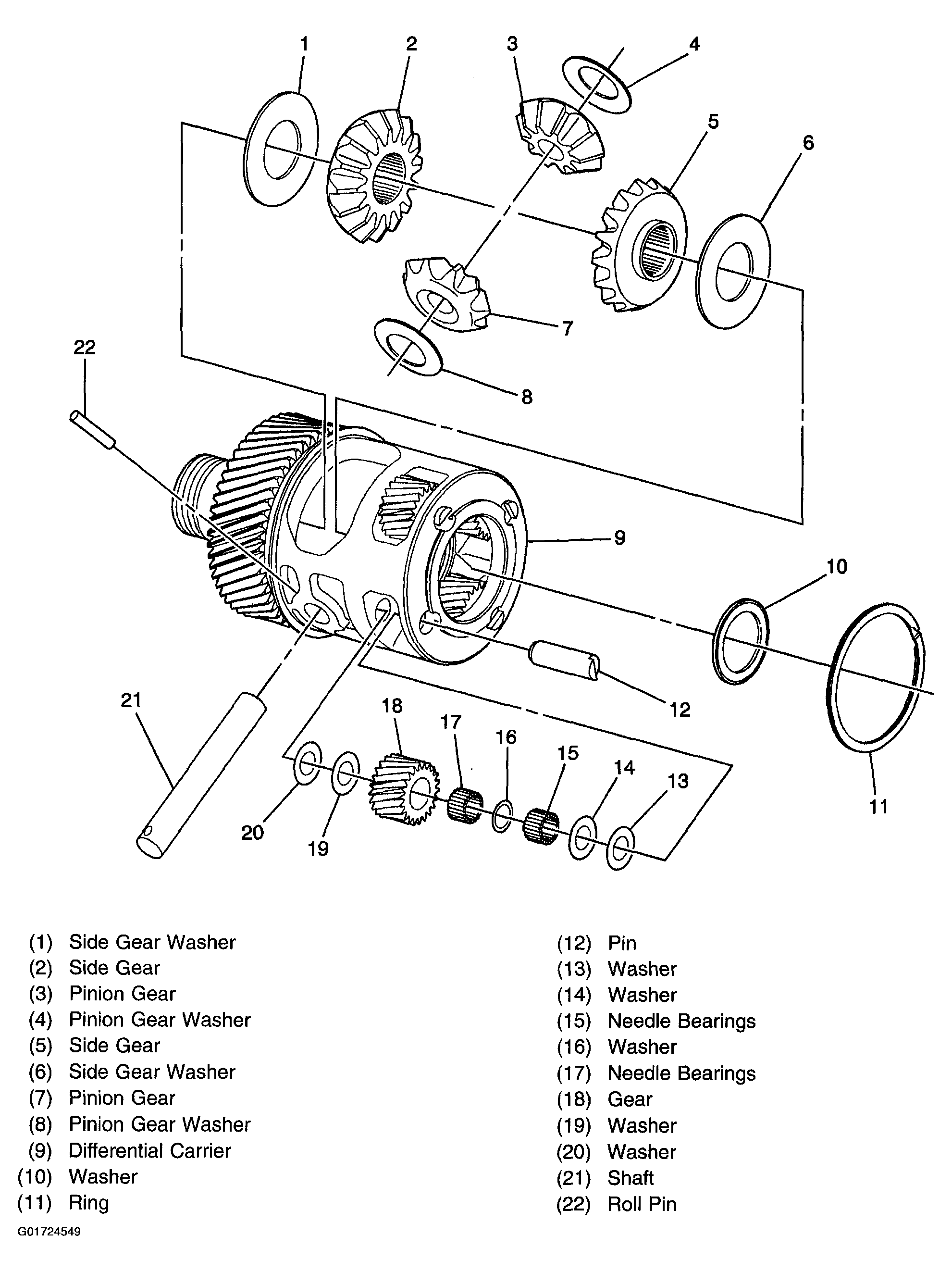

Fig 2: Carrier Assembly Disassembled View

G01724549

Courtesy of GENERAL MOTORS CORP.
