Blazer, Jimmy, SONOMA & S10 Pickup

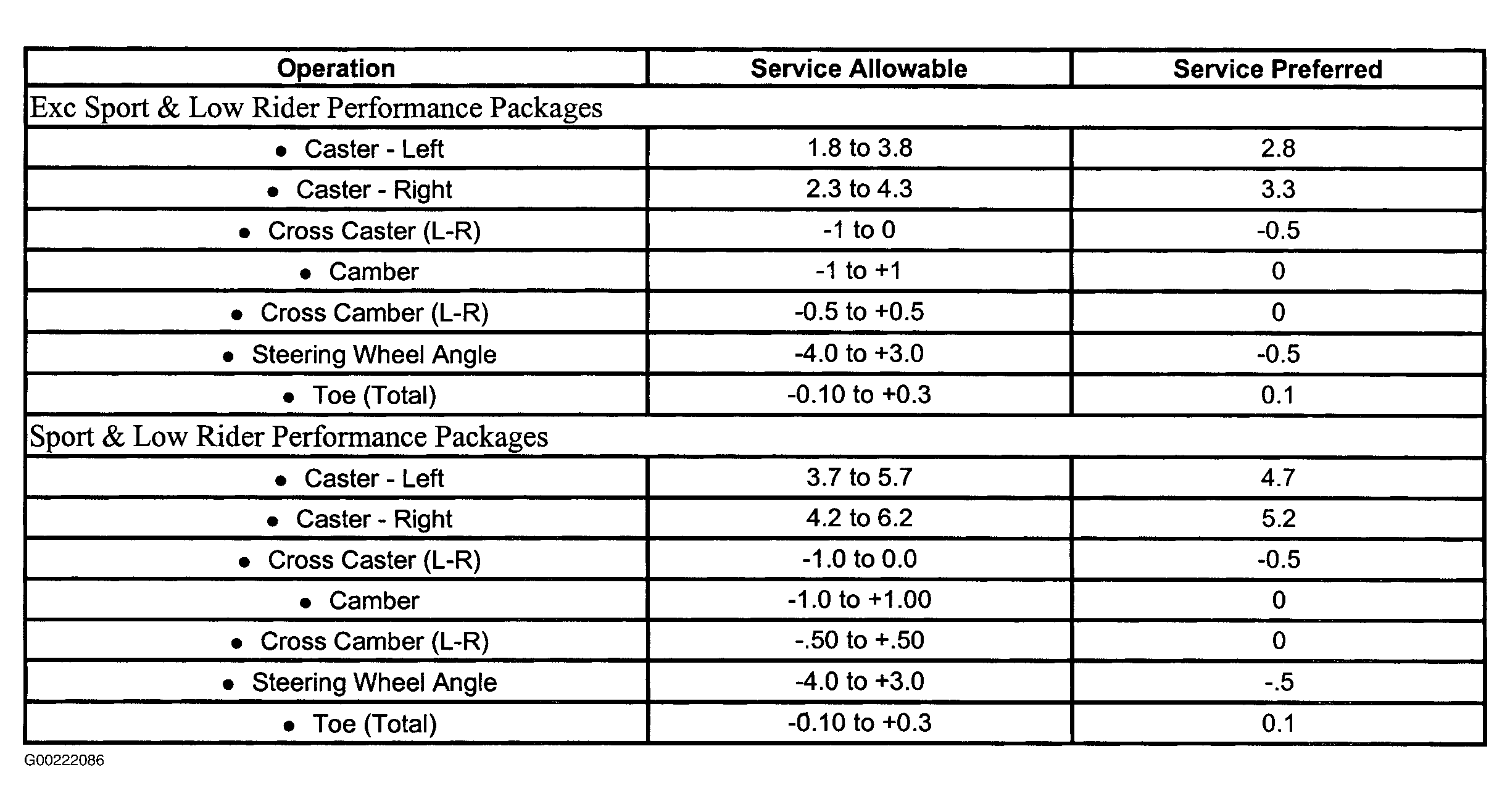

Fig 1: Wheel Alignment Specifications (Blazer, Jimmy, Sonoma & S10 Pickup)

G00222086

Courtesy of GENERAL MOTORS CORP.
