Automatic Level Control Suspension Schematics

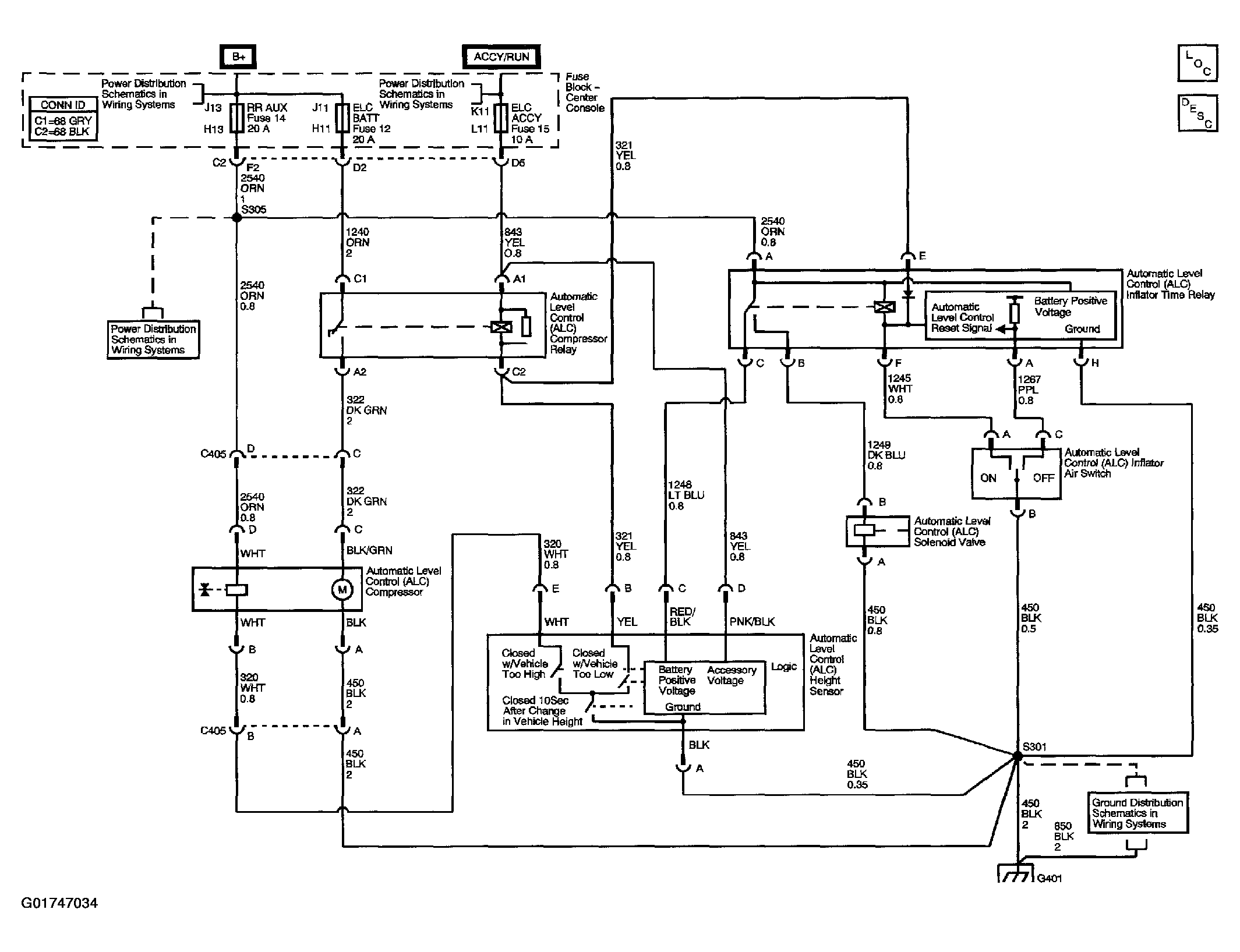

Fig 1: Automatic Level Control Suspension Schematics

G01747034

Courtesy of GENERAL MOTORS CORP.
