Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Disconnect the air tube from the left rear shock absorber.
  3. Disconnect the left rear air tube from the tee connector and remove from the vehicle.
  4. Disconnect the air tube from the right rear shock absorber.
  5. Disconnect the right rear air tube from the tee connector.
  6. Remove the air tube from the routing clips and from the vehicle.

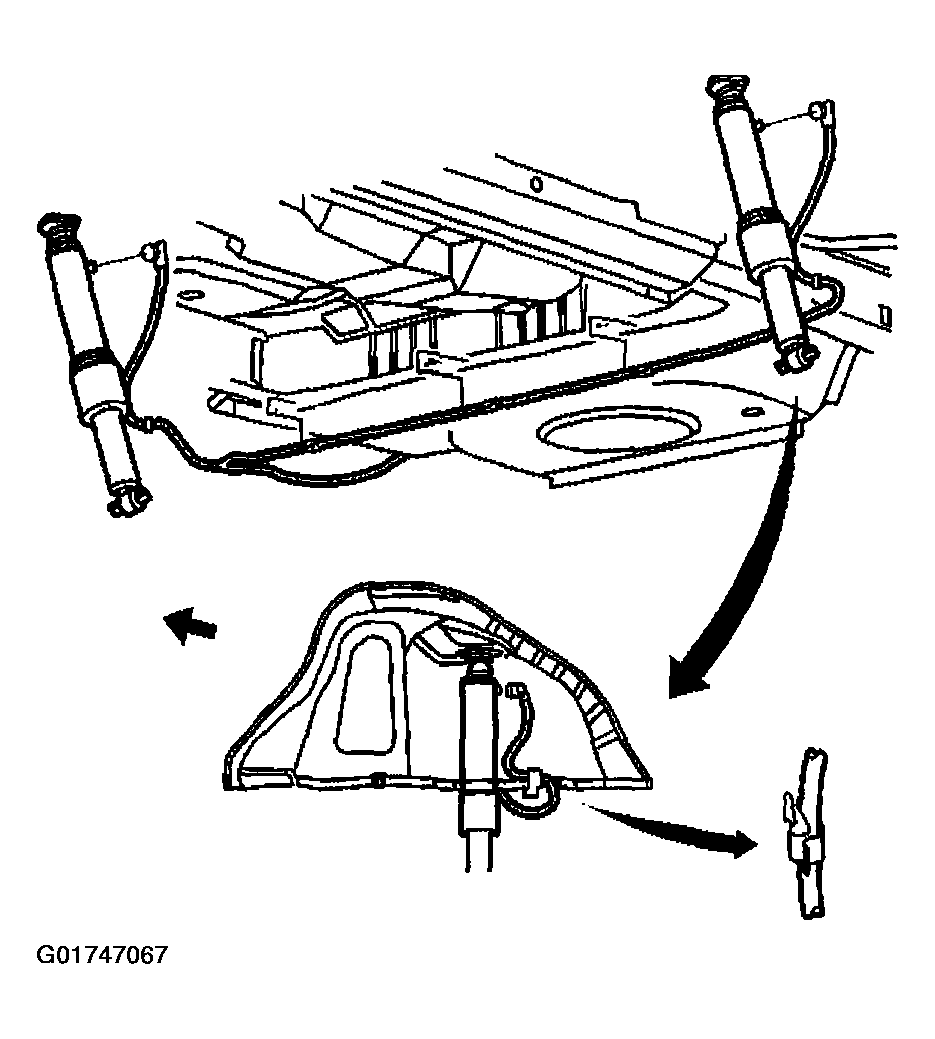

    Fig 1: Disconnecting & Removing Air Tubes
    G01747067Courtesy of GENERAL MOTORS CORP.
