Installation Procedure

  1. Install the right rear air tube on the vehicle in the routing clips.
  2. Connect the right rear air tube to the tee connector.
  3. Connect the right rear air tube to the right rear shock absorber.
  4. Connect the left rear air tube to the tee connector.
  5. Connect the left rear air tube to the right rear shock absorber.

    Important:  Before driving the vehicle, turn the ignition on and wait approximately 45 seconds. This will ensure that the air adjustable shock absorbers are filled with residual pressure.

  6. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

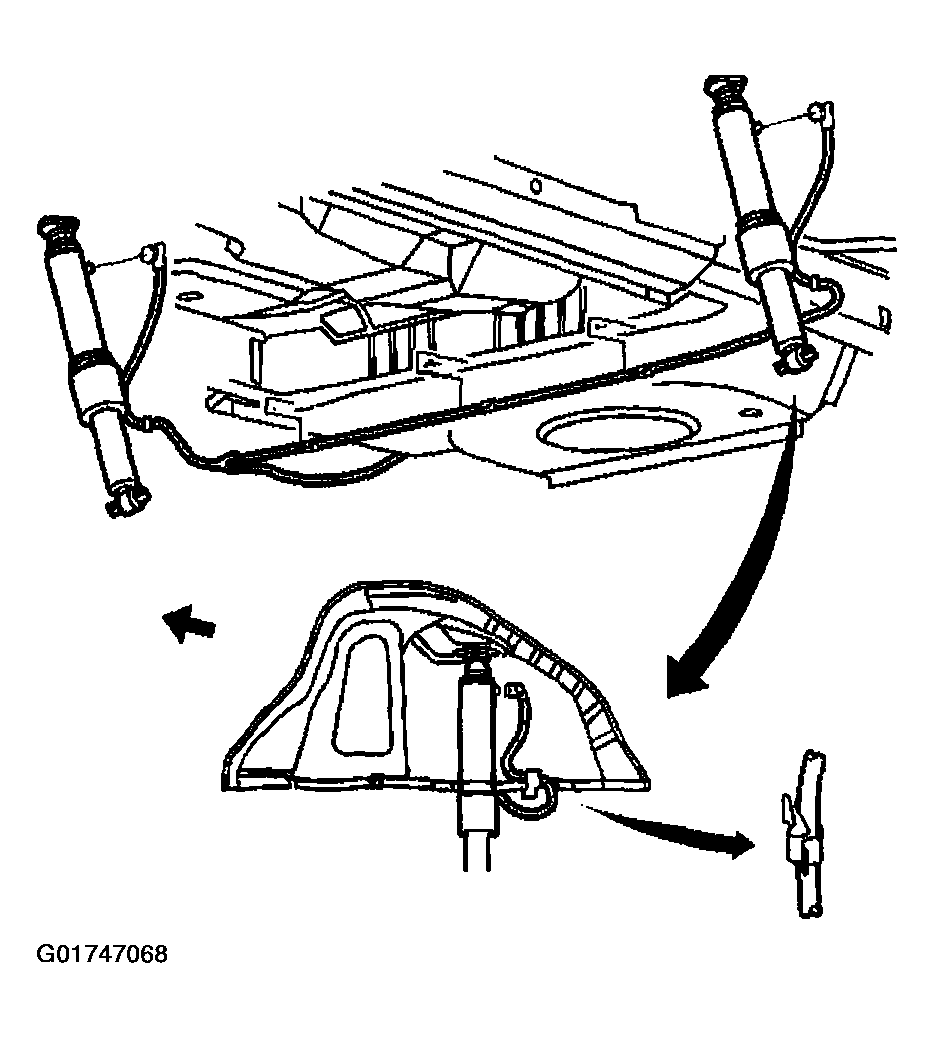

    Fig 1: Connecting & Installing Air Tubes
    G01747068Courtesy of GENERAL MOTORS CORP.
