Automatic Level Control System Leak Test

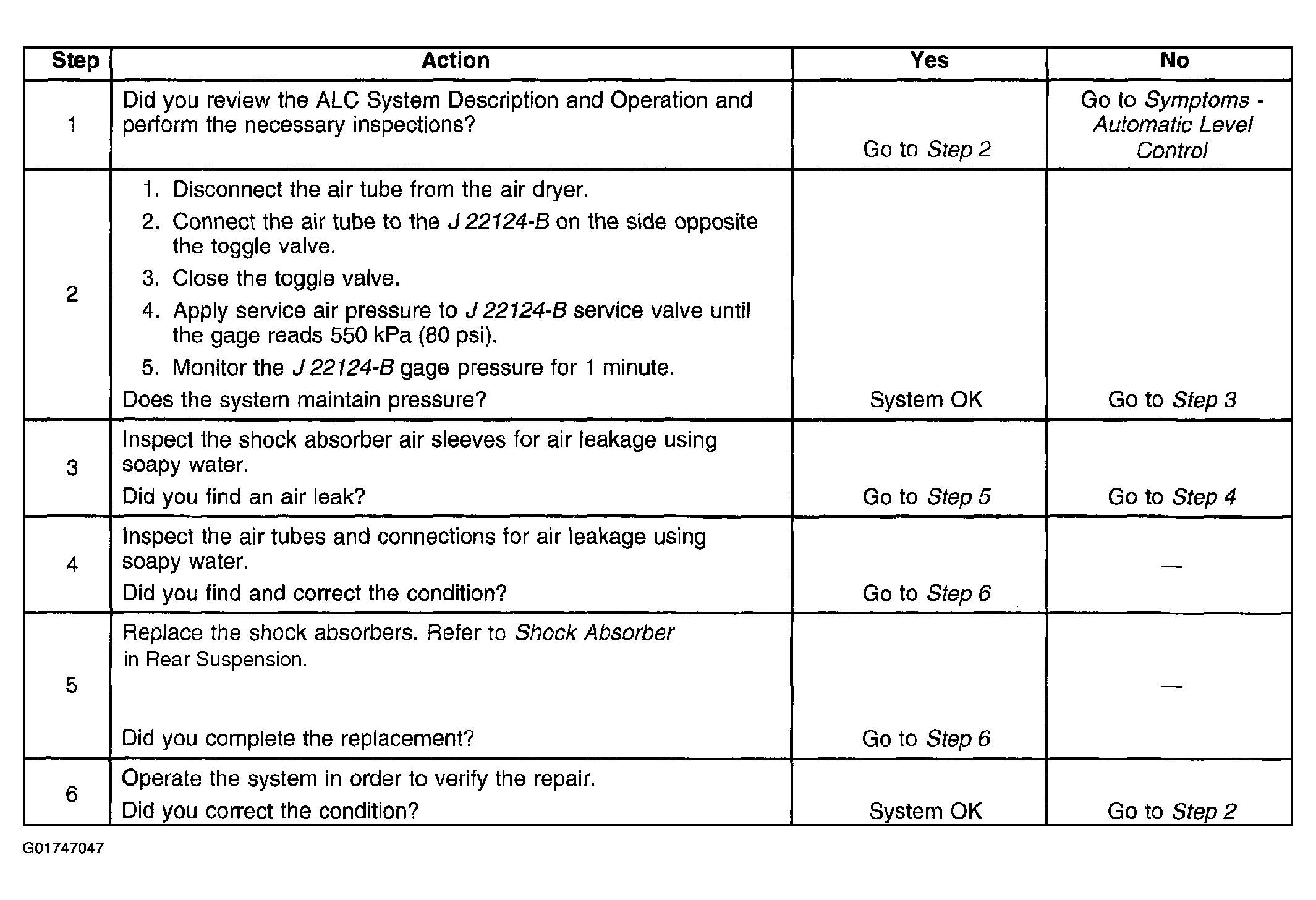

Fig 1: Automatic Level Control System Leak Test

G01747047

Courtesy of GENERAL MOTORS CORP.
