Installation Procedure

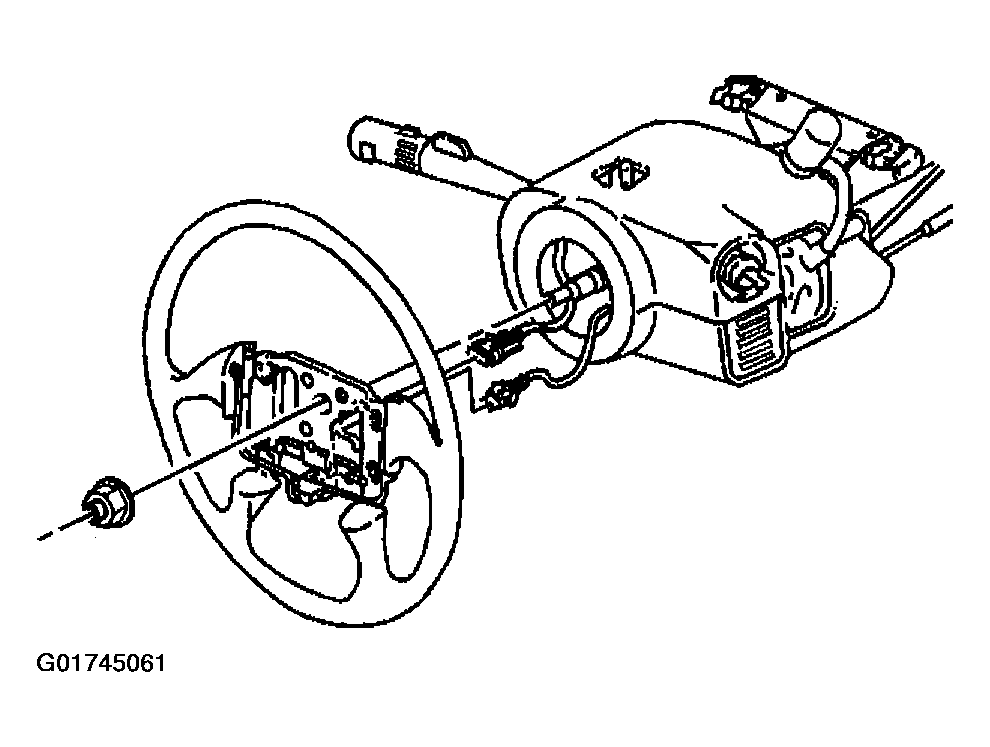

Fig 1: Installing Steering Wheel, Electrical Connector & Nut
G01745061Courtesy of GENERAL MOTORS CORP.
  1. Install the steering wheel controls and the steering wheel control harness to the steering wheel.
  2. Install the wiring through the steering wheel.
  3. Install the steering wheel.
  4. Connect the steering wheel control electrical connector.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the steering wheel nut.

    Tighten

    Tighten the steering nut to 41 N.m (30 lb ft).

  6. Install the inflator module. Refer to STEERING WHEEL or STEERING WHEEL .
  7. Enable the SIR system. Refer to ACTIVATING SYSTEM .
