Installation Procedure

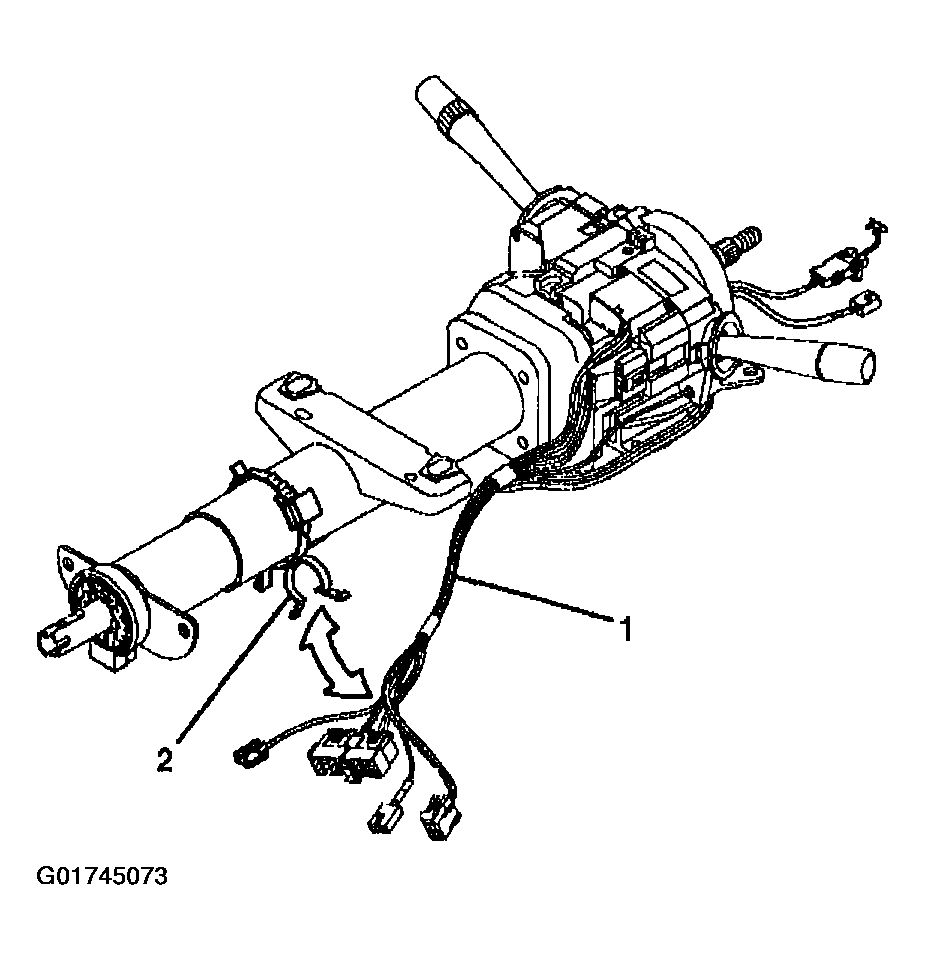

Fig 1: Installing Tie Straps & Connecting Electrical Connectors
G01745073Courtesy of GENERAL MOTORS CORP.
  1. Install the wire harness to the steering column.
  2. Replace all the tie straps (2).
  3. Connect all the electrical connectors.
  4. Install the steering column. Refer to Steering Column Replacement .
