Removal Procedure

  1. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
  2. Remove the steering column upper nut.
  3. Remove the center console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (AZTEK) or CONSOLE REPLACEMENT - FRONT FLOOR (RENDEZVOUS) .
  4. Remove the anchor cable nut from the center console bracket.

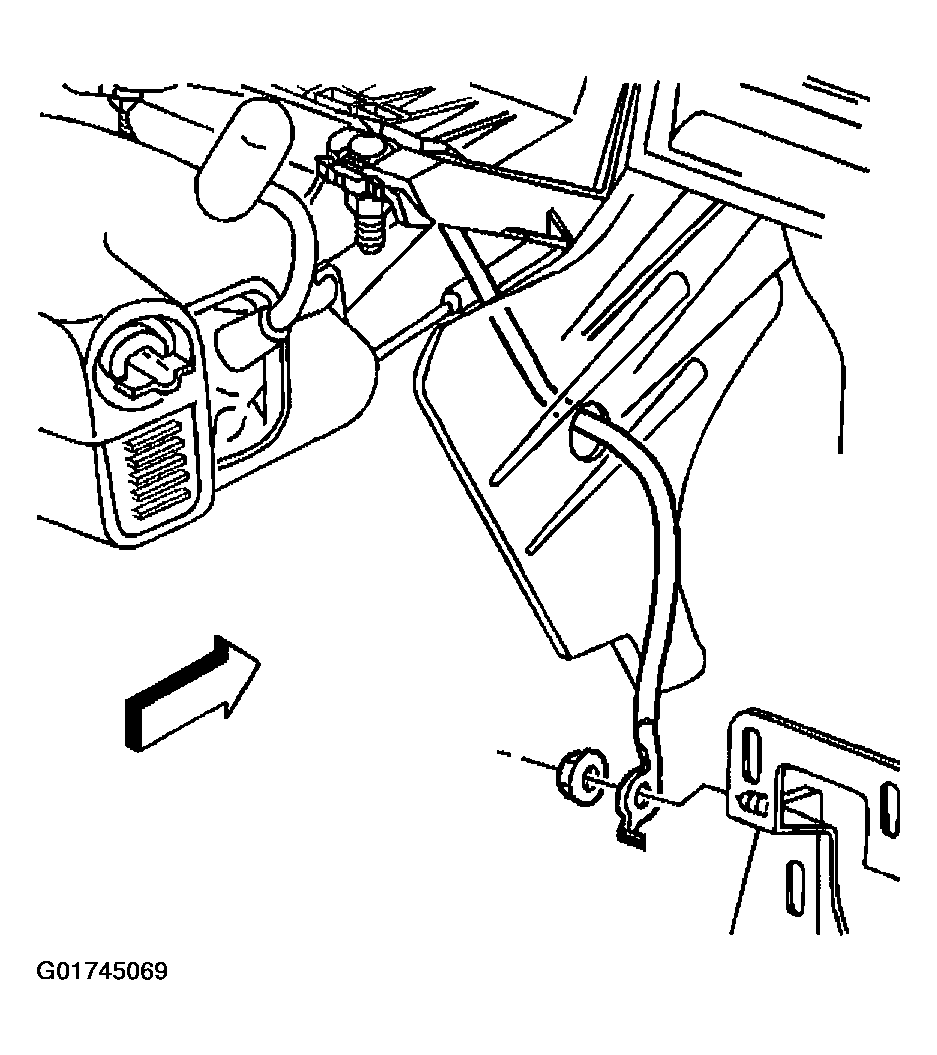

    Fig 1: Removing Anchor Cable & Nut
    G01745069Courtesy of GENERAL MOTORS CORP.
  5. Remove the anchor cable.
