Installation Procedure

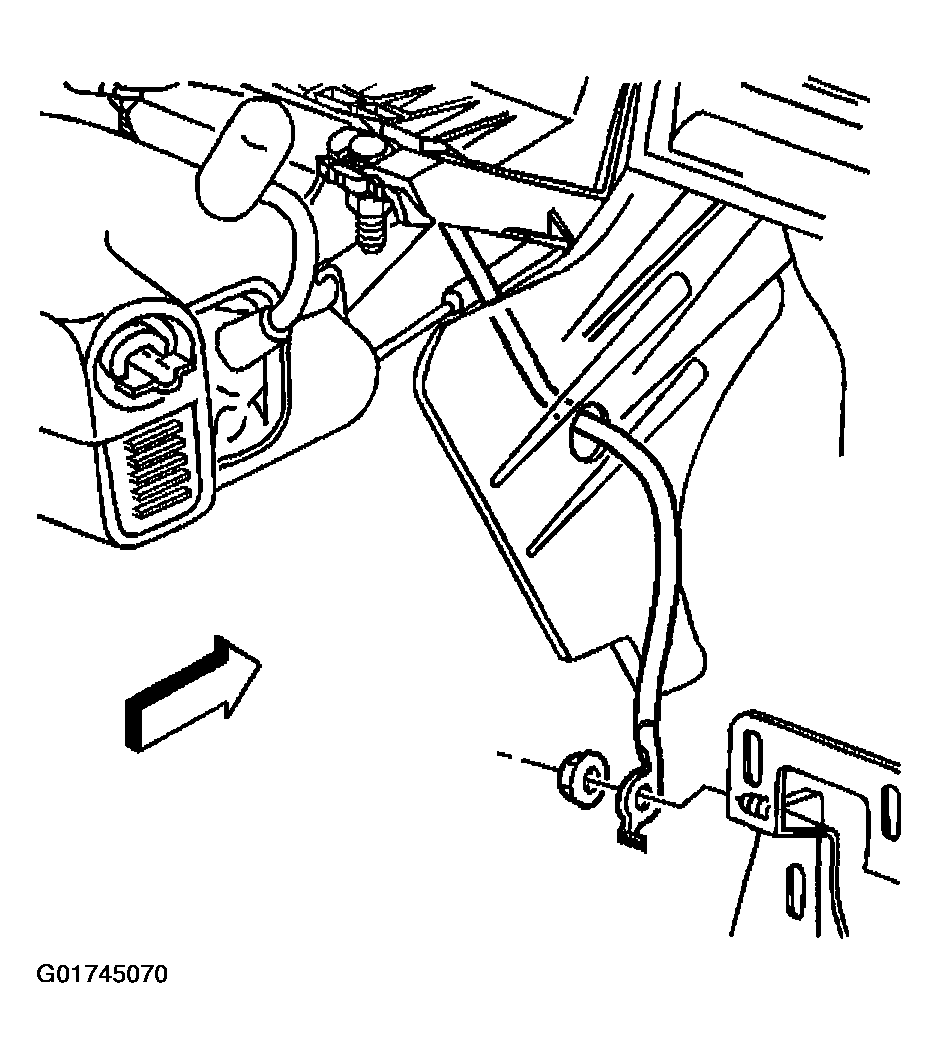

Fig 1: Installing Anchor Cable & Nut
G01745070Courtesy of GENERAL MOTORS CORP.
  1. Properly route the steering column anchor cable.
  2. Install the anchor cable to the center console bracket stud.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the anchor cable nut to the center console bracket stud.

    Tighten

    Tighten the steering column anchor cable nut to 10 N.m (14 lb ft).

  4. Install the steering column anchor cable end to the steering column stud.
  5. Install the steering column nut. Refer to Steering Column Replacement .

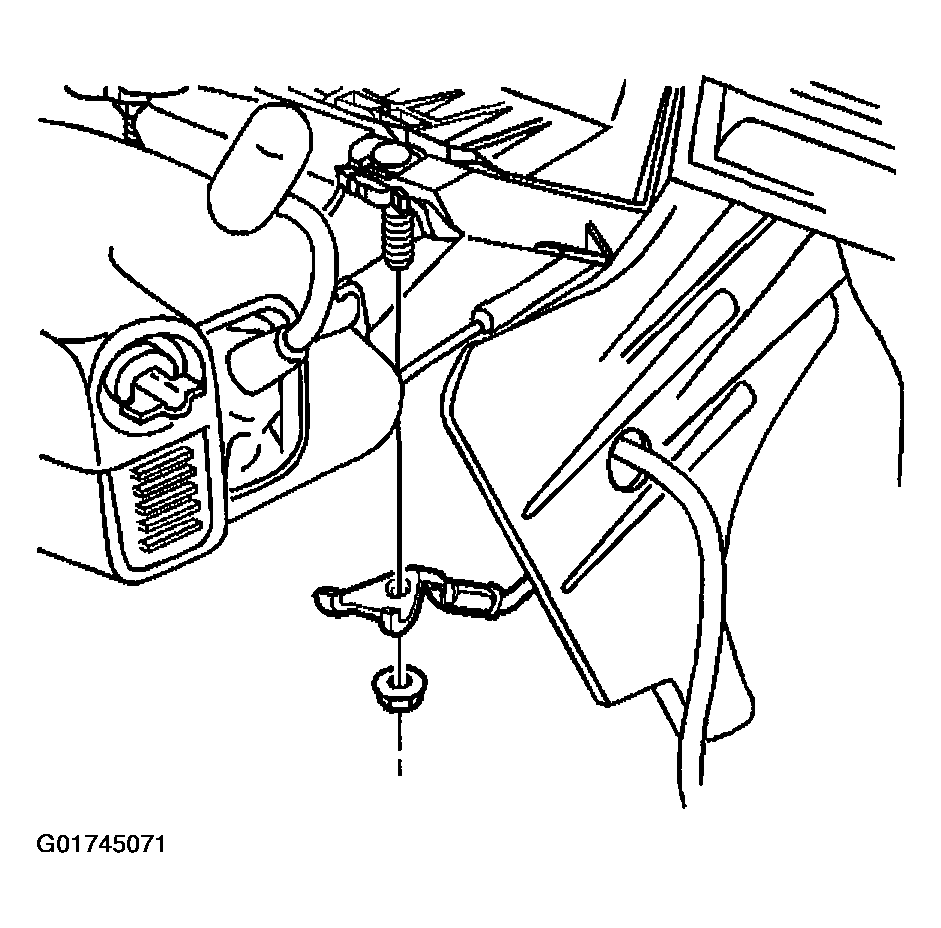

    Fig 2: Installing Steering Column Nut
    G01745071Courtesy of GENERAL MOTORS CORP.
  6. Install the center console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (AZTEK) or CONSOLE REPLACEMENT - FRONT FLOOR (RENDEZVOUS) .
  7. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
