Removal Procedure

  1. Remove the wiring harness from the wiring harness retainer located on the power steering pump reservoir.
  2. Remove the accessory drive belt from the power steering pump pulley. See 3.4L AZTEK & RENDEZVOUS under SERPENTINE BELT ROUTING & ALIGNMENT in ENGINE COOLING.
  3. Remove the power steering pressure hose from the power steering pump.
  4. Remove the power steering return hose from the power steering pump.

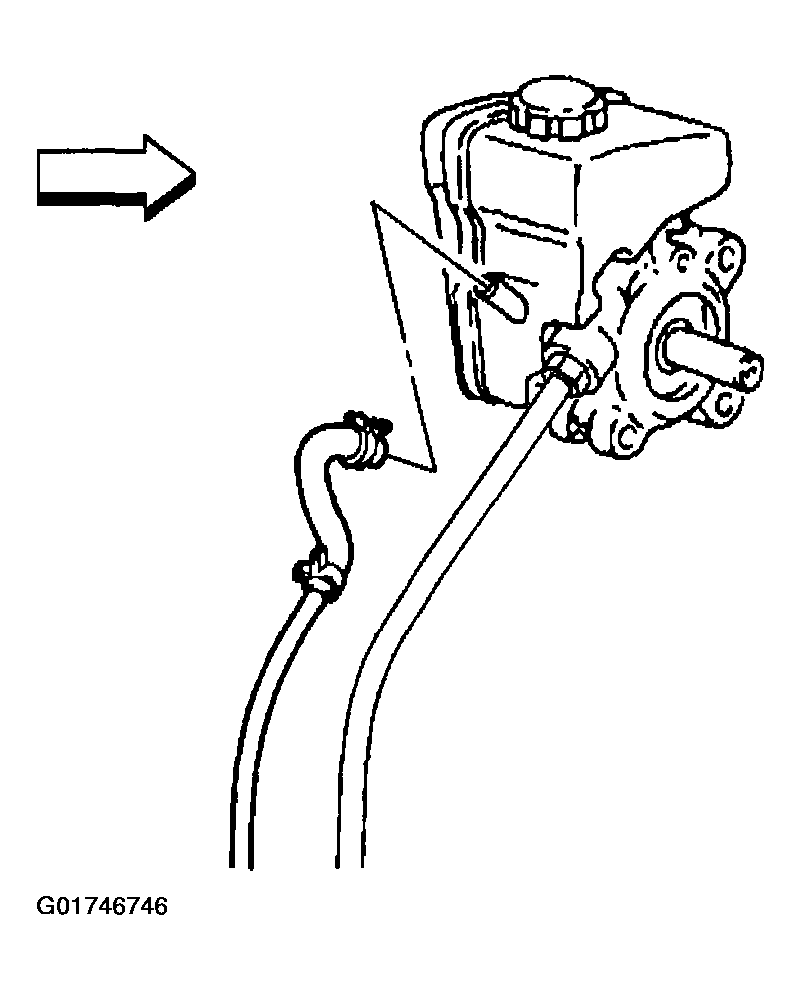

    Fig 1: Removing Power Steering Pump Return Hose
    G01746746Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering pump mounting bolts from the power steering pump.

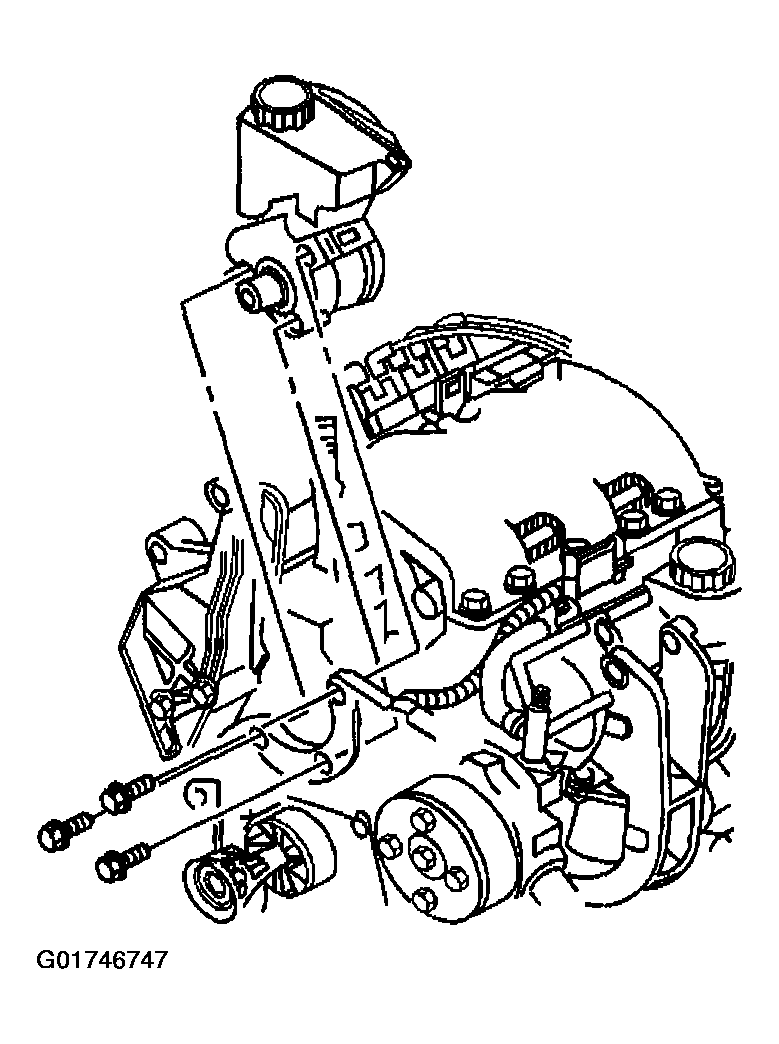

    Fig 2: Removing Power Steering Pump
    G01746747Courtesy of GENERAL MOTORS CORP.
  6. Remove the power steering pump from the vehicle.
  7. Remove the power steering pump pulley from the pump. Refer to POWER STEERING PULLEY REPLACEMENT .
  8. Remove the power steering pump reservoir from the power steering pump. Refer to POWER STEERING RESERVOIR REPLACEMENT - OFF VEHICLE (CB SERIES) .
