Installation Procedure

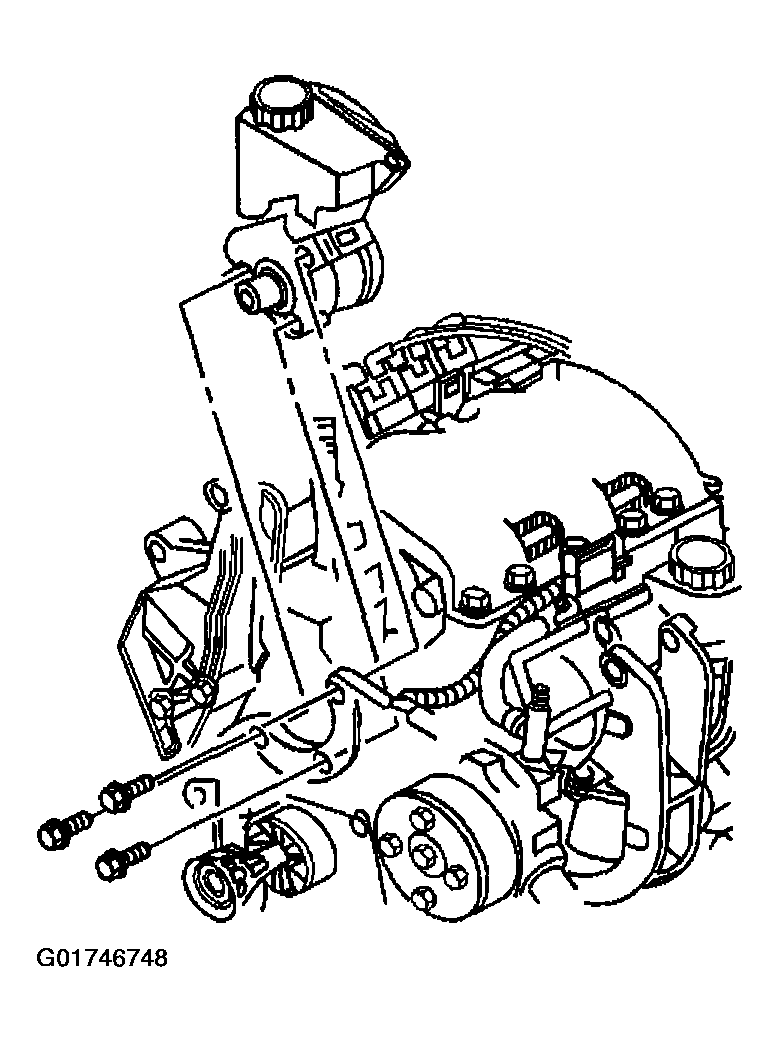

Fig 1: Installing Power Steering Pump
G01746748Courtesy of GENERAL MOTORS CORP.
  1. Install the power steering pump reservoir to the power steering pump. Refer to POWER STEERING RESERVOIR REPLACEMENT - OFF VEHICLE (CB SERIES) .
  2. Install the power steering pump pulley to the power steering pump. Refer to POWER STEERING PULLEY REPLACEMENT .
  3. Position the power steering pump to the vehicle.
  4. Install the power steering pump mounting bolts.

    Tighten

    Tighten the power steering pump mounting bolts to 34 N.m (25 ft. lbs.).

  5. Install the wiring harness to the wiring harness retainer located on the power steering pump reservoir.

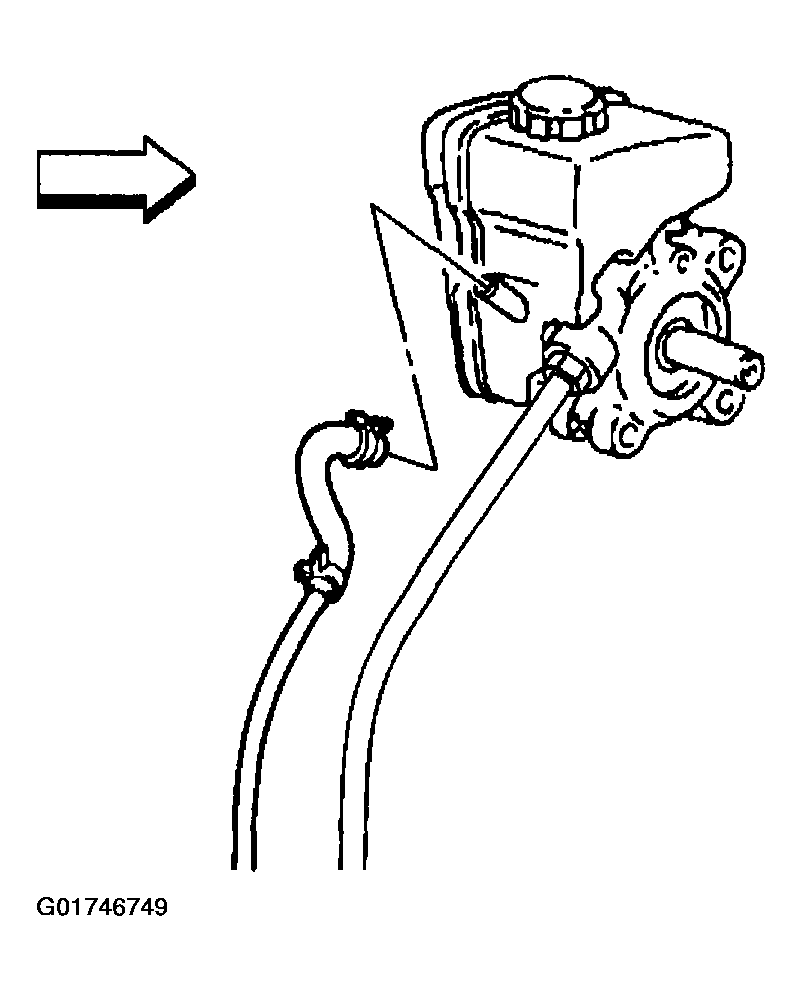

    Fig 2: Installing Power Steering Pump Return Hose
    G01746749Courtesy of GENERAL MOTORS CORP.
  6. Install the power steering return hose to the power steering pump.
  7. Install the power steering pressure hose to the power steering pump.

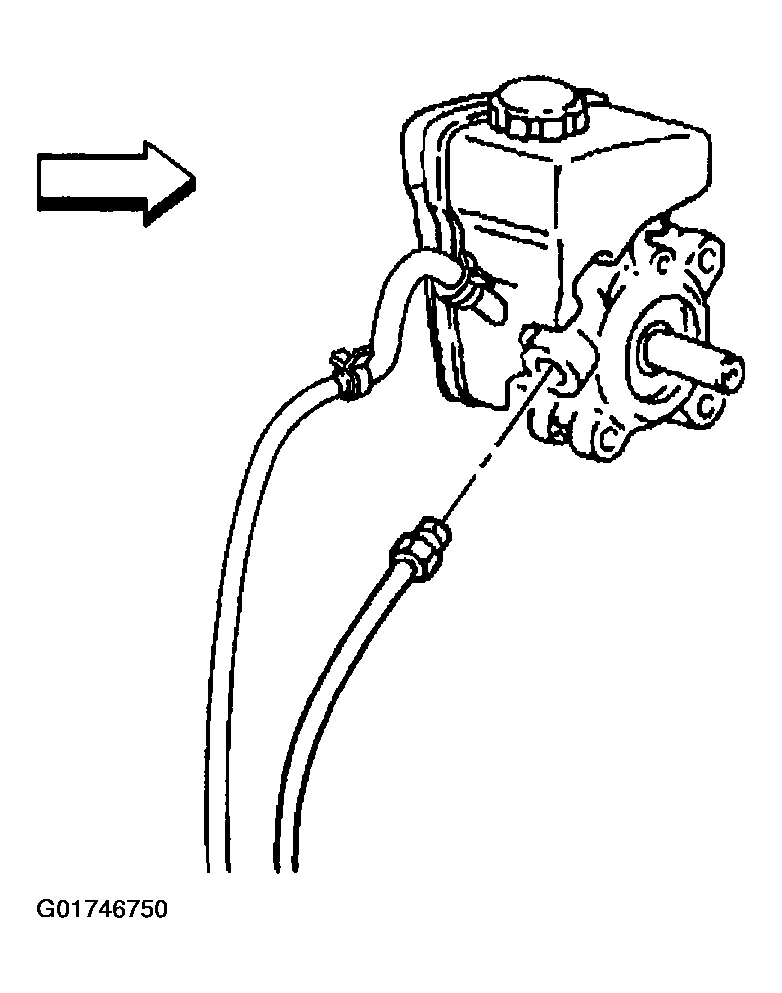

    Fig 3: Installing Power Steering Pump Pressure Hose
    G01746750Courtesy of GENERAL MOTORS CORP.
  8. Install the accessory drive belt. Refer to 3.4L AZTEK & RENDEZVOUS under SERPENTINE BELT ROUTING & ALIGNMENT in ENGINE COOLING.
  9. Flush the power steering system. Refer to FLUSHING THE POWER STEERING SYSTEM .
  10. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .

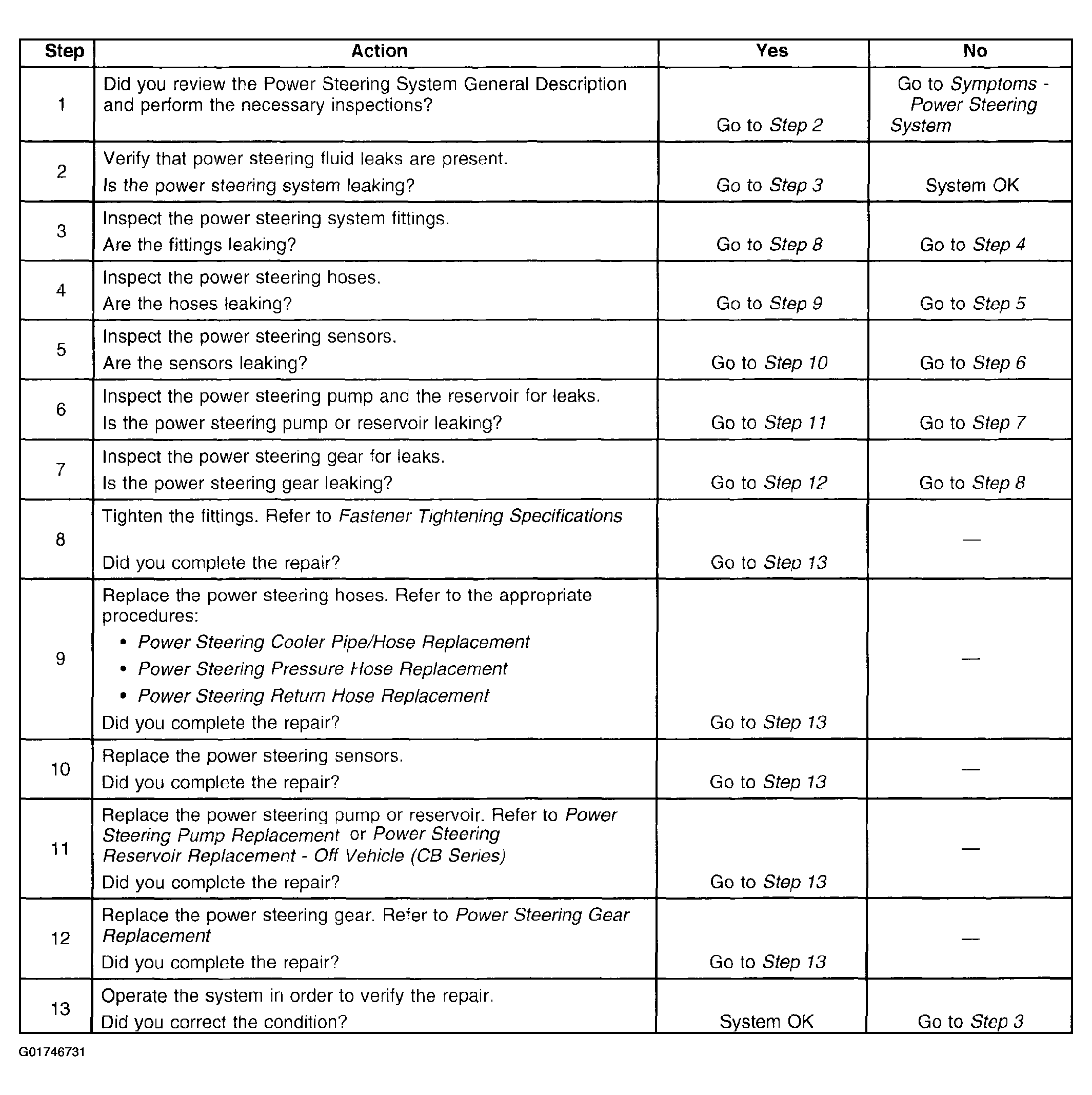

  11. Inspect the system for leaks. Refer to Figure.
