Stoplamp Switch - C2 Connector End View

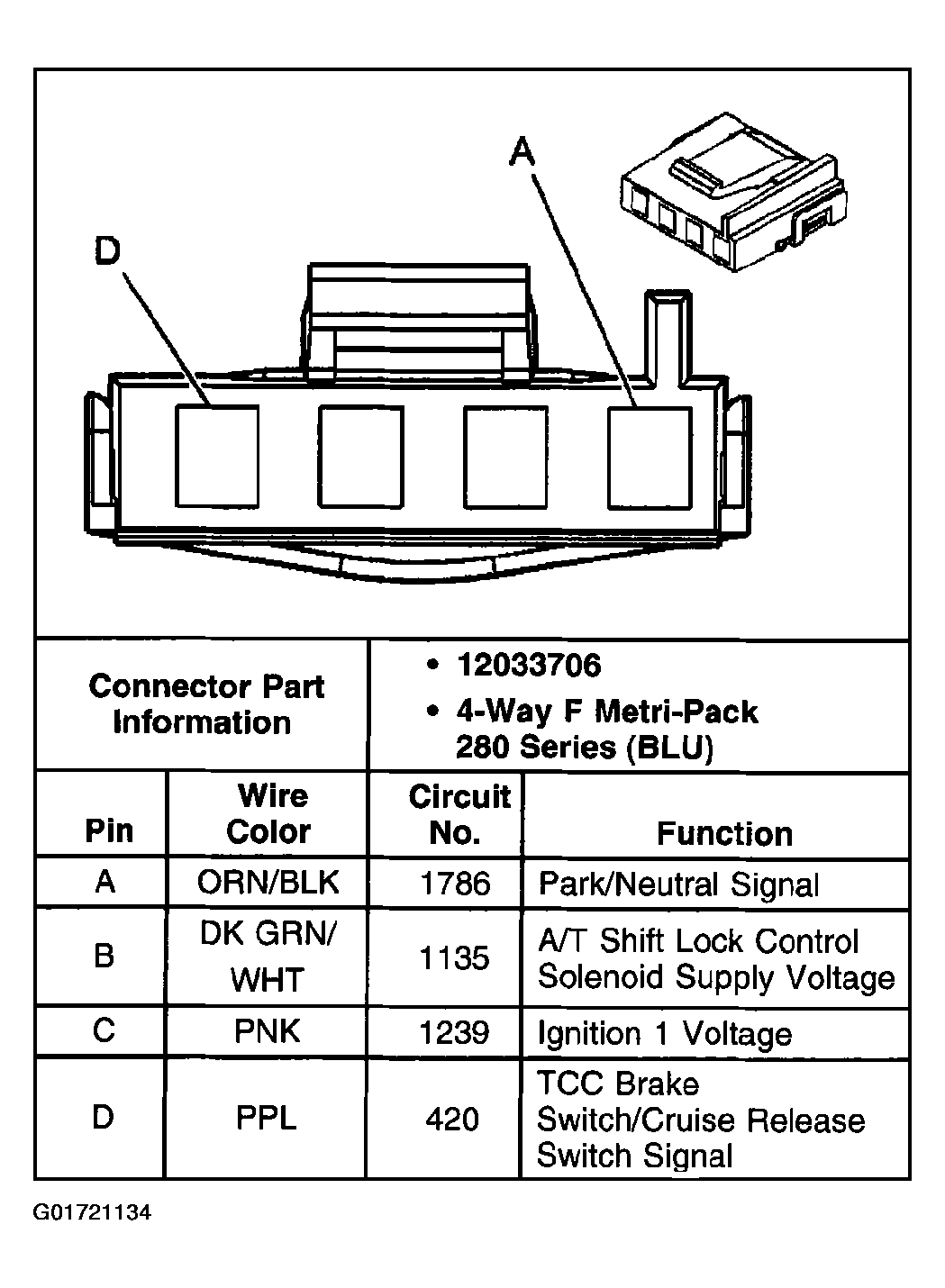

Fig 1: Stoplamp Switch - C2 Connector End View

G01721134

Courtesy of GENERAL MOTORS CORP.
