Steering Wheel Controls Connector End View - Right

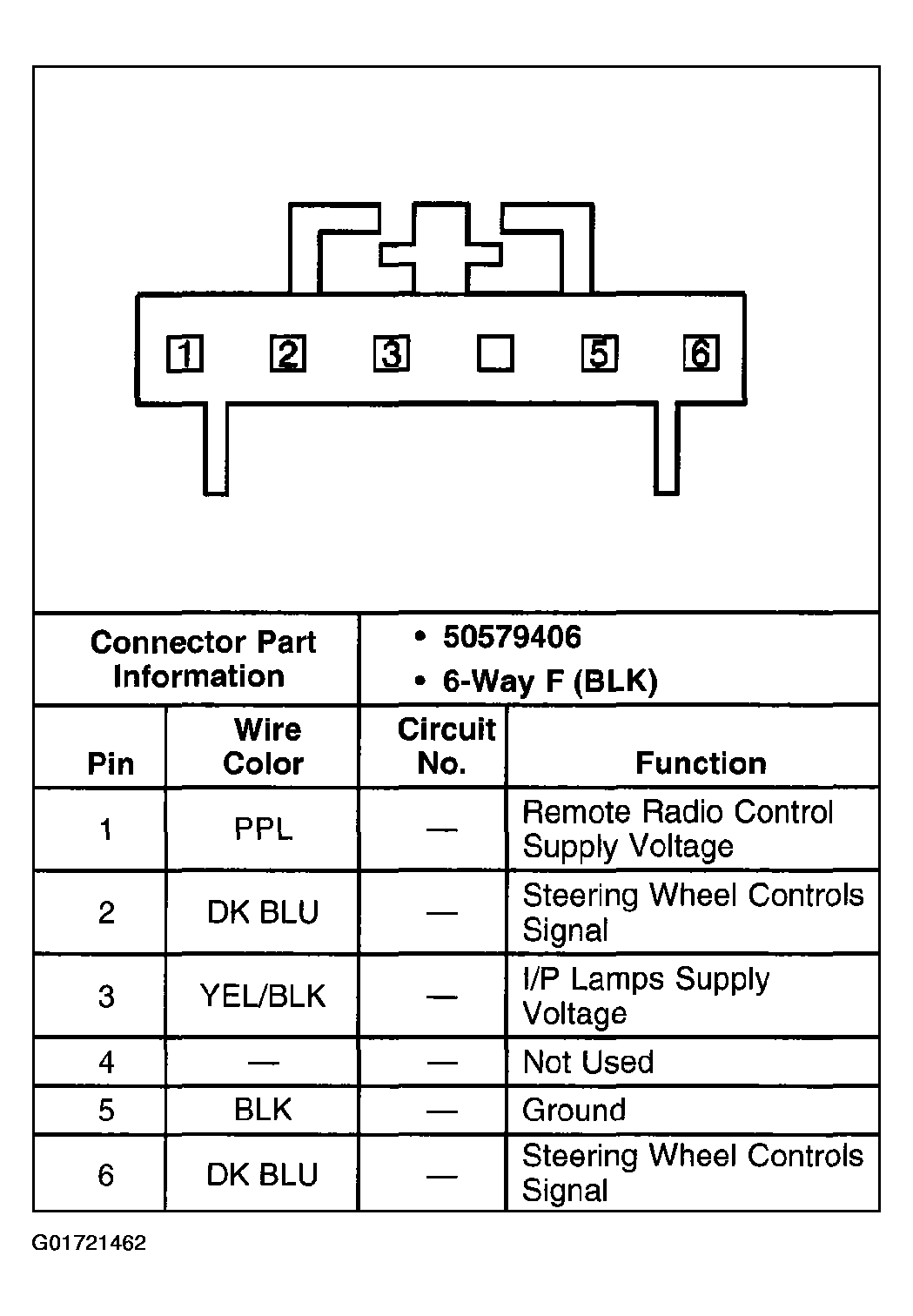

Fig 1: Steering Wheel Controls - Right

G01721462

Courtesy of GENERAL MOTORS CORP.
