Home >> Pontiac >> 2002 >> Aztek AWD >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector End Views >> Steering Wheel Controls Connector End View - Left

Steering Wheel Controls Connector End View - Left

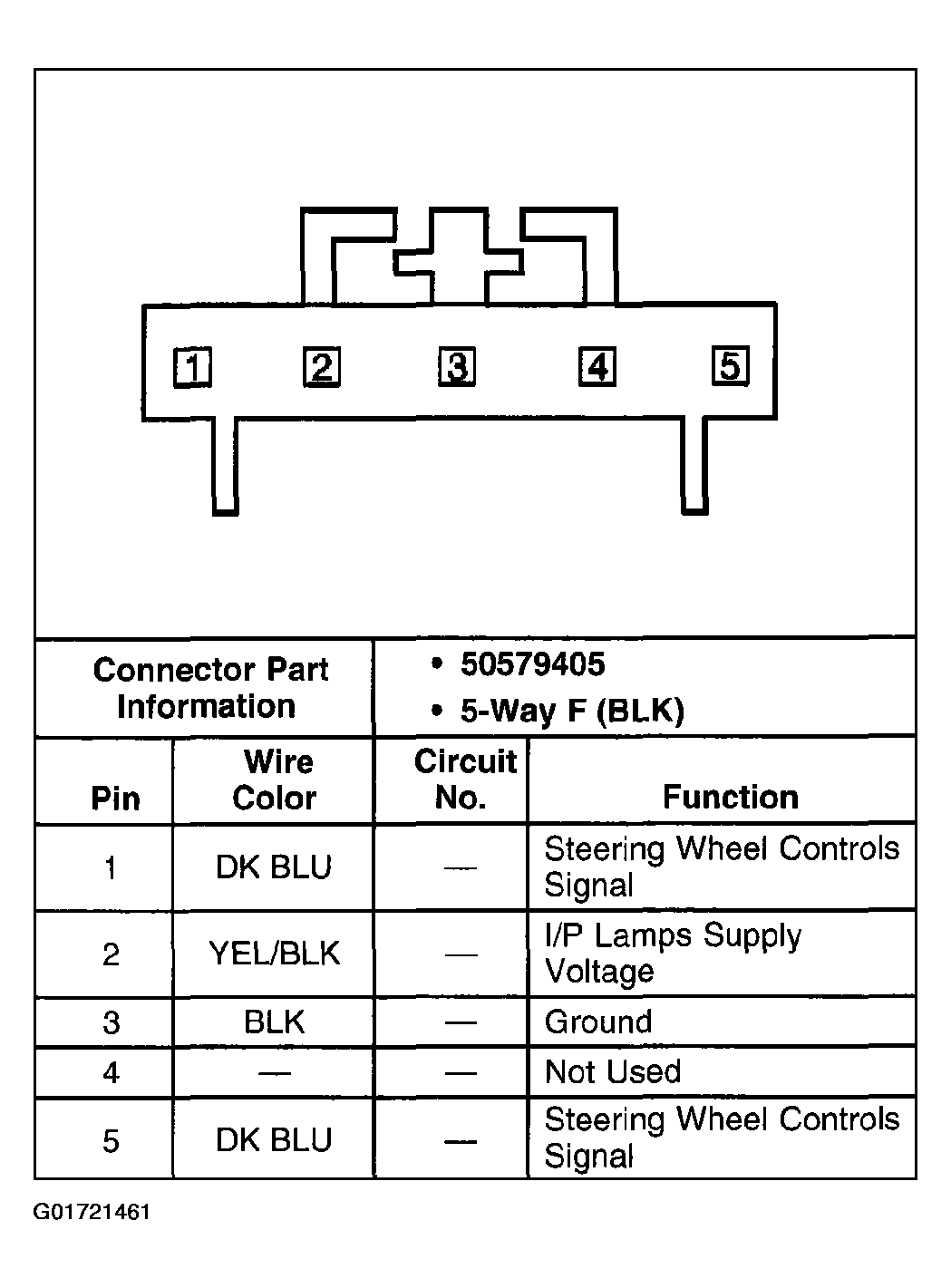

Fig 1: Steering Wheel Controls - Left

G01721461

Courtesy of GENERAL MOTORS CORP.
