Lock Cylinder Switch - Endgate Connector End View

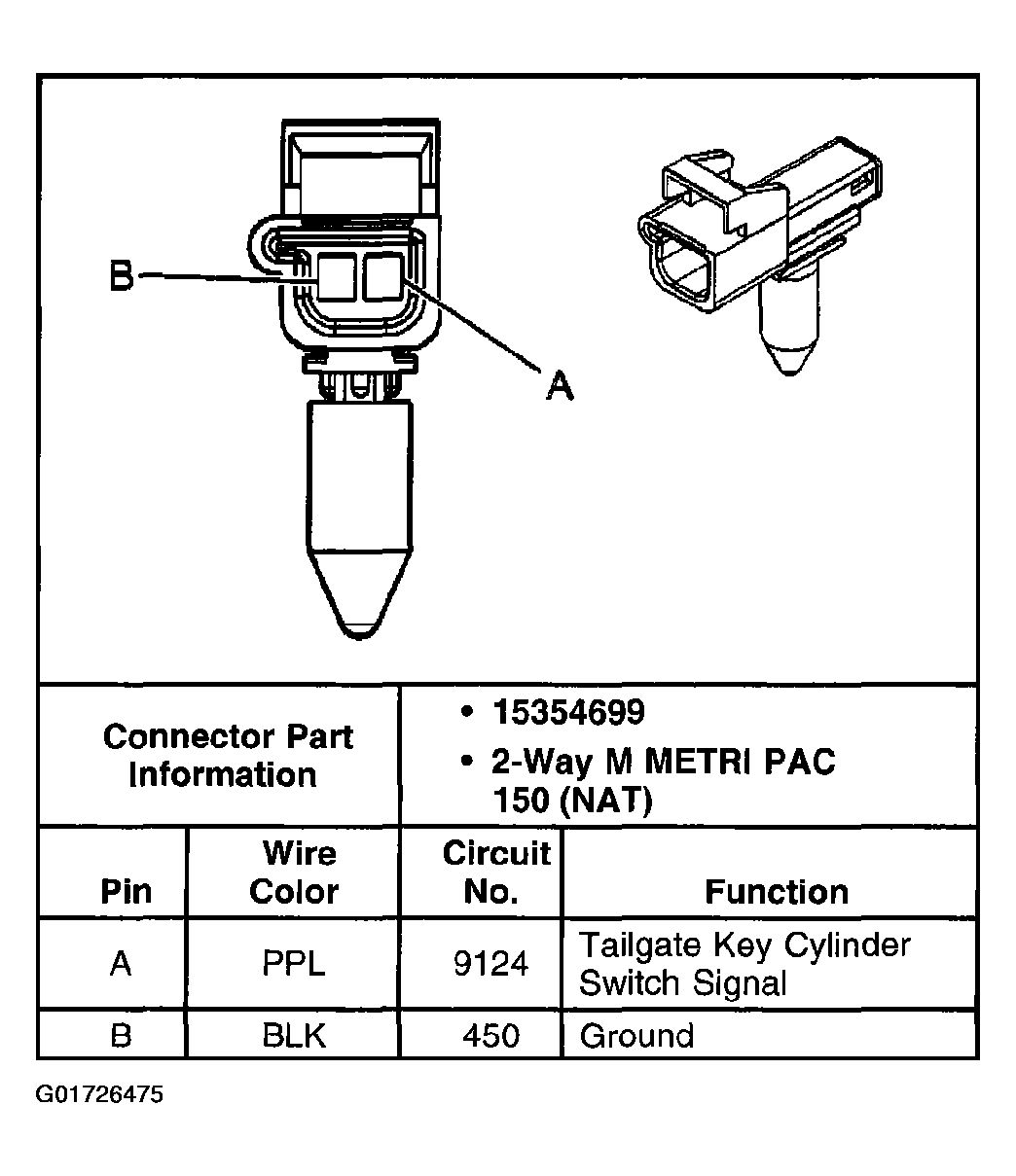

Fig 1: Lock Cylinder Switch - Endgate Connector End View

G01726475

Courtesy of GENERAL MOTORS CORP.
