Ignition Lock Solenoid Connector End View

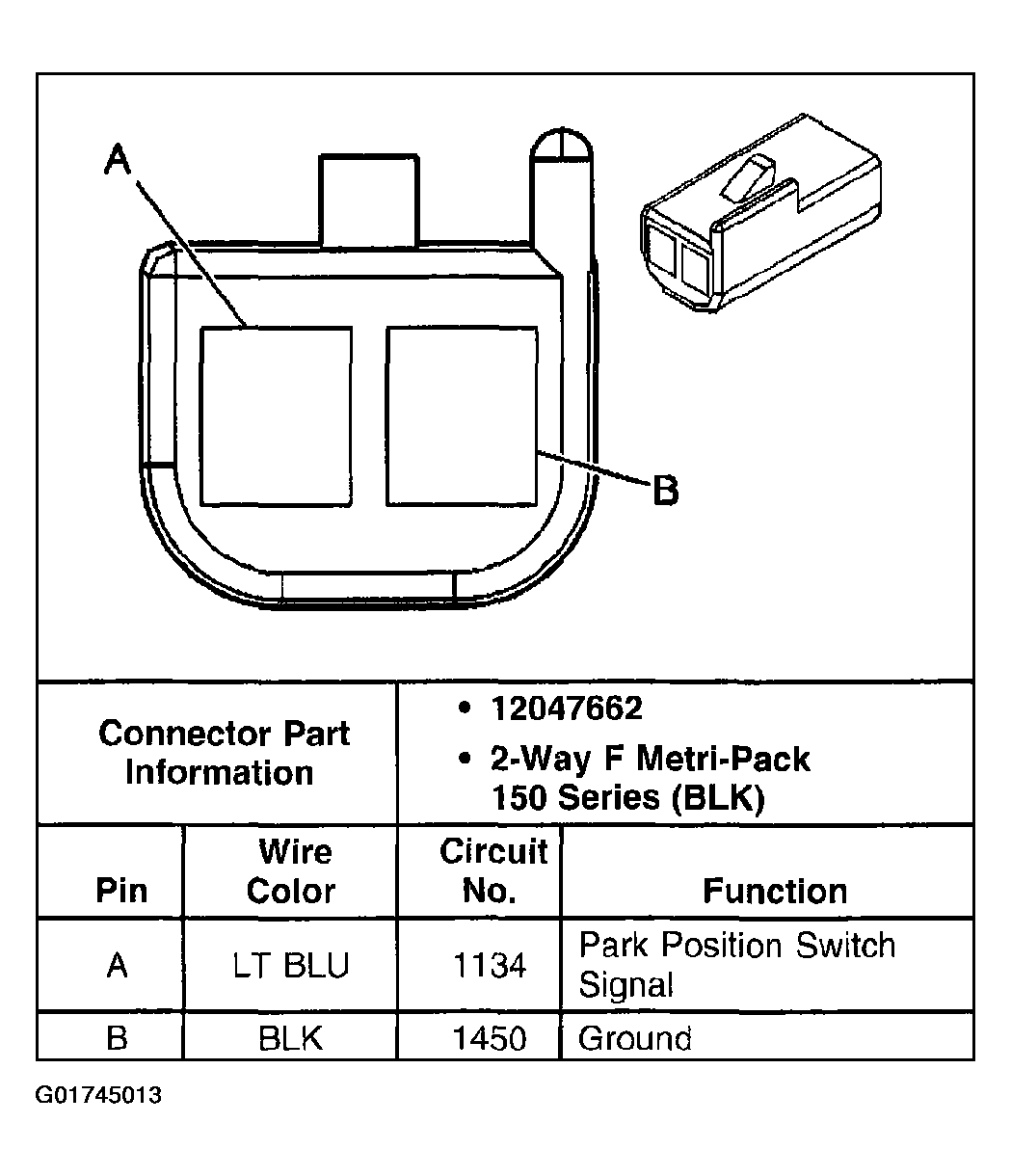

Fig 1: Ignition Lock Solenoid

G01745013

Courtesy of GENERAL MOTORS CORP.
